პროდუქტის კოდი: 9561
ბრენდი: ZKTeco
G5
მახასიათებლები:
(ყველას ნახვა)
Alarm
1
Auxiliary input
1
Bell
1
Camera
2MP Binocular Camera
Card Capacity
100,000
Card Reading Distance
1cm–5cm

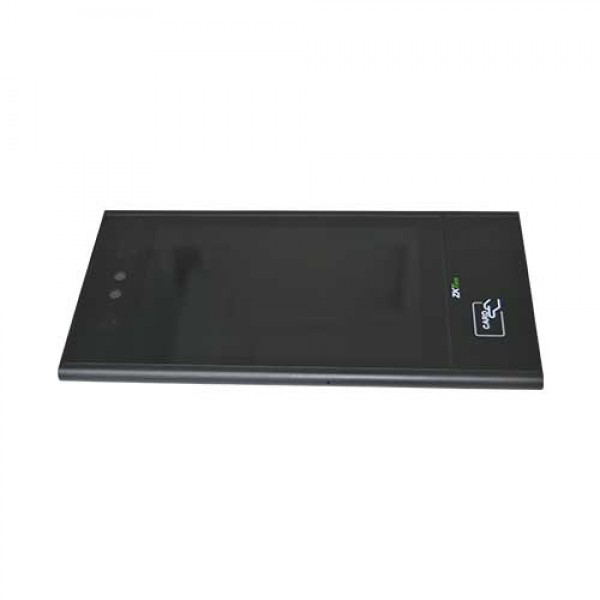

G5 is an multi-biometric access control terminal designed for outdoor use, the product supports various biometrics authentication, including facial recognition, fingerprint verification, multi-tech cards detection and password. Also with an 8 inch TFT color touch screen with narrow bezel design and IP66 waterproof & dustproof and IK04 vandal proof protection level.
General
Alarm
1
Auxiliary input
1
Bell
1
Camera
2MP Binocular Camera
Card Capacity
100,000
Card Reading Distance
1cm–5cm
Card Type
Dual-frequency (125kHz and 13.56MHz)card module (standard)Multi-tech Card Module (optional)ISO14443A / B & ISO15693 & HID Prox
Certifications
CE, FCC, ISO9001, ISO14001, IP66, IK04
Communication
TCP / IP, Wi-Fi, Bluetooth, USB
Ethernet
RJ45, 1000M
Exit Button
1
Face Recognition Range
Face-camera distance: Range 0.3 m to 1.2 m; Human height: 0.9 m to 2.4 m
Face Recognition Time
< 1s
Face Templates Capacity
100,000
Face Verification Accuracy
≥99%
Facial Recognition Algorithm
ZKFace 5.6.2
Facial Recognition FAR
0.01%
Facial Recognition FRR
1%
Facial Recognition Method
1:1, 1:N
Fingerprint Capacity (optional)
30,000
Fingerprint Comparison Time
≤0.5s
Fingerprint Recognition Algorithm
ZKFinger 10.0
Fingerprint Sensor Type(optional)
Optical
Fingerprint Verification Method
1:1, 1:N
Gross Weight
1.2kg
Installation Method
Wall-mounted or Turnstile top-mount bracket
Language
English, Korean, Latin American, Indonesian, Vietnamese, traditional Chinese, Portuguese,Spanish, Farsi, Japanese, Russian and Thai
Lock
1
Operating Environment
Outdoor
Operating Humidity
<90%RH
Operation System
Android 9.0
Power Adapter
12V 3A
Power out
1, 12V
Protective level
IP66 without Fingerprint / QR Code Reader IP65 with Fingerprint / QR Code Reader IK04
QR Code (optional)
Dynamic QR codes on the ZKBio CVSecurity mobile application QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects
Record Capacity
1,000,000
Reset Button
1
RS232
1
RS485
1
Screen Type
Capacitive Touch Screen
SDK
Android LCDP, PUSH SDK
Standard Firmware Functions
Push, Schedule Bell, Automatic Status Switch, Record Query, Access Levels, Groups, Holidays, DST, Duress Mode (Password & Fingerprint), Anti-Passback, Customization of Wallpaper & Screen Saver,Tamper Alarm
Storage
2GB LPDDR3 16GB eMMC
USB
1 USB 3.0, 1 USB 2.0, 1 Micro USB
User Capacity
100,000
Wiegand
1 input, 1 output
Display
8 inch TFT LCD Color Screen
CPU
64bit Eight Core Customized Computer Vision CPU
POWER SUPPLY
12V 3A; PoE (IEEE802.3af / at)
SOFTWARE
ZKBio Time, ZKBio CVSecurity
Sensor
1
Operating temperature
-10℃ to 50℃ (14°F to 122°F)
Dimensions
279.5mm*141mm*29mm(11in*5.55in*1.14in)
Resolution
800*1280
