პროდუქტის კოდი: 9581
ბრენდი: ZKTeco
TLEB301
მახასიათებლები:
(ყველას ნახვა)
Anti-static
Contact Discharge ± 6KVAir discharge ± 8KV
Casing Material
Aluminium Alloy2.5D Tempered glass panel
Ingress Protection Rating
IK04 (Vandal-Resistant)
Model Name
TLEB301BP; TLEB301W
Mounting Method
Asian gang box
Number of Remote Control Support
Max. 6 remote control (Optional ; Separate purchases required).

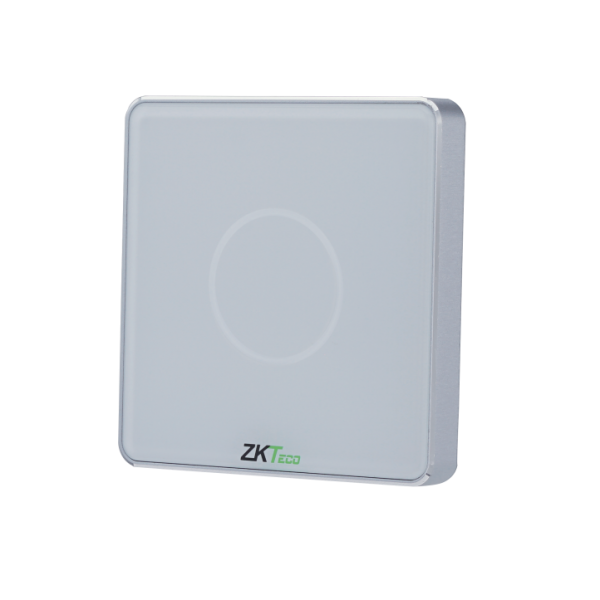

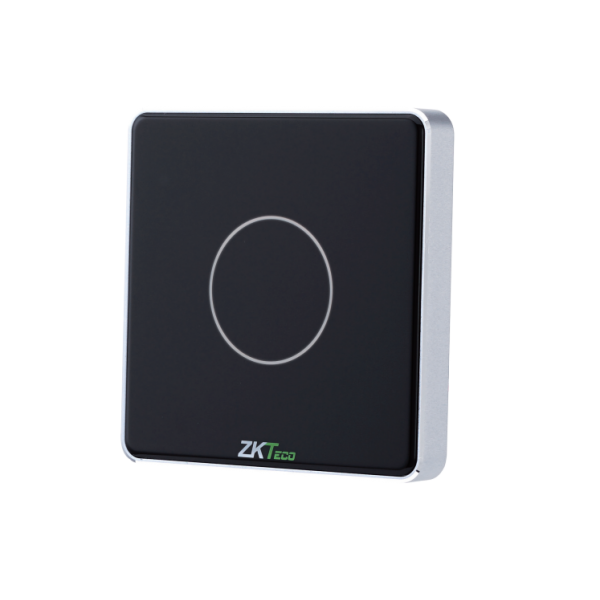

ZKTeco's TLEB301 is a touch exit button with a remote control unlocking function. The TLEB301 touch exit button adopts a capacitive module where users can unlock the door with a light touch. The TLEB301 has a 2.5D tempered glass panel with an anti-fingerprint coating, which can minimize the noticeable fingerprint marks. TLEB301 has an aluminium alloy frame to enhance protection and durability. It has achieved the IK04 vandal resistant protection rating to ensure protection against wear and tear.
Available in black and white, the slim body of TLEB301 is only 11.2mm wide, making it a stylish and practical choice for nearly all types of door frames. Besides, TLEB301 is compatible with Asian gang box for installing on the wall.
General
Anti-static
Contact Discharge ± 6KVAir discharge ± 8KV
Casing Material
Aluminium Alloy2.5D Tempered glass panel
Ingress Protection Rating
IK04 (Vandal-Resistant)
Model Name
TLEB301BP; TLEB301W
Mounting Method
Asian gang box
Number of Remote Control Support
Max. 6 remote control (Optional ; Separate purchases required).
Operating Environment
Indoor
Operating Humidity
20% to 90% RH (Non-condensing)
Power
DC 12V 1A Current Draw ≤200mA
Remote Control Communication
433 MHz
Remote Control Distance
15 m
Status Indicator
White: StandbyGreen: Go / Allow to Proceed Red: Stop / Do Not Proceed
Supported Panel
InBio Series, C3 Series, EC16
PROCESSOR
CPU: Arm® Cortex®-M0 @ max. up to 48MHz
Color
Black & White
Operating temperature
0°C to 45°C
Dimensions
86*86*11.2mm (L*W*D)
