პროდუქტის კოდი: 9501
ბრენდი: ZKTeco
C2-260
მახასიათებლები:
(ყველას ნახვა)
AUX485 (RS485-4 Aux. IN Converter) (Optional)
2
Card Capacity
30,000
Communication
TCP/IP, RS485
Dimension
116.47 * 96.49 * 31.40 mm (L*W*H)
DM10 (Single-Door Extension Board) (Optional)
Max. 8
Logs Capacity
200,000

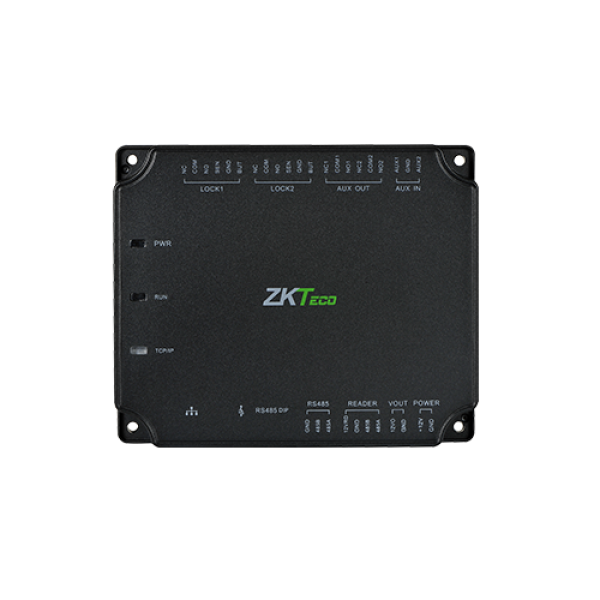

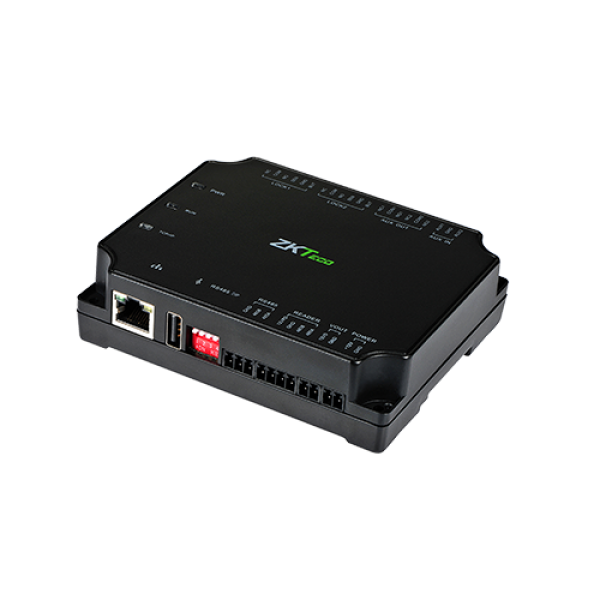

C2-260 is an IP-based two doors mini control panel. It supports TCP/IP communication through LAN or WAN network, and RS485 communication which allows extension to RS485 devices like DM10, AUX485, WR485. The series is a perfect match for the web-based software ZKBioAccess to provide RFID Security solution. C2-260 can control two doors by default. It can extend to 8 DM10s at most that it can support up to 10 doors.
General
AUX485 (RS485-4 Aux. IN Converter) (Optional)
2
Card Capacity
30,000
Communication
TCP/IP, RS485
Dimension
116.47 * 96.49 * 31.40 mm (L*W*H)
DM10 (Single-Door Extension Board) (Optional)
Max. 8
Logs Capacity
200,000
Number of Auxiliary Inputs
2
Number of Auxiliary Outputs
2
Number of Doors Supported by Default
2
Number of Readers Supported
4
Operating Humidity
20% to 80%
RAM
64MB
RS485 Extension Port
1
RS485 Reader Port
1
Types of Readers Supported
RS485 card reader, Wiegand reader (WR485)
WR485 (RS485-Weigand Converter) (Optional)
4
POWER SUPPLY
9.6V - 14.4V DC
Operating temperature
-10°C to 50°C / 14°F to 122°F
