პროდუქტის კოდი: 9576
ბრენდი: ZKTeco

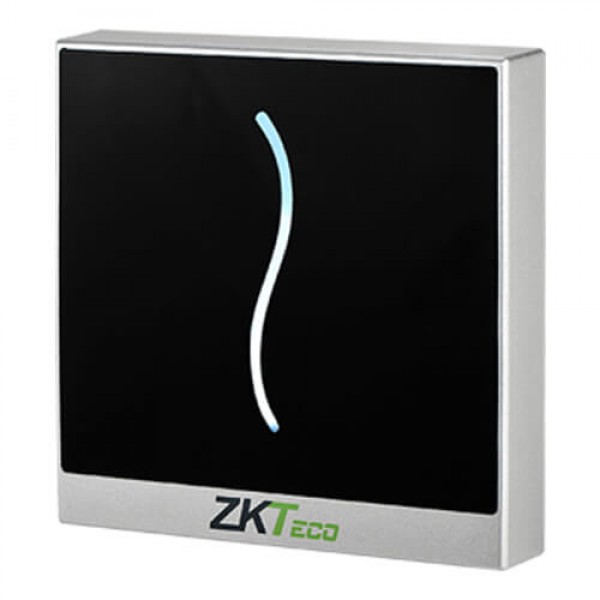

ProID Multi-tech Reader Series
მახასიათებლები:
(ყველას ნახვა)
Audio
Beep
Card Type
IC/ ID/DESFire EV1, EV2/ NFC
Certifications
CE ; FCC
Current Draw
< 80mA
Dimension
90*90*16(mm) (L*W*H)
Ingress Protection Rating
IP66
ProID Multi-tech readers support multi-frequency (125KHz & 13.56MHz) RFID reading, enabling the reader to support various RFID formats, including ID, IC, NFC, DESFire EV1 & EV2. Meanwhile, the reader provides speedy and stable communication through RS485 or Wiegand communication,ensuring the readers can easily integrate with ZKTeco's InBioPro series controller as well as 3rd Party controllers.
General
Audio
Beep
Card Type
IC/ ID/DESFire EV1, EV2/ NFC
Certifications
CE ; FCC
Current Draw
< 80mA
Dimension
90*90*16(mm) (L*W*H)
Ingress Protection Rating
IP66
Input Port
External LED Control, External Buzzer Control
Keypad
ProID30 BEMD-RS: ABS+PC
LED Indicator
Pulsing White Standby Light / Red and Green LEDs
Material
ABS+PC
Model Name
ProID20 BEMD-RS / ProID30 BEMD-RS
Multi Access Mode
ProID20 BEMD-RS: CardProID30 BEMD-RS: Card/ Card+Pin/ Pin
Operating Humidity
10% to 90%RH
Operating Voltage
7 ~ 13V DC
Read Range
≥5cm
Reading Time
≤300ms
Supported Panel
InBio160 Pro,InBio260 Pro, InBio460 Pro
Tamper Alarm
Support
OUTPUT FORMAT
RS485 & Wiegand
Operating temperature
-20 °C ~ 65 °C
