პროდუქტის კოდი: 9575
ბრენდი: ZKTeco

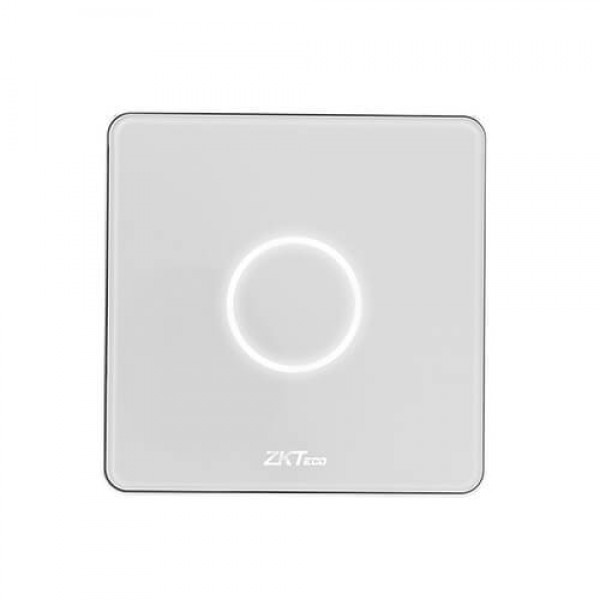

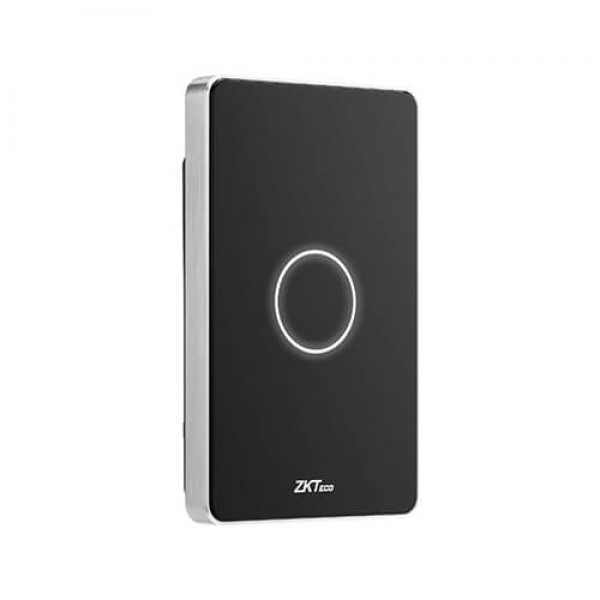

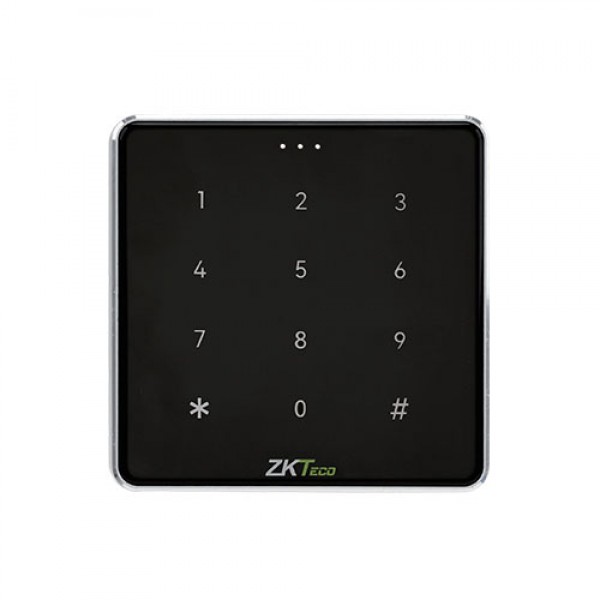

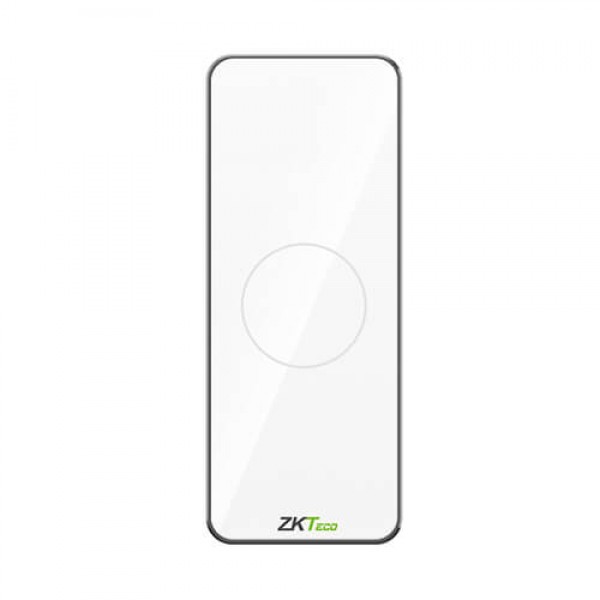

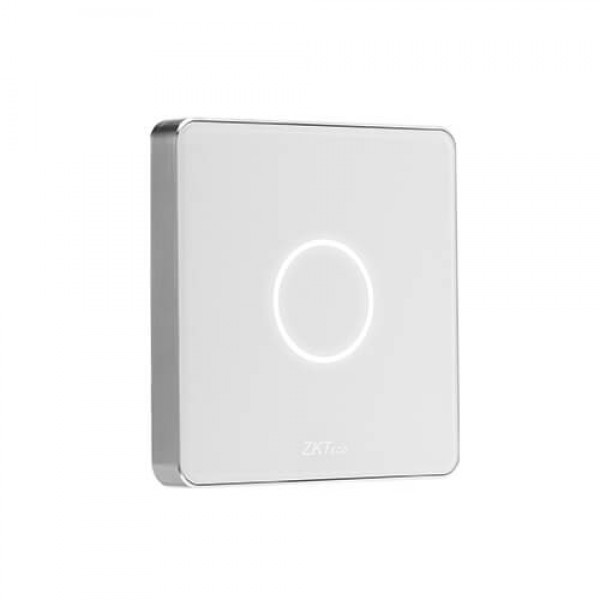

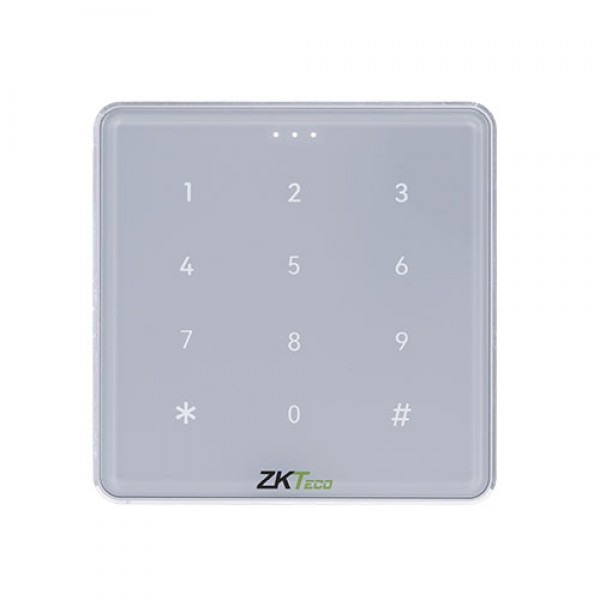

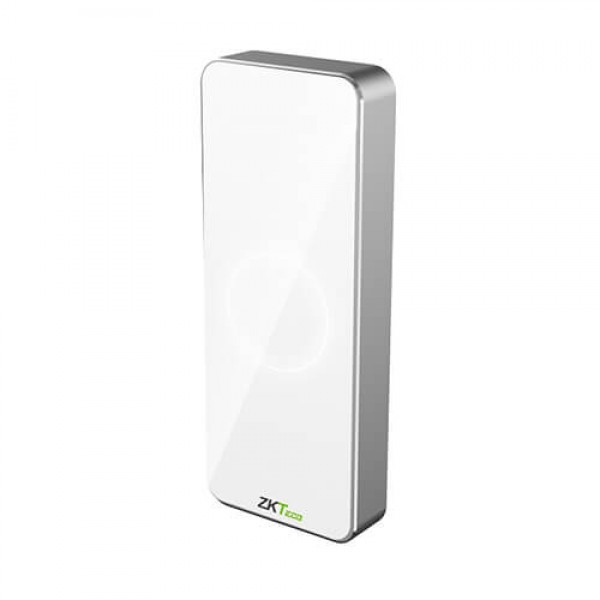

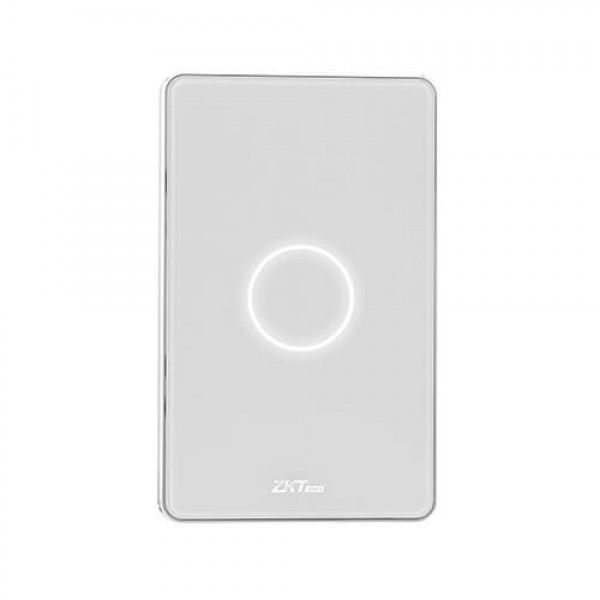

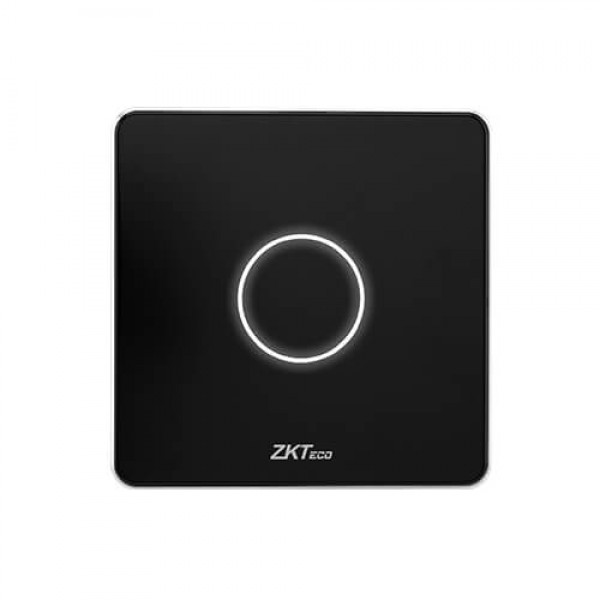

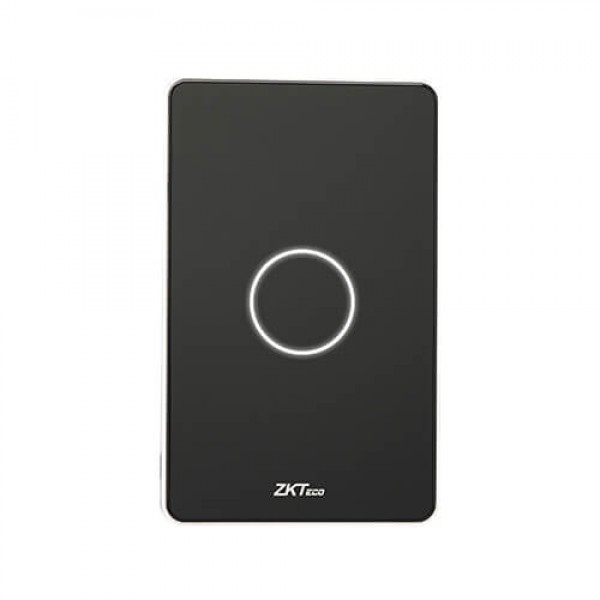

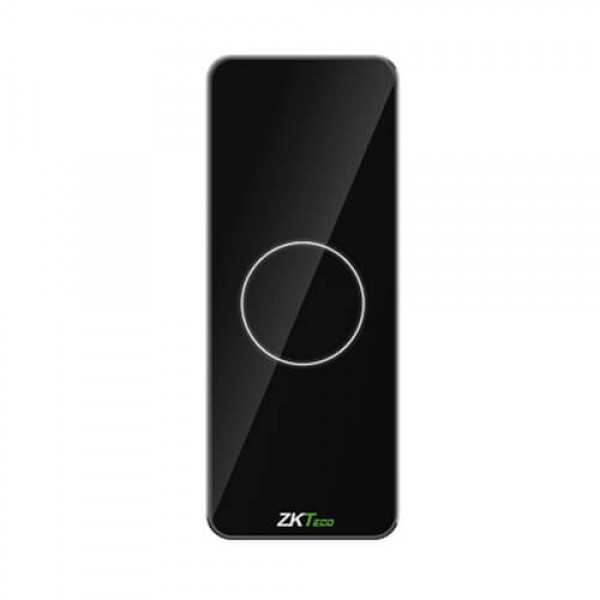

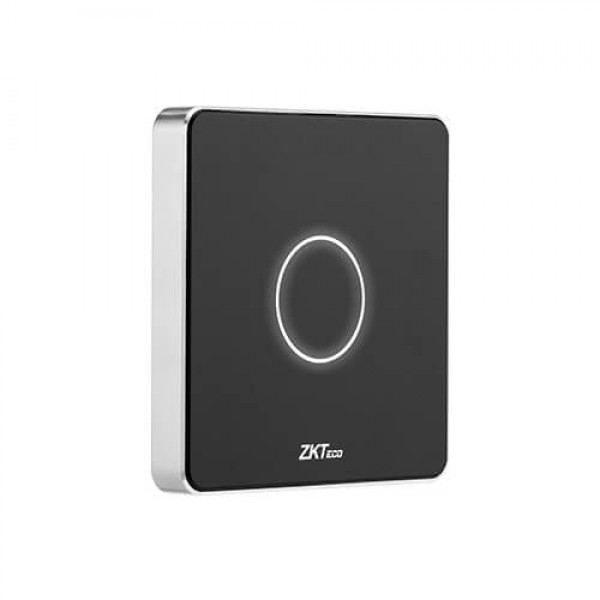

ProID100 Series
მახასიათებლები:
(ყველას ნახვა)
Buzzer
Beep
Card Type
ID (Standard)/ IC Card (ProID 101, ProID102, ProID103)IC&CPU & NFC (ProID 104)
Casing Material
Aluminum AlloyTempered glass surface
Certifications
ISO9001, ISO14001, CE, FCC
Ingress Protection Rating
IP65 (Only ProID101, ProID 102 and ProID 103)IK04
Input Port
External LED ControlExternal Buzzer Control
The ProID 100 series reader by ZKTeco is a highly advanced RFID access control reader that provides superior security. Its water-resistant design and sturdy aluminium alloy casing, rated IP65, make it an ideal solution for indoor and outdoor environments. The reader is available in two colours: Black and White, providing flexibility to match the aesthetics of your environment.
General
Buzzer
Beep
Card Type
ID (Standard)/ IC Card (ProID 101, ProID102, ProID103)IC&CPU & NFC (ProID 104)
Casing Material
Aluminum AlloyTempered glass surface
Certifications
ISO9001, ISO14001, CE, FCC
Ingress Protection Rating
IP65 (Only ProID101, ProID 102 and ProID 103)IK04
Input Port
External LED ControlExternal Buzzer Control
Model Name
ProID 101 / ProID 102 / ProID 103 / ProID 104
Mounting Method
Mullion mount : ProID101Asian gang box : ProID102 / ProID104Single gang box : ProID103
Operating Environment
Indoor & Outdoor
Operating Humidity
10% ~ 90% RHNon-Condensing
Power
Operating Voltage DC 7 to 13VCurrent Draw ≤350mA 5VProID104: DC 12V 1ACurrent Draw ≤300mA
Read Range
0-3 cmProID104: 0~20mm(The application environment influences the performance of the card and the card's reading distance it covers.)
Reading Frequency
125kHz ID card / 13.56MHz IC cardProID104 : 13.56MHz IC card
Reading Time
≤0.3s
Status Indicator
Pulsing White Standby LightRed and Green LEDs
Supported Panel
InBio, InBio pro, C3 Series
PROCESSOR
32-bit ARM Cortex-M0 48MHzProID104: 32-bit ESP32 240MHz
OUTPUT FORMAT
ProID 101, ProID 102, ProID 103 and ProID 104: Wiegand 26-bit or 34-bit (Adjustable); RS485ProID 104 additional support: Wiegand 66-bit (Adjustable)
Color
Black & White
Operating temperature
-20 °C ~ 65 °CProID104: -25 °C ~ 65 °C
Dimensions
ProID101: 111 x 44.5× 11mm.ProID102: 86 x 86 x11.6 mm.ProID103: 123 x 76 x11.6 mm.ProID104: 86 x 86 x 11.2 mm.
