პროდუქტის კოდი: 8405
ბრენდი: FingerTec

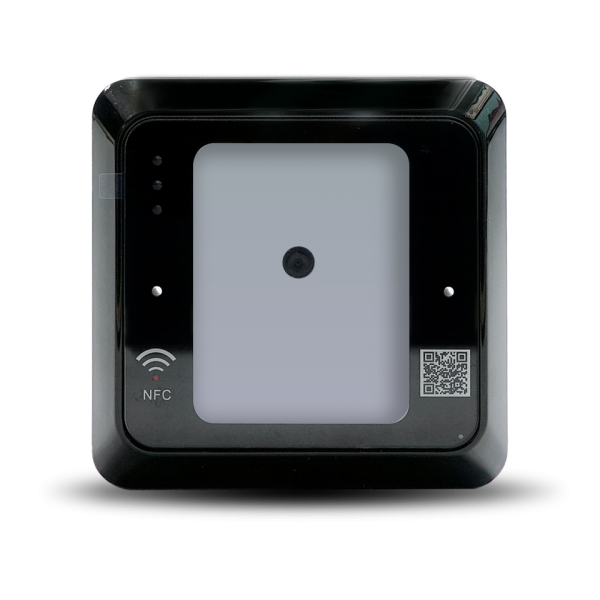

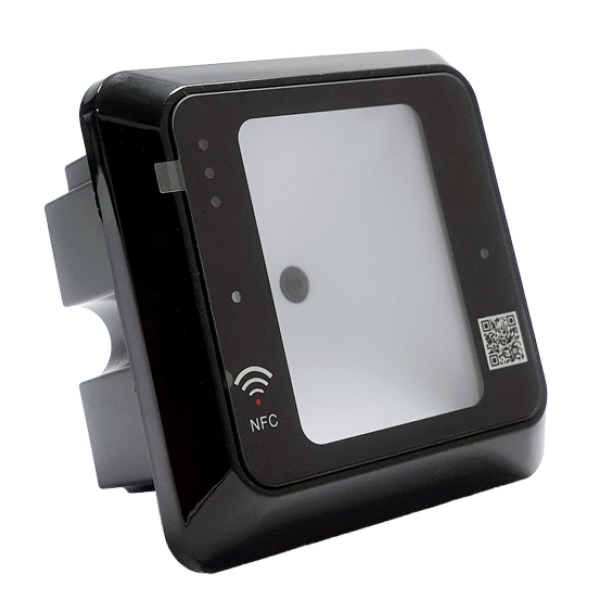

QR 110
მახასიათებლები:
(ყველას ნახვა)
MODEL
QR110
MICROPROCESSOR
Managed by primary
MEMORY
Managed by primary
Card
Storage in primary
Dimension (L X W X H), mm
86 x 40 x 86
QR CODE
Storage in primary
აღწერილობა
Simply scan your way with QR110 to conveniently obtain access to your space. The administrator just needs to issue all credentials for the authorized personnel and every time these credentials are used, the bundled software will record every activity accurately as well as keep the data secure for future references. QR110 links to Ingressus controller to control the access to your premises. Get QR110 for a simple, affordable and convenient access control system.

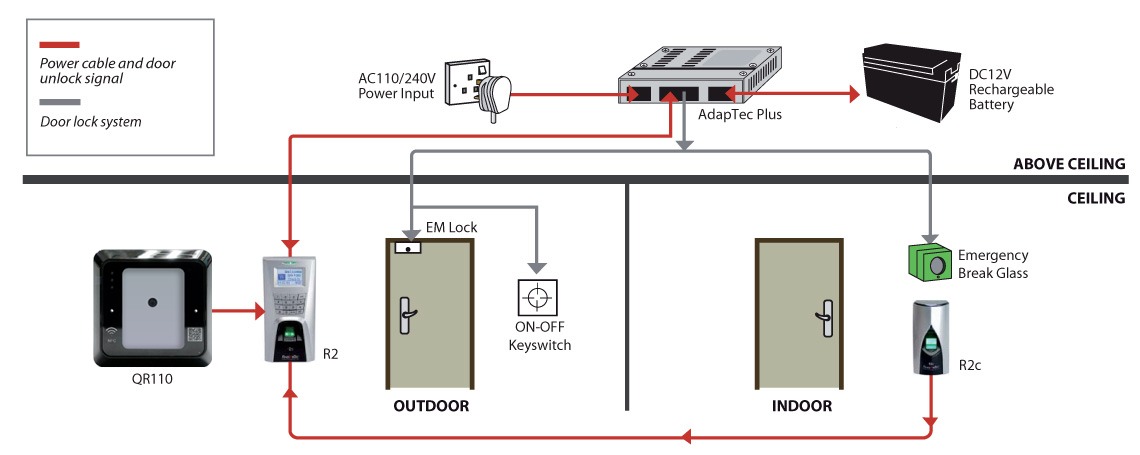

Layout Plan

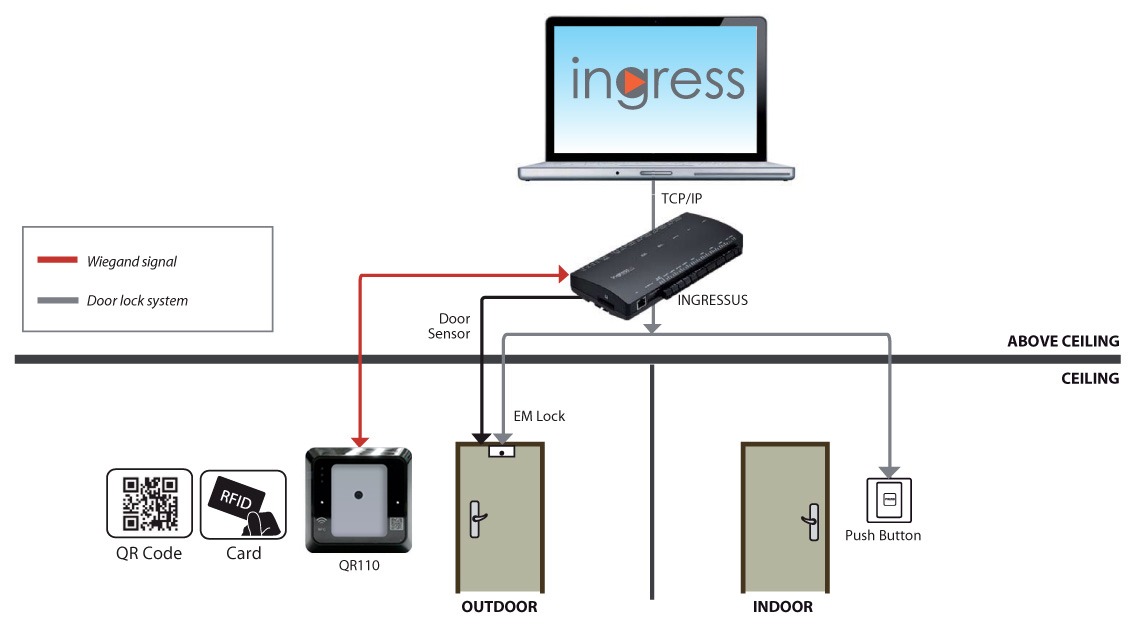

Installation Diagram
For illustration only
For illustration only
მახასიათებლები
General
MODEL
QR110
MICROPROCESSOR
Managed by primary
MEMORY
Managed by primary
Card
Storage in primary
Dimension (L X W X H), mm
86 x 40 x 86
QR CODE
Storage in primary
OUTPUT FORMAT
Wiegand 26/34
COMMUNICATION DISTANCE
Wiegand < 100m
RS485 < 1200m
WORKING VOLTAGE
DC 9 ~ 16V
WORKING CURRENT
< 100mA
WORKING ENVIRONMENT
Temperature (°C): -10 ~ 70
Humidity (%): 10 ~ 70 (Indoor use)
SENSING DISTANCE
QR Code (cm): 3~10
READING SPEED
< 0.2 seconds
READING INTERVAL
<0.5 seconds
SUPPORT
Q2i, R3, R2, Face ID 3, Face ID 5, Face ID 6, Kadex+, Ingressus I/II/IV
