პროდუქტის კოდი: 9538
ბრენდი: ZKTeco
EX0808
მახასიათებლები:
(ყველას ნახვა)
Aux Output Relay
8
Aux. Input
8
Baud Rate for RS-485 / OSDP
9,600bps
Communication
RS485 and OSDP (version 2.1.7)
Consumption
3.6W @ 12V DC 300mA
Dimension
160mm * 106mm (6.29in * 4.17in) (L*W)

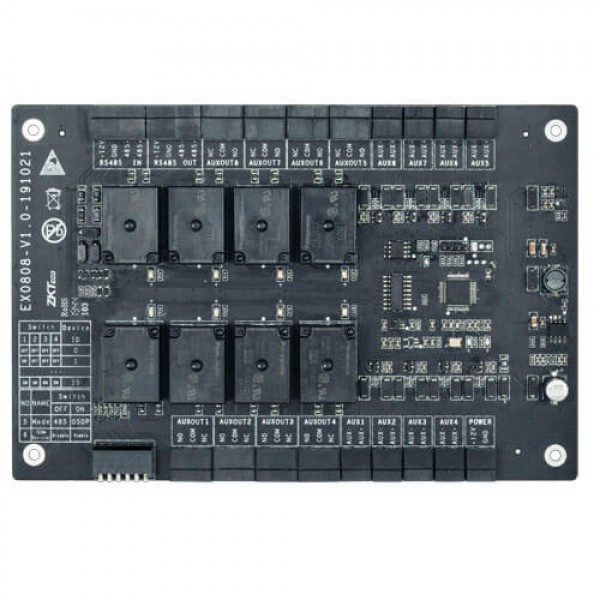

EX0808 consists of 8 AUX inputs and 8 AUX outputs. It reduces the cost of projects needed to fulfill extended I/O requirements. It can provide a professional access control solution with inBio Pro panels, C3 Pro panels and the ZKBioSecurity software, a very powerful allin-one access control platform. EX0808 can also be set to OSDP communication, and can be integrated with other OSDP panels smoothly. Each inBio Pro and C3 Pro panel can support up to 8 EX0808 boards (maximum 64 AUX inputs and 64 AUX outputs). Clients could also choose to purchase a metal case for easy installation.
General
Aux Output Relay
8
Aux. Input
8
Baud Rate for RS-485 / OSDP
9,600bps
Communication
RS485 and OSDP (version 2.1.7)
Consumption
3.6W @ 12V DC 300mA
Dimension
160mm * 106mm (6.29in * 4.17in) (L*W)
Net Weight
0.2kg (0.44lbs)
Operating Humidity
20% to 80%
Output Relay
3Form-C Relays-SPDT 5A@ 30V DC or 10A @ 30V AC
RS485 / OSDP Address
Set by the DIP switch
POWER SUPPLY
12V DC 300mA
Operating temperature
0°C to 45°C (32°F to 113°F)
