პროდუქტის კოდი: 9472
ბრენდი: ZKTeco
F22
მახასიათებლები:
(ყველას ნახვა)
Access Control Interface
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Algorithm Version
ZKFinger V10.0
Aux. Input
1ea for linkage function
Card Capacity
5000(Optional) ID or Mifare card
Communication
RS232*, RS485*, TCP / IP, USB-host, Wi-Fi
Dimension
158.5 x 78.0 x 19.4mm (LxWxH)

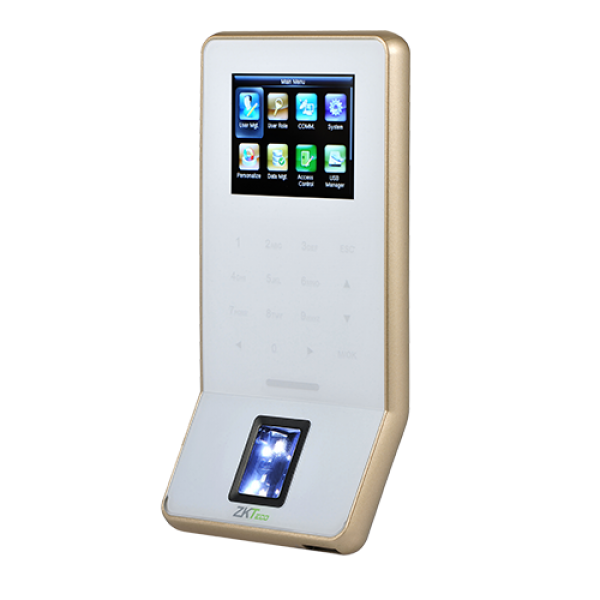

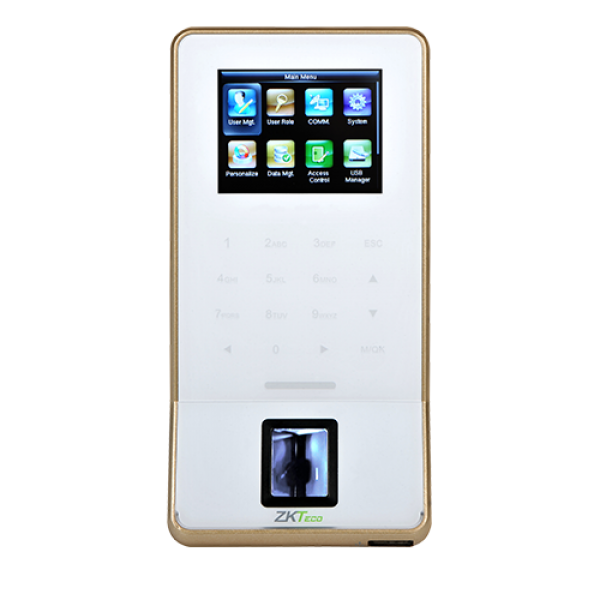

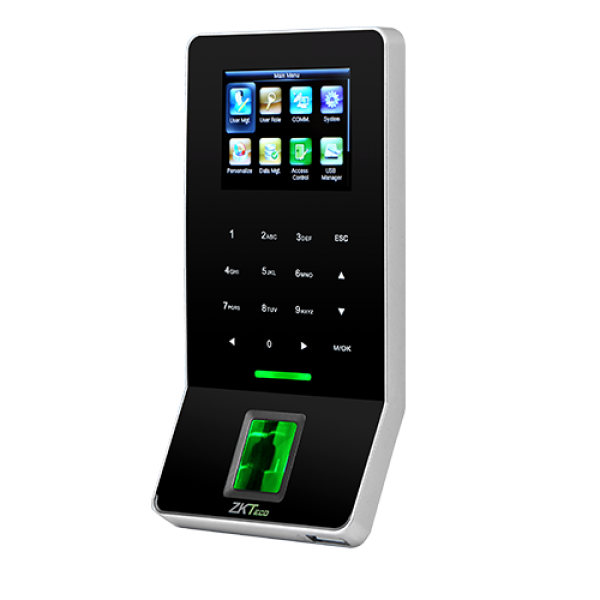

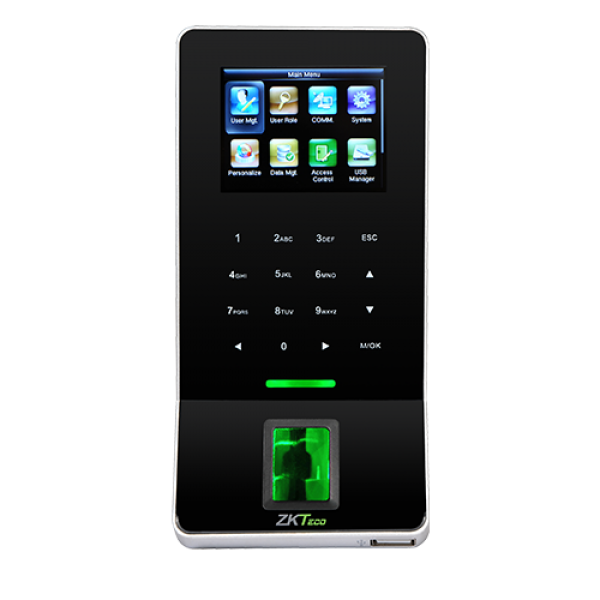

F22 is an ultra-thin fingerprint time attendance and access control terminal with Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high-image quality infrared detection fingerprint sensor.
F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP and Wi-Fi are also available that the device can be used in different networks.
General
Access Control Interface
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Algorithm Version
ZKFinger V10.0
Aux. Input
1ea for linkage function
Card Capacity
5000(Optional) ID or Mifare card
Communication
RS232*, RS485*, TCP / IP, USB-host, Wi-Fi
Dimension
158.5 x 78.0 x 19.4mm (LxWxH)
Fingerprint Capacity (optional)
3,000
Functions
DST, Automatic Status Switch (Optional), Record query, T9 input,14 digit user ID (Optional), Anti-passback, Scheduled-Bell, Printer(Optional), ADMS
Operating Humidity
20% - 80%
SDK and Software
Standalone SDK, ZKBio Access IVS
Transaction Capacity
30,000
Wiegand Signal
Input, Output
Display
2.4-inch TFT LCD Color Screen
POWER SUPPLY
12V DC, 3A
Sensor
Z-ID Sensor
Operating temperature
0 °C - 45 °C
