F35

Name: F35
Brand: ZKTeco
Availability: OutOfStock

პროდუქტი

მახასიათებლები

ახალი

Წინასწარი შეკვეთა

პროდუქტის კოდი: 9476

ბრენდი: ZKTeco

F35

მახასიათებლები: (ყველას ნახვა)

Access Control Interface

RS485 (DM10 Controller 1 Door Expansion (Coming soon) / RS485 Card Reader / Fingerprint Reader)

Authentication Method

Fingerprint / Card / Password (Physical Touch Keypad )

Biometric Algorithm

ZKFingerprint V10.0

Biometric Verification Speed

less than 0.3 sec (Fingerprint)

Camera

Camera @ 2MP

Card Capacity

10,000 (1:N)

აღწერილობა

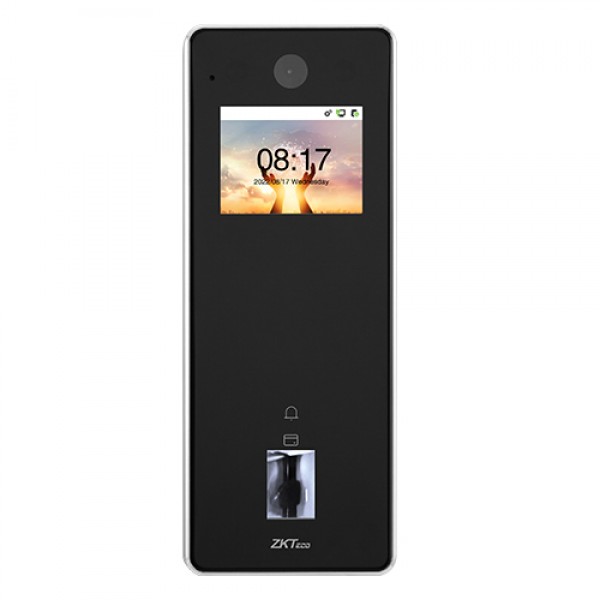

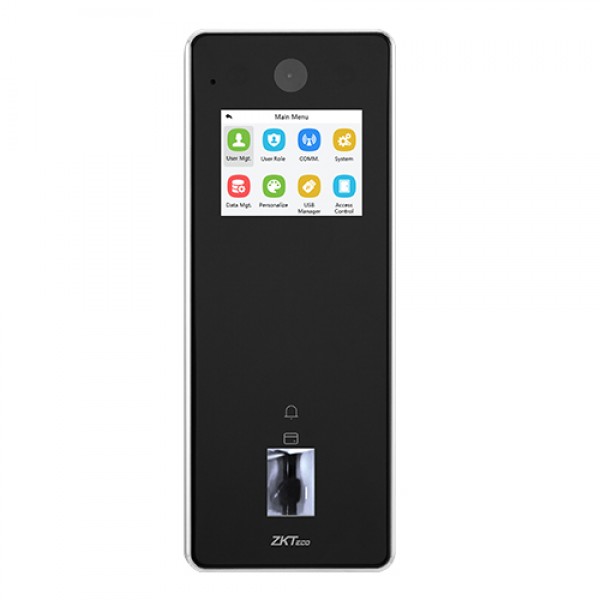

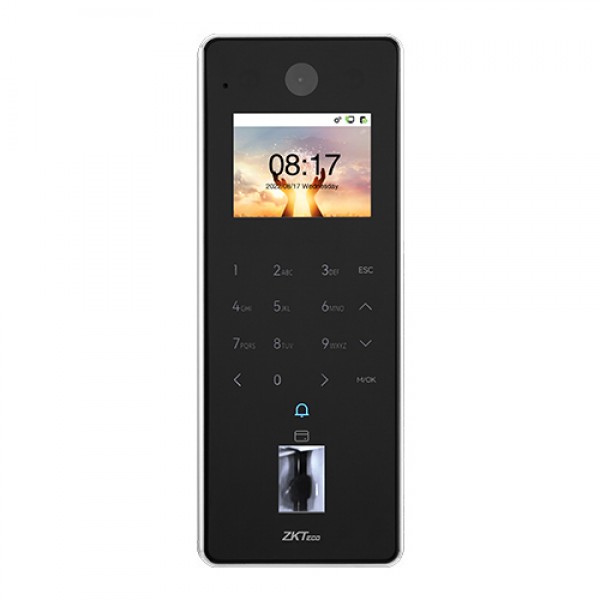

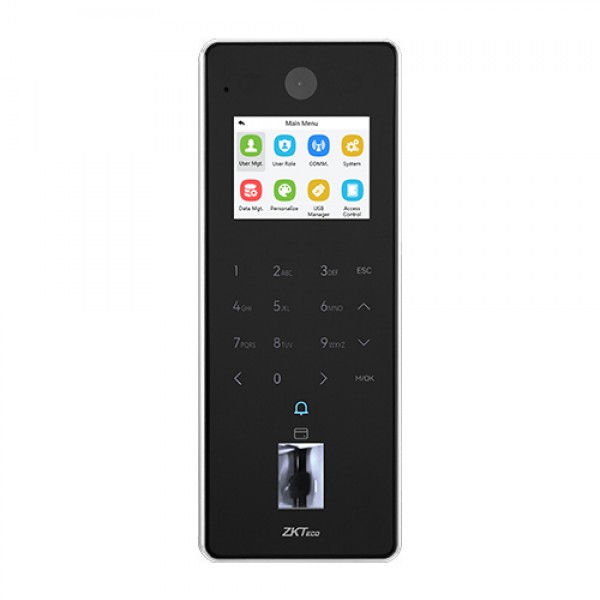

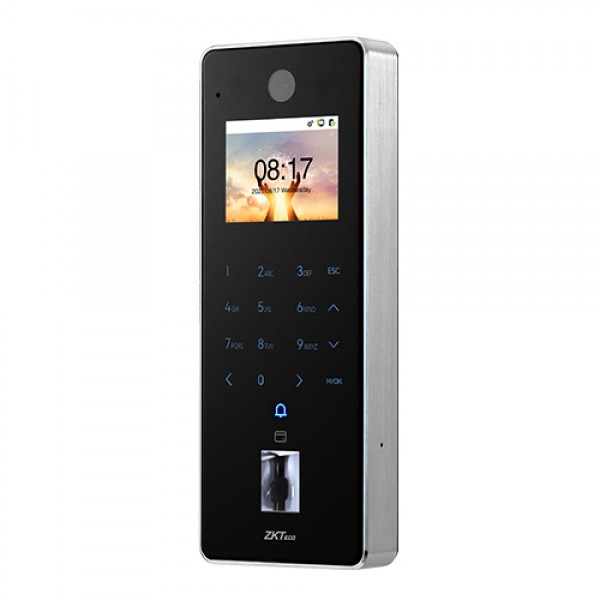

F35 from ZKTeco is a standalone access control terminal featuring a video intercom function. F35 adopts in-glass fingerprint verification, offering secure biometric authentication without a dedicated button. F35 also supports multiple tech card modules for verification, and it can be a time and attendance terminal when integrated with the ZKBioTime software. Also, one of the notable features of the F35 is that it has a 2.4-inch color monitor, a 2MP camera, a built-in microphone, and speakers for one-way video intercom via indoor monitor with SIP protocol. F35 supports the ONVIF protocol; its firmware has AC push and can convert to TA push. The aluminium alloy frame of the F35 offers robust protection, and it attained an IP65 protection rating, guaranteeing that this terminal operates in adverse weather.

მახასიათებლები

General

Access Control Interface

RS485 (DM10 Controller 1 Door Expansion (Coming soon) / RS485 Card Reader / Fingerprint Reader)

Authentication Method

Fingerprint / Card / Password (Physical Touch Keypad )

Biometric Algorithm

ZKFingerprint V10.0

Biometric Verification Speed

less than 0.3 sec (Fingerprint)

Camera

Camera @ 2MP

Card Capacity

10,000 (1:N)

Certifications

ISO14001, ISO9001, CE, FCC, RoHS

Communication

TCP/IP*1Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz Wiegand (Input & Output)*1RS485: ZKTeco RS485 *1Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1

False Acceptance Rate (FAR) %

FAR ≦ 0.0001% (ZKFingerprint V10.0)

False Rejection Rate (FRR) %

FRR ≦ 0.01% (ZKFingerprint V10.0)

Field of View

Diagonal: 145°Horizontal: 118°Vertical: 62°

Fingerprint Template Capacity

10,000 (1:N)

Gross Weight

1.13 Kg

Hardware

CPU: 1.2GHz Dual CoreRAM: 256MB; ROM: 512MBSpeaker: 8ohms±20% @1.0W Microphone: *1 (Sensitivity: -29 to -35 dB / Omni-directional / Signal-to-Noise Ratio: 58 dB / Impedance: 2.2 kΩFingerprint Sensor: In-Glass Fingerprint (Z-ID)

Housing Material

Aluminium Alloy

Ingress Protection Rating

IP65 (waterproof and dustproof )IK04 (Vandal Resistant)

Installation

Wall-mount (Compatible with Asian Gang-box / Single Gang-Box / European Gang-Box)

Max. User Password Length

6 to 8 Digits

Net Weight

0.52 Kg

Operating Humidity

10% to 90% RH (Non-condensing)

Operation System

Linux

Optional Functions

ZSmart, SIP Client (Ver2.0), Wi-Fi, IC Card, Multi-Tech Module: Module 1 / Module2 / Module 3,Wireless Doorbell

Standard Functions

Webserver, ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti Passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods Video Door Phone, ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push, Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard (Input)

Support Card Type

ID Card@125 kHz (Standard) Optional Multi-Tech Module:Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency)Module 2: ID & IC & DESFire EV1 / EV 2 & FeliCa & Legic & HID Prox (125 kHz & 13.56 MHz Dual Frequency)Module 3: ID & IC & DESFire EV1 / EV2 & FeliCa & Legic & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency)

Supported Software

Software: ZKBio CVAccess / ZKBioTime Mobile App: ZSmart

Transaction Capacity

500,000

User Capacity

10,000 (1:N)

MODEL

F35

Display

2.4"@ TFT Color LCD Screen (720*1280)

POWER SUPPLY

DC 12V 3A
