პროდუქტის კოდი: 8325
ბრენდი: FingerTec
Face ID 2
მახასიათებლები:
(ყველას ნახვა)
MODEL
Face ID 2
SURFACE FINISHING
Acrylonitrile Butadiene Styrene (ABS) & Acrylic
TYPE OF SCANNER
Hi-res infrared camera & fingerprint scanner
MEMORY
128MB Nand flash & 64MB Nand flash
ALGORITHM
Face BioBridge VX8.0, Fingerprint BioBridge VX9.0 / 10.0
PRODUCT DIMENSION (L X W X H), mm
194 x 110 x 145
Face ID 2 is a dual function biometric verification terminal that uses face and fingerprint technology in one single system. User only needs to look at the camera and get his verification done in split seconds. Fingerprint and password are the other credential options available in Face ID 2. If you require a contactless and effective biometrics solution, choose FingerTec Face ID 2!
Layout Plan

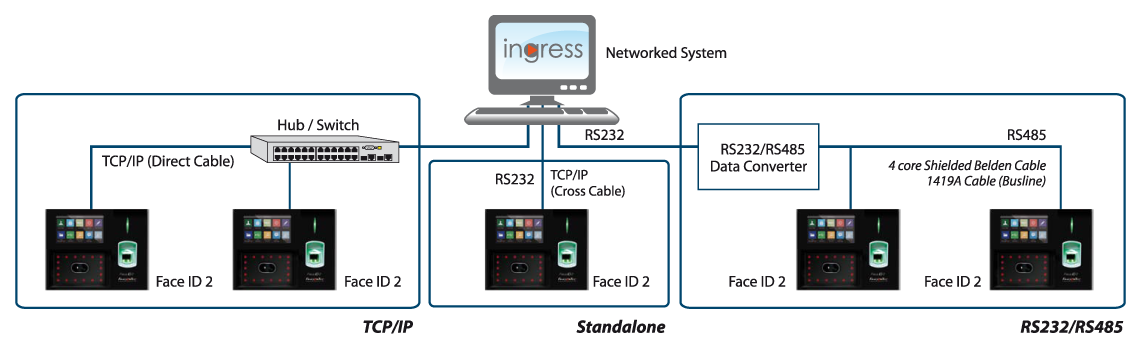

System Communication
for illustration only
for illustration only

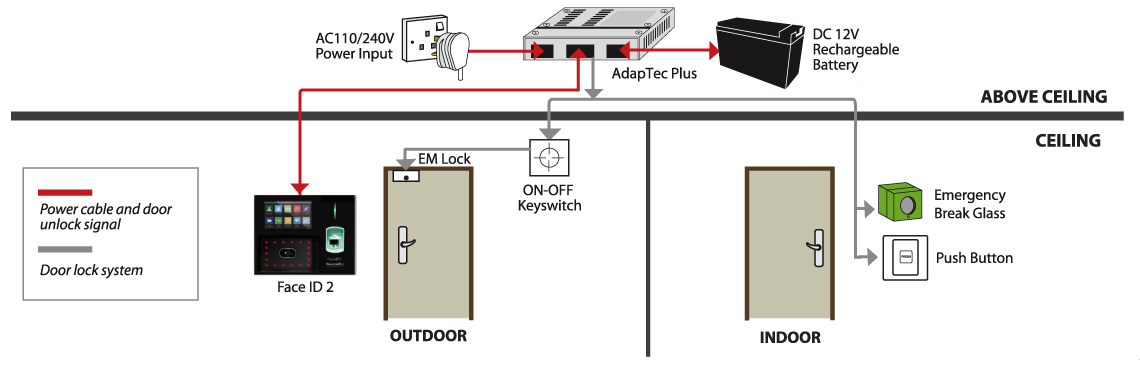

Installation Diagram
General
MODEL
Face ID 2
SURFACE FINISHING
Acrylonitrile Butadiene Styrene (ABS) & Acrylic
TYPE OF SCANNER
Hi-res infrared camera & fingerprint scanner
MEMORY
128MB Nand flash & 64MB Nand flash
ALGORITHM
Face BioBridge VX8.0, Fingerprint BioBridge VX9.0 / 10.0
PRODUCT DIMENSION (L X W X H), mm
194 x 110 x 145
Face templates
1200
Methods
Face (1:1, 1:N), fingerprint (1:1, 1:N), password
Method
TCP/IP, RS232, RS485, USB disk
Wiegand
26-bit output
Temperature (°C)
0 ~ 45
Humidity (%)
20 ~ 80
Power input
DC 12V 3A
Display
4.3” 65K color TFT Touch Screen Panel
Photo-ID
Yes
Fingerprint templates
10000
Transaction logs
200000
Baud rates
9600, 19200, 38400, 57600, 115200
Siren
Internal and external
Work codes
Yes
Fast Transaction Checking
Yes
Short messaging
Yes
PROCESSOR
1.2GHz
Recommended fingerprint per user ID
2
Fingerprint placement
Any angle
Verification time – Face, sec
<2
Verification time – Fingerprint, sec
< 1
Fingerprint
FAR < 0.0001%, FRR < 0.1%
Face
FAR < 0.01%, FRR < 0.1%
Day Light Saving Timer
Yes
Internal Backup Battery
Yes (DC 12V, 2000mAh)
EM lock driving output
DC12V / Relay output
Alarm output
NO/NC
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Indonesian, Chinese Traditional / Simplified, Cantonese, Vietnamese, Spanish, Portuguese (Portugal), Turkish, Persian. Other languages are available upon request.
