პროდუქტის კოდი: 8333
ბრენდი: FingerTec
H2i
მახასიათებლები:
(ყველას ნახვა)
MODEL
H2i
SURFACE FINISHING
Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER
Non coated optical scanner
MICROPROCESSOR
300 MHz
MEMORY
256 MB flash memory & 32 MB SDRAM
ALGORITHM
BioBridge VX 9.0 / VX 10.0

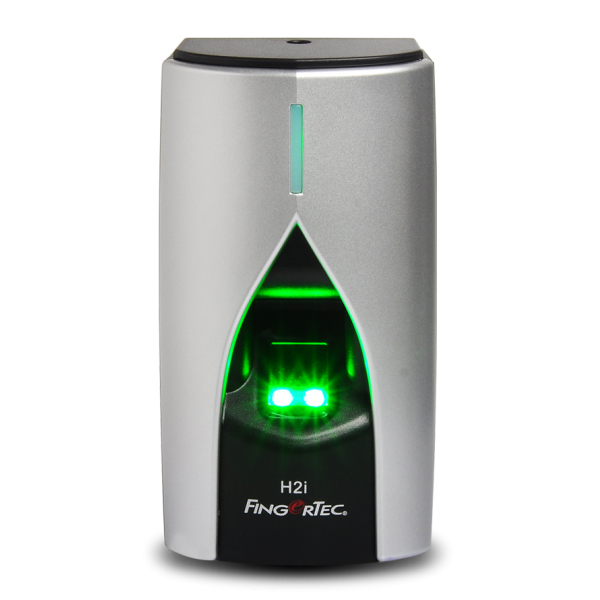

FingerTec’s latest door access and time attendance device – H2i may be small in size, but do not underestimate its capacity. With a stylish design and a sleek layout, H2i is a master terminal able to hold up to 1,500 fingerprint templates. The unique screen-less design uses a combination of voice commands and LED lights to communicate to its users. Holding almost the same features as a regular biometric device, FingerTec H2i just proves that size, in fact, does not matter.

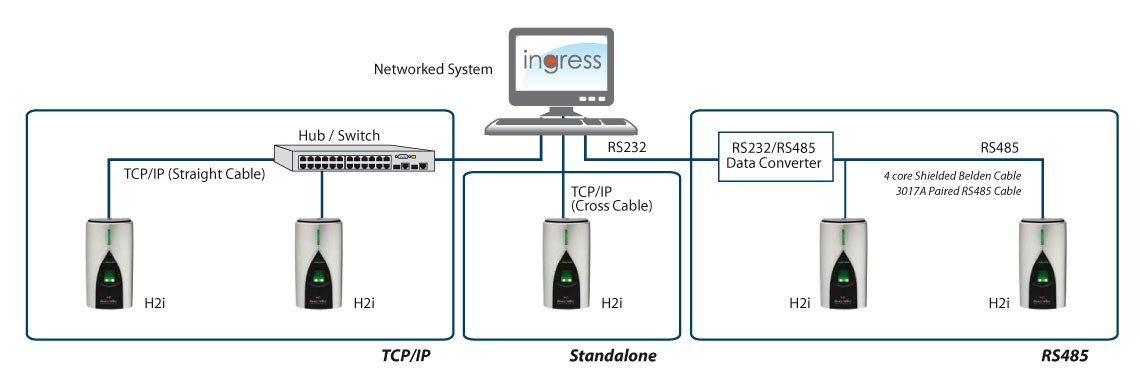

Layout Plan
System Communication
For illustration only
For illustration only

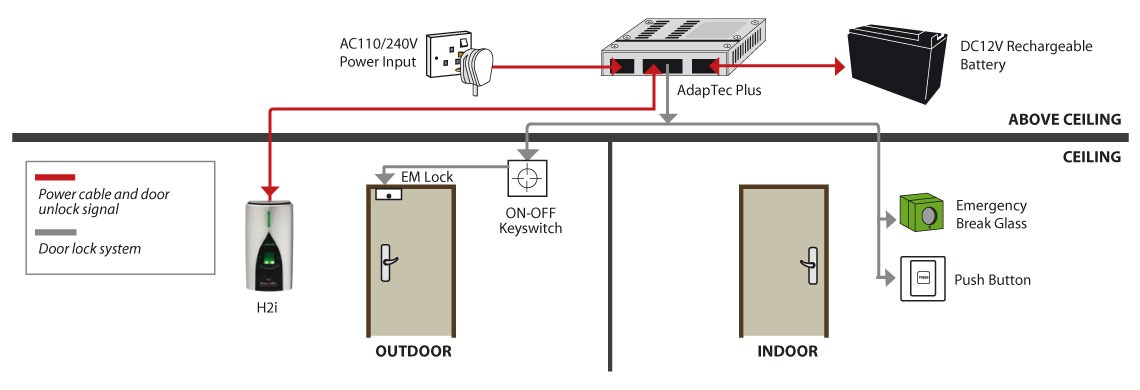

Installation Diagram
General
MODEL
H2i
SURFACE FINISHING
Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER
Non coated optical scanner
MICROPROCESSOR
300 MHz
MEMORY
256 MB flash memory & 32 MB SDRAM
ALGORITHM
BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm
78 x 50 x 150
Methods
Fingerprint
Verification time (sec)
< 1
Wiegand
26-bit input/output
Temperature (°C)
0 ~ 45
Humidity (%)
20 ~ 80
Power input
DC 12V 3A
Fingerprint templates
1,500
Transaction logs
100,000
FAR (%)
< 0.0001
FRR (%)
< 1
Baud rates
9600, 19200, 38400, 57600, 115200
Siren
Built-in (Optional-External)
Work codes
Yes
Recommended fingerprint per user ID
2
Fingerprint placement
Any angle
EM lock driving output
DC 12V 3A/ Relay output
Alarm output
NO/NC
Anti-passback
Yes
Communications Method
TCP/IP, RS485, USB Disk
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal) and Spanish.
Other languages are available upon request.
Voice
Yes
