პროდუქტის კოდი: 9497
ბრენდი: ZKTeco

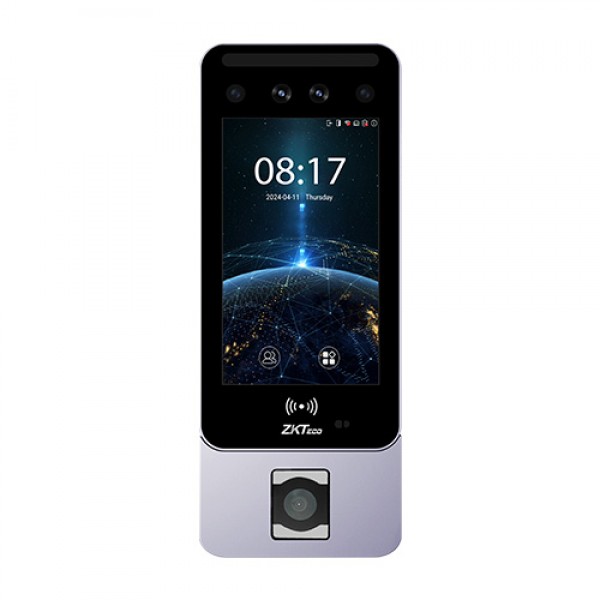

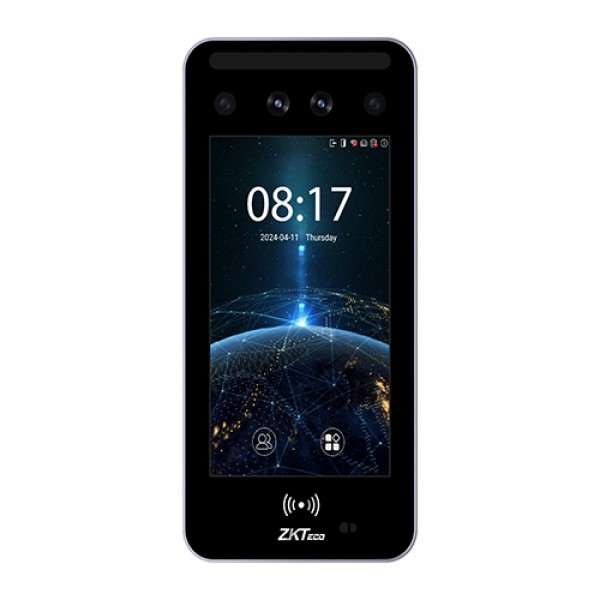

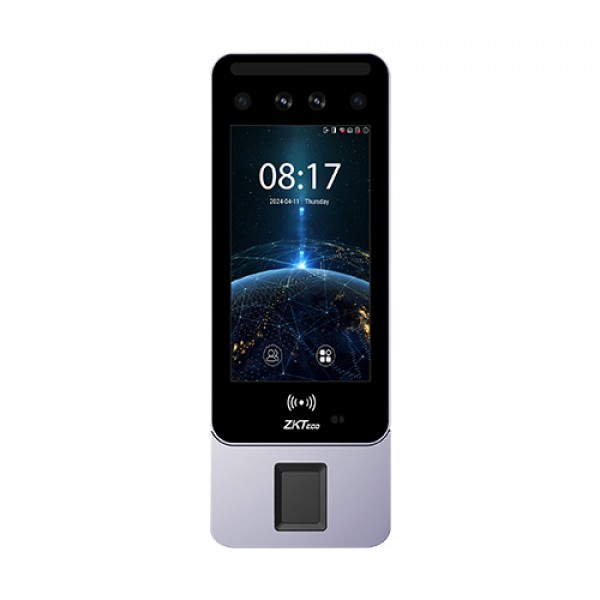

Horus E2
მახასიათებლები:
(ყველას ნახვა)
Access Control Interface
RS485 ( RS485 Card Reader / Biometric Reader)
Authentication Method
Face / Card / Password (Virtual Keypad) / Fingerprint (Optional) / QR Code (Optional)
Backup Battery
Horus E2: /Horus E2-FP: /Horus E2-B: 3,200mAh (Lithium Battery)Horus E2-QR: /
Biometric Algorithm
Horus E2: ZKFace VX5622Horus E2-FP: ZKFace VX5622; ZKFinger VX10.0Horus E2-B: ZKFace VX5622Horus E2-QR: ZKFace VX5622
Biometric Authentication Speed
Horus E2: less than 1 sec (Facial Authentication)Horus E2-FP: less than 0.5 sec (Fingerprint); less than 1 sec (Facial Authentication)Horus E2-B: less than 1 sec (Facial Authentication)Horus E2-QR: less than 1 sec (Facial Authentication)
Camera
Dual Camera @ 2MP
The Horus E2 from ZKTeco is an Android-based multi-biometrics terminal designed to streamline both time attendance and access control. Leveraging ZKTeco's cutting-edge technology, the Horus E2 supports a variety of authentication methods, including facial authentication, fingerprint scanning, multi-tech card authentication, and QR code scanning. These features meet the diverse needs of users across various environments. The device ensures reliable connectivity through dual-frequency Wi-Fi and 4G LTE, facilitating seamless network integration. The Horus E2 is compatible with Android 10 operating system, which simplifies the integration with third-party applications. Additionally, it includes an optional removable backup battery, enhancing its reliability and making it an ideal solution for temporary site management
General
Access Control Interface
RS485 ( RS485 Card Reader / Biometric Reader)
Authentication Method
Face / Card / Password (Virtual Keypad) / Fingerprint (Optional) / QR Code (Optional)
Backup Battery
Horus E2: /Horus E2-FP: /Horus E2-B: 3,200mAh (Lithium Battery)Horus E2-QR: /
Biometric Algorithm
Horus E2: ZKFace VX5622Horus E2-FP: ZKFace VX5622; ZKFinger VX10.0Horus E2-B: ZKFace VX5622Horus E2-QR: ZKFace VX5622
Biometric Authentication Speed
Horus E2: less than 1 sec (Facial Authentication)Horus E2-FP: less than 0.5 sec (Fingerprint); less than 1 sec (Facial Authentication)Horus E2-B: less than 1 sec (Facial Authentication)Horus E2-QR: less than 1 sec (Facial Authentication)
Camera
Dual Camera @ 2MP
Card Capacity
50,000(1:N)
Card Type
ID Card@125 kHz & IC Card@13.56 MHz (Standard)
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
Communication
TCP/IP*1; Wi-Fi (IEEE 802.11 ac/a/b/g/n) @ 2.4 GHz & 5G GHz; Bluetooth: BLE 4.1Wiegand (Input & Output)*1; RS485: ZKTeco RS485 *1; Aux Inputs *1; Electric Lock*1; Door Sensor*1; Exit Button*1; Alarm*1
Face Template Capacity
20,000(1:N)
False Acceptance Rate (FAR) %
Horus E2: FAR ≤ 0.01% (Visible Light Facial Authentication)Horus E2-FP: FAR≤ 0.01% ( Visible Light Facial Authentication) FAR≤ 0.0001% (Fingerprint)Horus E2-B: FAR ≤ 0.01% (Visible Light Facial Authentication)Horus E2-QR: FAR ≤ 0.01% (Visible Light Facial Authentication)
False Rejection Rate (FRR) %
Horus E2: FRR ≤ 0.02% (Visible Light Facial Authentication)Horus E2-FP: FRR ≤ 0.02% ( Visible Light Facial Authentication); FRR≤ 0.01% (Fingerprint )Horus E2-B: FRR ≤ 0.02% (Visible Light Facial Authentication)Horus E2-QR: FRR ≤ 0.02% ( Visible Light Facial Authentication)
Fingerprint Template Capacity
Horus E2: N/AHorus E2-FP: 30,000 (1:N)Horus E2-B: N/AHorus E2-QR: N/A
Gross Weight
Horus E2: 1.0 KgHorus E2-FP, Horus E2-B, Horus E2-QR: 1.06 Kg
Hardware
CPU: Octa-core @ 2.0 GHzRAM: 2GB; ROM: 16GBSpeaker: 7ohm @1.14W Sensitivity: -36 dB / Omni-directional / Signal-to-Noise Ratio: 60 dB / Impedance: 2.2KΩSupplement Light: Yes
Installation
Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
Max. User Password Length
8 Digits
Mobile Communication
Support 4G, Support GSM/WCDMA / TDSCDMA / LTE / TDDGSM4, W (B1 / 2 / 4 / 5 / 8) ; TD (34 / 39) PRX (1 / 2/ 3 / 4 / 5 / 7 / 8 / 12 / 17 / 20 / 28AB / 34 / 38 / 39 /40 / 41)DRX (1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 17 / 20 / 38 / 39 / 40 / 41)
Net Weight
Horus E2: 0.39 KgHorus E2-FP, Horus E2-B, Horus E2-QR: 0.46 Kg
Operating Humidity
0% to 80% RH (Non-condensing)
Operation System
Android 10.0
Standard Functions
ADMS, Photo Capture, Event Photo Capture, Holidays, Anti-Passback, Schedule Bell, Record Query, Tamper Switch Alarm, Multiple Authentication Methods, AC Push and TA Push Protocol Switch, T9 Keyboard (Input)
Supported Software
Software: ZKBio Time / ZKBio CVAccessMobile Application: ZKBio Zexus
Touchless Biometric Recognition Distance
30 cm to 100 cm (Facial Authentication)
Transaction Capacity
200,000
User Capacity
50,000
MODEL
Horus E2Horus E2-FPHorus E2-BHorus E2-QR
Display
5" @ TFT Color Touch LCD Screen (720*1280)
QR CODE
Horus E2: /Horus E2-FP: /Horus E2-B: / Horus E2-QR: ZKBio Zexus Mobile App, PDF417 scanning in third-party development projects
POWER SUPPLY
Horus E2: DC 12V 3AHorus E2-FP: DC 12V 3AHorus E2-B: DC 12V 3A Backup BatteryHorus E2-QR: DC 12V 3A
Operating temperature
-10°C to 45°C
Dimensions
Horus E2: 171.6mm * 82mm * 24.5mm (L*W*H)Horus E2-FP, Horus E2-B, Horus E2-QR: 216mm * 82mm * 24.5mm (L*W*H)
