პროდუქტის კოდი: 9759
ბრენდი: MUWEITE

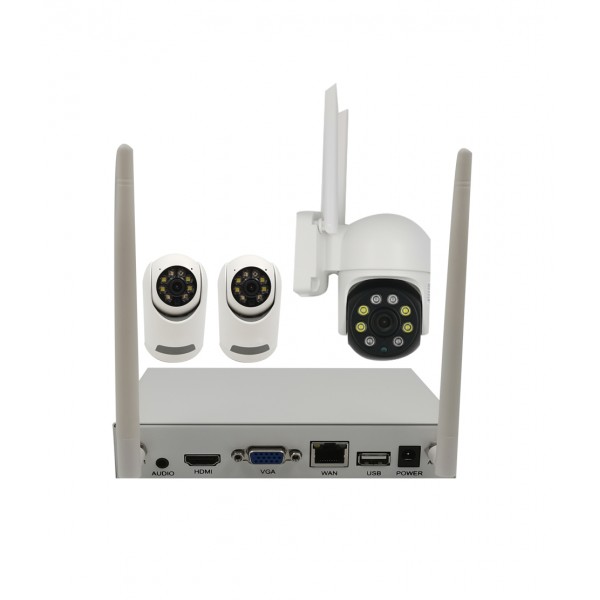

3CH Wi-Fi Mini NVR Kit
NVR Specifications:
1. 1080P HDMI/VGA video output
2. H.264/H.265 compression standard
3. Support multi languages
4. Support mobile phone, PC client multi-channel remote monitoring
5. Built-in dual 5Db high power WIFI antennas
6.Support 1HDD 2.5inch upto 10TB
Camera Specifications:
1. 1080P HD video output
2. Auto match the NVR channel and play video
3. Support two-way voice
4. Built-in leds, Day and Night monitoring
5.Support TF card upto 128GB
| WIFI NVR | |||
| Model | NVR-WIF90024-MN | ||
| Operating System | Operating System | Embedded Linux OS | |
| Video Input | Video Input | 4CH 1080P | |
| Video Output | HDMI | 1280x1024,1400x900，1920x1080 | |
| VGA | 1280x1024,1400x900，1920x1080 | ||
| Audio Output | Audio Output | 1pcs 3.5mm audio interface, supporting HDMI audio output | |
| Record | Record mode | Manual/Schedule/Motion | |
| Playback | 4CH 1080P | ||
| Backup | USB backup/network download | ||
| Hard Disk | Type | Support 1pcs 2.5 inches SATA HDD | |
| Max.Capacity | 10 TB | ||
| Network | Network port | 1pcs RJ45 10M/100M | |
| Wireless | 2pcs 5Db WIFI antennas | ||
| Network Control | TCP/IP, DHCP, DDNS, NTP, SMTP | ||
| Others | Power Supply | DC12V-2A | |
| USB | 1pcs USB 2.0 for mouse and USB drive | ||
| Power Consumption | ≤5W（Without HDD） | ||
| Operate Temperature | -10℃~+60℃ | ||
| Working Humidity | 10%~90% | ||
| Product Size | 152mm×165mm×31mm | ||
| Weight （Without HDD） | 500g | ||
| WIFI Camera | |||
| Model | MU-9420Y2 | MU-9420Q1 | |
| Sensor | 2MP，1/2.9″ CMOS | ||
| Main control chip | FH8626 | ||
| Encoding type | H.264，Support dual code stream | ||
| Main Stream | 1280×720，1920×1080 | ||
| Sub Stream | 704×576、352×288 | ||
| Audio Input | Built in microphone | ||
| Audio Output | Built inspeaker | ||
| LightCustom | DoubleLight（DefaultMode）/Infrared/Color/ B/W | ||
| Pan/Tilt Range | Pan: 0° ~ 350°; Tilt: 0° ~ 90° | ||
| WIFI connection | 2.4G WIFI 802.11 b/g/n | ||
| LAN connection | Not support | 1pcs RJ45 | |
| Reset | With a reset button, supports one key reset | ||
| Local storage | Built in TF card slot, supporting up to 128G TF card | ||
| Cloud service | Built in cloud service, supporting stand-alone connection | ||
| Weatherproof | Not support | Support | |
| Installation position | Indoor | Outdoor | |
| Power Supply | DC 5V-1500mA | DC 12V-2A | |
| Operate Temperature | -10℃ to +50℃ | ||
| Working Humidity | 20% to 90% RH | ||
| Product Size | 110mm×75mm×75mm | 120mm×140mm×95mm | |
| Weight | 190g(Without package) | 320g(Without package) | |
| 1pcs Kit Package | |||
| Packing list | 4ch NVR and power adapter 1set，Indoor camera and power adapter 2 sets，Outdoor camera and power adapter 1 set，1m network cable 1 pcs , ,mouse 1 pcs | ||
| Packing Size | 221×180×190 | ||
| Kit Weight | 1950g | ||
