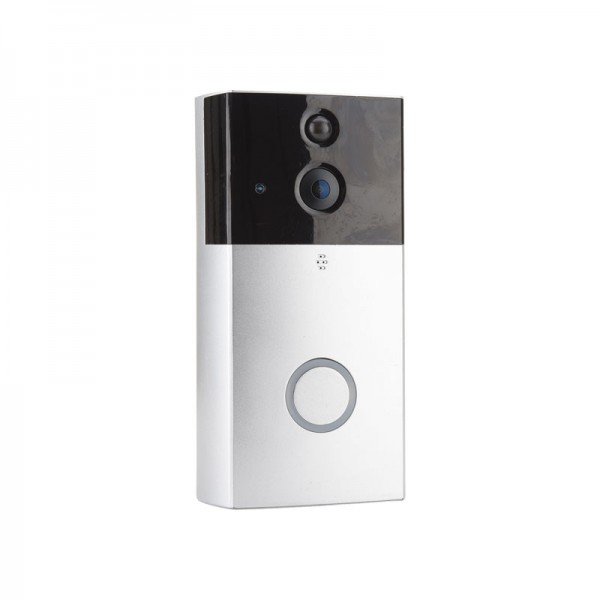

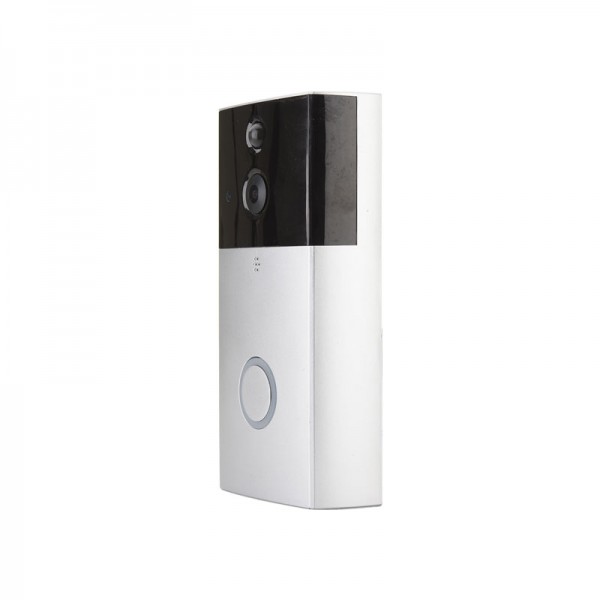

MV-107A
? 720P HD resolution, the image is clear and delicate;
? PIR infrared body sensor, support for passive infrared sensor;
? Standard 24V AC charging module and doorbell press module;
? Support 2D / 3D noise reduction, digital wide dynamic features;
? Advanced H.264 + / H.264 video compression technology, ultra-low bit rate, high definition quality;
? Lightning protection, in line with national standards GB / T17626.5, the international standard IEC61000-4-5;
? Support phone monitoring(iOS,android);
? Support multiple cloud technologies to achieve network penetration, front-end docking, alarm information push to mobile phones and other functions;
Model | MV-107A |
system structure | Embedded RTOS Design, Dual-Core 32-Bit DSP (Hi3518EV201), Pure Hard Compression, Watchdog |
sensor | 1 million 1/4 "SC2145H CMOS sensor; color 0.1Lux@F1.2, black and white 0.01Lux@F1.2 |
Video processing | H.264 + / H.264 video encoding, support dual stream, AVI format; support stream 0.1M ~ 6Mpbs adjustable; support frame rate 1 ~ 30 frames / second adjustable |
Image output | The mainstream: 1280 * 720 @ 25 fps; Substream: 704 * 576 @ 25fps |
shutter | 1/50(1/60)s to 1/10000s |
Day and night conversion mode | Support IR-CUT |
noise reduction | Support 2D / 3D noise reduction |
Wide dynamic | Support digital wide dynamic |
Audio processing | G.711A codec standard, support two-way voice intercom function, support for audio and video synchronization |
audio port | 1 input, level 2Vp-p, impedance 1kΩ, support pickup input; 1 output, impedance 16Ω, 30mw output power, support for connecting headphones or amplifier |
Signal interface | A photoresistor interface, an IR-CUT driver interface, support for photosensitive resistor input signal and IR-CUT, the infrared light linkage |
Human body sensor | PIR infrared body sensor, support for passive infrared sensor |
WIFI antenna interface | WIFI antenna interface |
Reset button interface | Reset button interface |
SD card slot | Support |
reliability | Comprehensive lightning protection, in line with national international standards; 7 * 24 hours 65 ℃ high temperature test is stable and reliable |
Business functions | Support WEB configuration, OSD, motion detection; motion detection alarm center reminder, screen pop-up linkage; support MJPEG capture; support for client-side remote monitoring software, MYEYE platform and other system applications; provide a complete SDK development kit |
ONVIF | No Support |
Phone monitoring | Support phone monitoring（iOS，Android） |
power supply | Power (optional): 1, DC5V; 2,24V AC power supply; 3,2 * 18650 power supply (support for charging) |
Attributes | Low-power doorbell dedicated |
