Модель: 9535
Производитель: ZKTeco

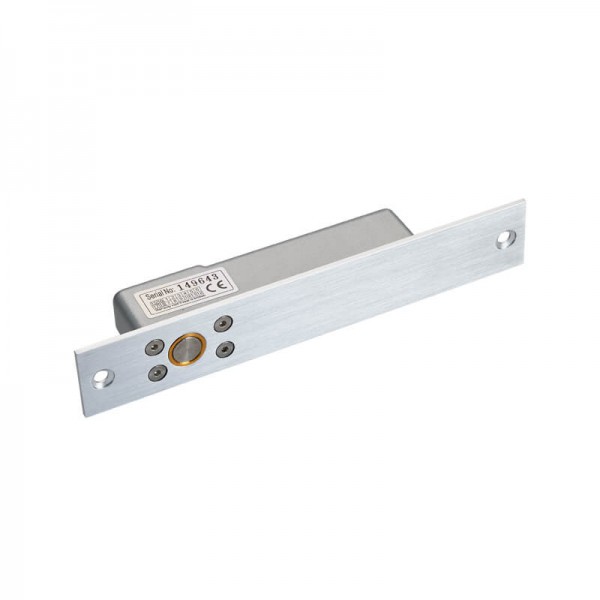

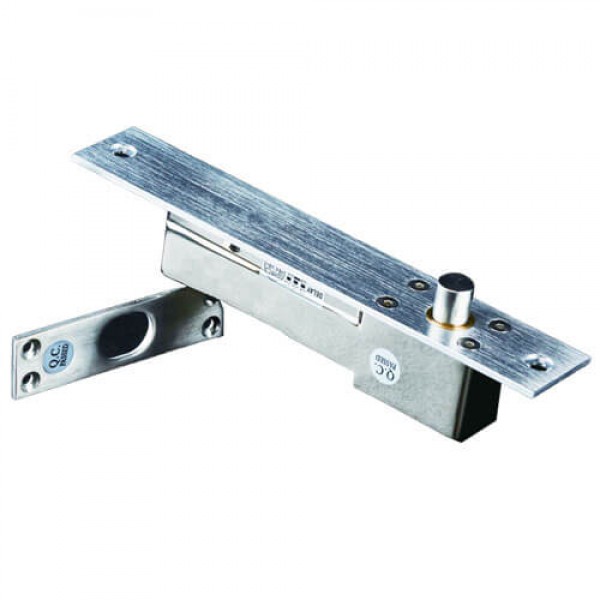

LB Series Electric Mortise Lock
Характеристики:
(Смотреть все)
Decorative Panel Size
215 * 41 * 0.7 (mm) (L*W*H)
Gross Weight
LB12: 0.445kgLB22: 0.719kgLB35: 0.719kg
Installation Hole Size
207 * 36 (mm) (The depth of the inner pit is not less than 38mm) (L*W)
Lock Cylinder
SUS304 Stainless Steel
Lock Delay
LB12: N / ALB22: 0s,3s,or 6s (adjustable)LB35: 0s,3s,or 6s (adjustable)
Lock Panel Size
205 * 35 * 3 (mm) (L*W*H)

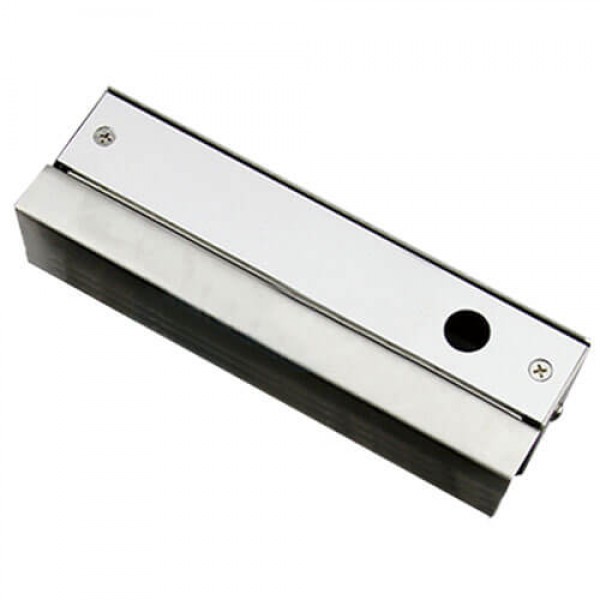

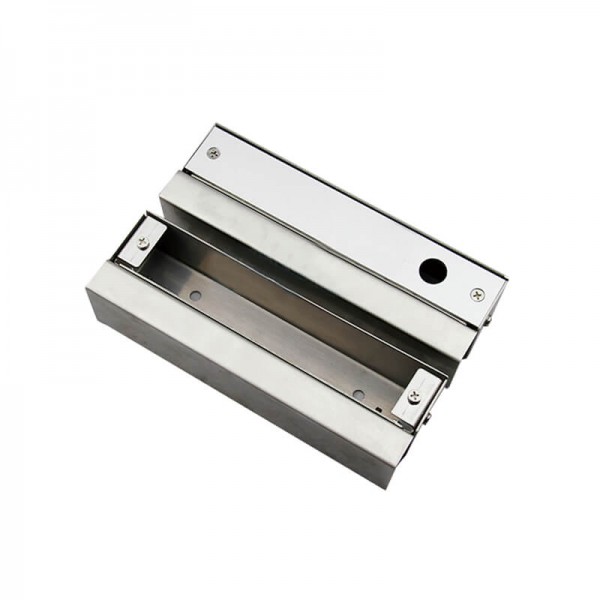

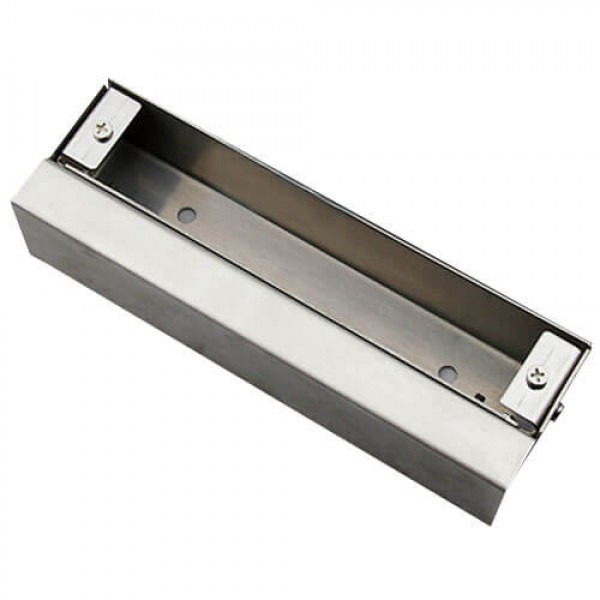

The electric mortise lock is electronically controlled. A mortise lock is a mechanism that sits inside the door. Wiring electricity into the mechanical system uses an electrical impulse from the wiring to stick out a bolt into the door frame to lock the door. When the power is off, the clip will retract, and unlock the door. LBB-1, LBB-2, and UBB-1 are accessories that help install electric mortise locks, namely, LB12, LB22, and LB35, on glass doors.
General
Decorative Panel Size
215 * 41 * 0.7 (mm) (L*W*H)
Gross Weight
LB12: 0.445kgLB22: 0.719kgLB35: 0.719kg
Installation Hole Size
207 * 36 (mm) (The depth of the inner pit is not less than 38mm) (L*W)
Lock Cylinder
SUS304 Stainless Steel
Lock Delay
LB12: N / ALB22: 0s,3s,or 6s (adjustable)LB35: 0s,3s,or 6s (adjustable)
Lock Panel Size
205 * 35 * 3 (mm) (L*W*H)
Unlock Delay
LB12: N / ALB22: 6s (automatically locks the door again when no one pushes the door within 6s after unlocking)LB35 : 0s,3s,or 6s(adjustable)LB35: 6s (automatically locks the door again when no one pushes the door within 6s after unlocking)
Wiring
LB12: 2 wire Regardless + or -LB22: 2 wire Red: + Black: -LB35: 5 wire Red: + Black: - Yellow: Exit button (work with Black) White: Door sensor, COM Blue: Door sensor, NO
MODEL
LB12 / LB22 / LB35
Door sensor
LB12: N / ALB22: N / ALB35: Supports
POWER SUPPLY
DC 10V to 24V
