Модель: 9479
Производитель: ZKTeco
TF1700
Характеристики:
(Смотреть все)
Algorithm Version
ZK Finger V10.0
Authentication Method
Finger / PIN / Card
Card Capacity
10,000 Cards
Communication
TCP / IP, RS485*, USB Host
Dimension
62.5 mm × 185 mm × 41.5 mm (W×H×D)
Fingerprint Capacity (optional)
3,000 Fingerprints (8,000 Optional)

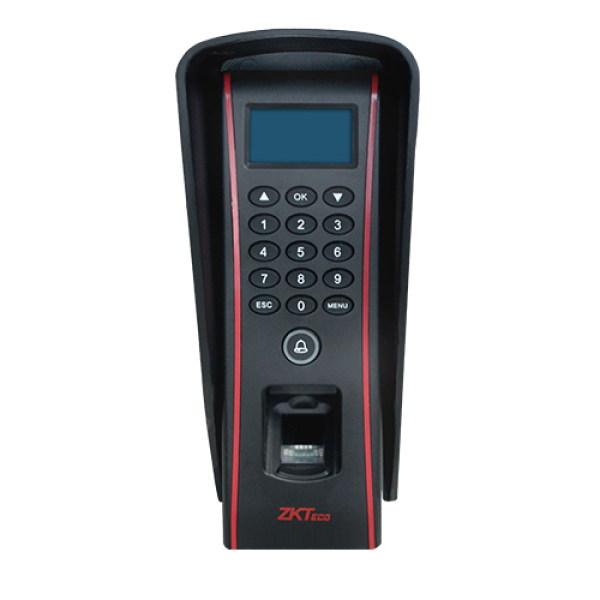

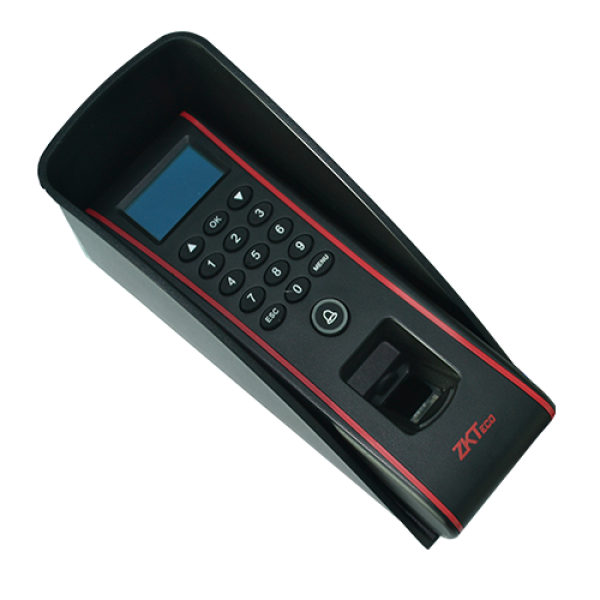

TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing. With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others. The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKBioAccess management software which has versatile features and powerful functions.
General
Algorithm Version
ZK Finger V10.0
Authentication Method
Finger / PIN / Card
Card Capacity
10,000 Cards
Communication
TCP / IP, RS485*, USB Host
Dimension
62.5 mm × 185 mm × 41.5 mm (W×H×D)
Fingerprint Capacity (optional)
3,000 Fingerprints (8,000 Optional)
Fingerprint Sensor Type (optional)
Infrared detection fingerprint sensor
Ingress Protection Rating
IP65
Keypad
3 x 5 keypads & doorbell
Log Capacity
50,000 Transactions
Logs Capacity
50,000 Transactions
Operating Voltage
12V DC 3A
RF Card
EM (standard) / IC Card (optional)
Sound and Interface
Buzzer and multi-color LED
Wiegand Signal
Wiegand input & output
Display
128 x 64 OLED
Operating temperature
-10 °C to 50 °C (14°F ~ 122°F)
