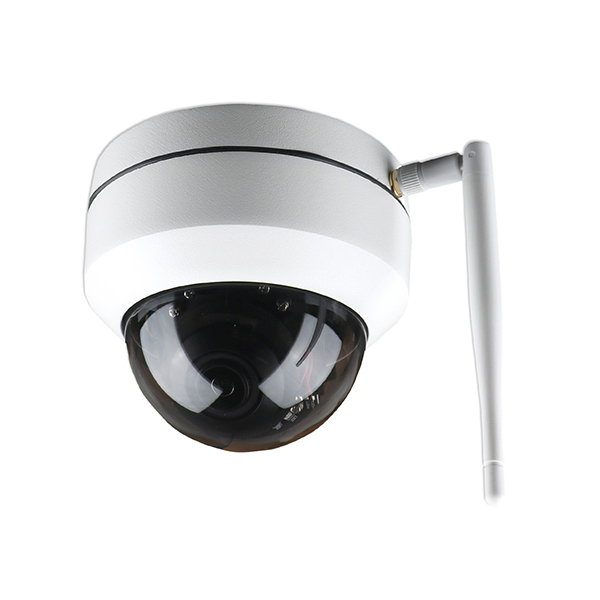

WIFI PTZ DOME camera
Private mold, 2.5 inch professional design for HD network camera, beautiful and delicate, best for
security
Material: aluminum alloy, IP66 waterproof
2pcs powerful SDM array IR source, effective night vision distance is 8- 15 meters in dark
environment
H.265 Video compression,5 megapixel (2560x1920), 2 megapixel (1920x1080)
Support for factory dynamic domain name and third-party dynamic domain name resolution IR-CUT auto switch in day and night, 3.6mm fixed focus lens or megapixel 2.8- 12mm auto focus
zoom lens
Preset position, cruise, limit scan, home position functions
Horizontal 355°rotation, rotate speed 30°/ second, vertical 3°- 90°rotate, speed 20°/ second Will not lose internal data when power off, can manual control IR LED turn on / off
Support 3D DNR, digital WDR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image
Support ONVIF protocol
Support FTP server
Support IE ,Google, Firefox browser
Functions: WIFI / Audio / TF Card slot
Optional function: POE
Free P2P for remote surveillance
Installation method: wall mount
Size: 108 x 108 x 100 mm (included bracket)
Model: | MU-HG50-5X 5MP | MU-HG20-5X 2MP | |
Camera | Imaging sensor | 1/2.8” COMS SONY IMX335 | 1/2.8" CMOS SC2335 |
Chip | GK7205V300 | GK7205V200 | |
Signal system | PAL / NTSC adjustable | ||
Scanning Mode | Progressive scanning | ||
Illumination | Color :0.2Lux@F1.2 B/W: 0.02 Lux @ F1.2 | Color :0.02Lux@F1.2 B/W: 0.002 Lux @ F1.2 | |
Lens | 2.7-13.5mm zoom lens optional | ||
Day and night switch | IR-CUT dual optical filters auto switch in day and night | ||
Electronic shutter | 1/25s~1/10000s; automatic | ||
White balance | Auto / manual | ||
DNR | DNR | ||
SNR | ≥50dB(AGC OFF) | ||
Privacy masking | Support | ||
IR source | 2pcs SMD IR LED lights | ||
Night vision distance | 10 meters | ||
Standard compression | Image compression | H.265, H.264 | |
Video bit rate | 32 Kbps -- 6144 bps; | ||
Audio compression | G.726/G.711 | ||
Image | Main stream | 5MP (2560 x 1920) | 2MP (1920x1080) |
Sub stream | 800*600 | 800*488 | |
Frame rate | 1-25fps (50HZ) | 1-25fps (50HZ) | |
Image adjustment | Can adjust Saturation, brightness, contrast, sharpness | ||
Image mirroring | Horizontal mirroring, vertical mirroring | ||
Scene | Auto, indoor, outdoor | |
Digital enlarge | Can achieve through NVR, P2P HD monitoring management software | |
Function | Storage | Support TF card storage (max 128GB) |
Preset | 8 pcs | |
Cruise | 1 pcs | |
Scanning | 1 pcs | |
Horizontal rotation | 350 degree rotation | |
Vertical rotation | 90 degree rotation | |
WDR | Support | |
Motion | Support | |
FTP | Support | |
Alarm | Send images to email or FTP server | |
Protocol | ONVIF 2.4 | |
Network protocol |
TCP/IP 、UDP/IP 、HTTP 、ICMP 、FTP 、EMAIL 、TELNET | |
Audio | Microphone / Audio out jack | |
POE power supply | Support POE power supply (optional) | |
WIFI | Support WIFI function | |
Mobile App | Support IPhone,Android | |
Interface | Interface | 1pc RJ45 10M / 100M Adaptive Ethernet port |
Basic parameter | Power input | DC 12V±10% |
Network interface | 10M/100M adaptive Ethernet port | |
Work environment | -20C ~ 60C, humidity is less than 80% (no condensation) | |
Waterproof | IP65 | |
Size | 108 x 108 x 100mm |
