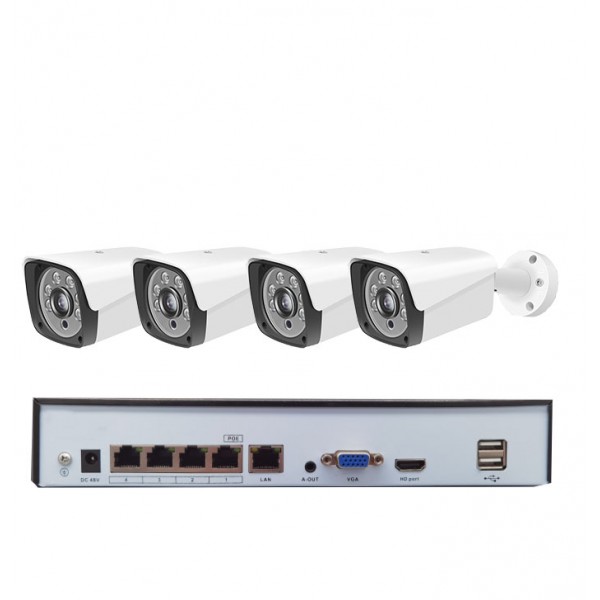

4CH PoE NVR Kit 5MP
Feature：
? Support access of multiple XM smart front-end devices with human detection
? Requires external POE expansion board power supply and network connection.
? Support HDMI4K,VGA 1080P HD output;
? Support ONVIF;access third party;
? Support web, CMS, center platform management software XMEYE, provide SDK development;
? Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
? Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);
? Support GB28181 protocol access tothird-party platforms.
Model | MU-POE-3604VG | |
System | Operating System | Embedded Linux |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/2/4/6/9/10 | |
Video | Video input (IP) | 10*4K |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:4K | |
Playback quality | 4K/5M/4M/3M/1080P | |
Decode | 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1） | |
VR | Unsupport | |
human shape / Face | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1） | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Record storage | HDD、Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA，1ch HDMI HD output |
Audio I/O | 1/1（3.5mm） | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved)
| |
HDD | 1* SATA(Up to 14TB for each disk)
| |
POE | Interface | 4 independent 100 Mbps PoE network interfaces |
Max Power | Max 30W for single port Max 54W in total (13.5W for each) | |
Supported StandardStandard | IEEE 802.3at, IEEE 802.3af | |
General | ONVIF | Support |
Power supply | 52V DC | |
Power Consumption | <10W(Without HDD,only for NVR) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension | 255(L)*220(W)*42(H)mm | |
Weight | A total of about 1.6kg |
Model | MU-N5 |
System structure | Embedded RTOS,dual-core 32bit DSP(XM550AI),pure hard compression ,watch dog |
Sensor | 5.0M 1/2.5" SC335E Low illumination CMOS sensor,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 |
Video compression | H.265AI/H.265+ (Compatible with H.265/H.264),support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
Image output | Main stream: 5MP 2592*1944@15fps;4MP 2560*1440@20fps; 2MP 1920*1080@20fps; sub-stream: 704*576@25fps; |
Shutter | 1/50(1/60)s to 1/ 10,000s |
Lens | N/A |
Day and night | Support IR-CUT,IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
Noise reduction | Support 2D/3D |
Wide dynamic | Support digital |
Auto iris | N/A |
Audio compression | G.711,support video synchronization |
Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ ,support sound pick-up input;0ch output(expandable to 1 way) |
Network interface | 1*RJ45 10/ 100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc |
Extension interface | N/A |
Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
PTZ | N/A |
Motor interface | N/A |
Alarm I/O | N/A |
WIFI interface | N/A |
Reset interface | N/A |
SD Card | N/A |
Reliability | Comprehensive lightning protection, 7 * 24 hours -10C~65Chigh temperature stable and reliable testing |
Intelligence analysis | Supporting Humanoid detection , and supports intelligent functions such as customized face detection, number statistics, etc. |
Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、XMEYE;perfect SDK; |
ONVIF | Support |
Mobile monitoring | Support multiple mobile monitoring (iOS，Android) |
Power | DC12V/2A input, power consumption:≤3W, |
Other | Support POE power supply, not support any custom,The drive voltage of the light board is at 3.3V |
