ProMA Series

Name: ProMA Series
Brand: ZKTeco
Availability: InStock

All about product

Specification

New

Pre-Order

Product Code: 9562

Brand: ZKTeco

ProMA Series

Specifications: (See all)

Access Control Interface

1* Lock Relay Output 1* Alarm Output / Auxiliary Input 1* Exit Button / Door Sensor 1* Doorbell Output

Additional Info

ZKFace v3.9& ZKFinger v10.0 ZKPalmVein12.0 Algorithms Operating Temperature: -26 °C to 55 °C (-14.80°Fto 131°F)Operating Humidity: ≤93%RHStorage Temperature: -30 °C to 65 °C (-22°F to 149°F)Storage Humidity: ≤93%RHDimensions(W*H*D): 68.7*194.7*28.3mmHeavy duty aluminium alloy casing

Capacity

Fingerprint: 10,000 (Only ProMA)Face: 30,000 (Optional: 50,000 only ProMA-QR & ProMA-RF)Palm: 5,000(Customized)Cards: (Optional: 100,000 only ProMA-QR & ProMA-RF)Transactions: 500,000

Communication

1* TCP/IP ( TLS1.2, AES-256 end to end secured communication channel) 1* Wiegand input/Output1*Standard RS485 / OSDP V2.1.7 over RS485 (AES-128, OSDP V2.1.7 Secured Channel)

Hardware

1.0GHz Quad Core CPU Memory 1G RAM / 8G Flash BioID+ Fingerprint Sensor (Available on ProMA only)QR code Sensor (Available on ProMA-QR only)2.0 Inches color TFT MonitorHi-Fi Voice & Indicator Tamper Switch Alarm

Optional Functions

Palm recognitionPoE IEEE 802.3af/ at(external)HID Proxy / iClass / multi-tech Card module Scramble QR code recognition (Supports: PDF417, Data Matrix, MicroPDF417, Aztec, available on ProMA-QR only)

Description

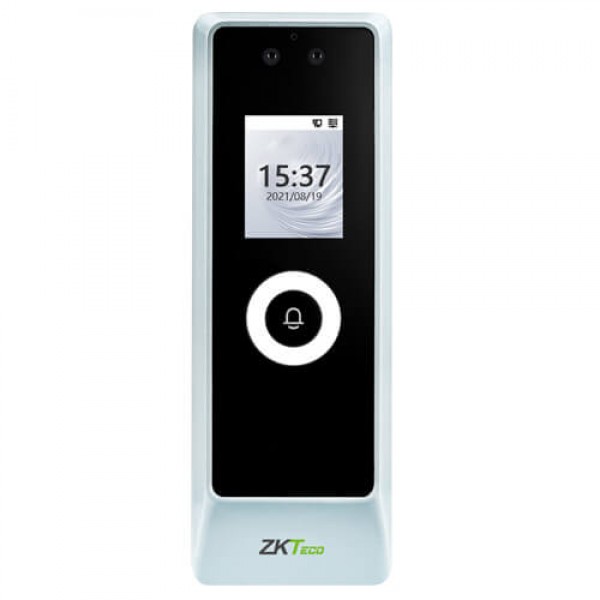

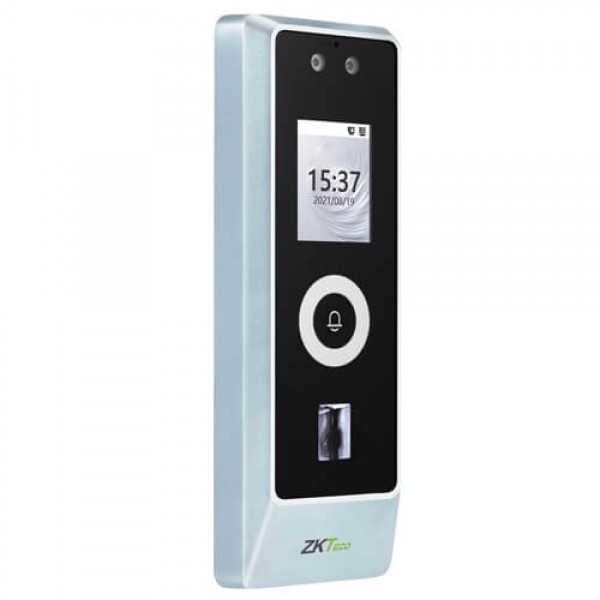

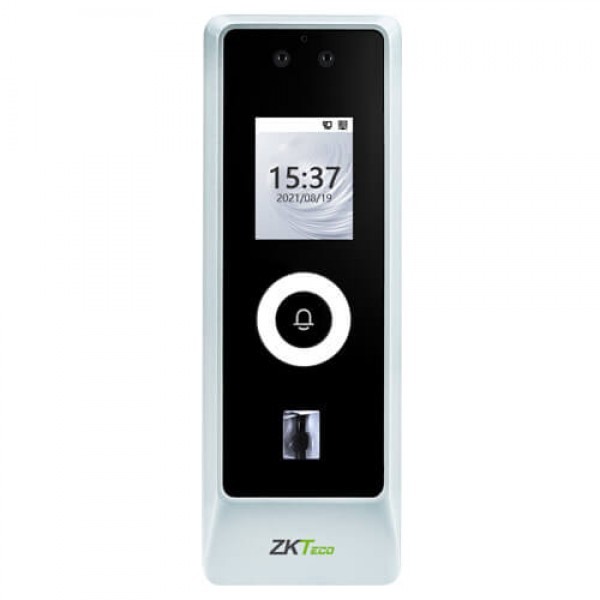

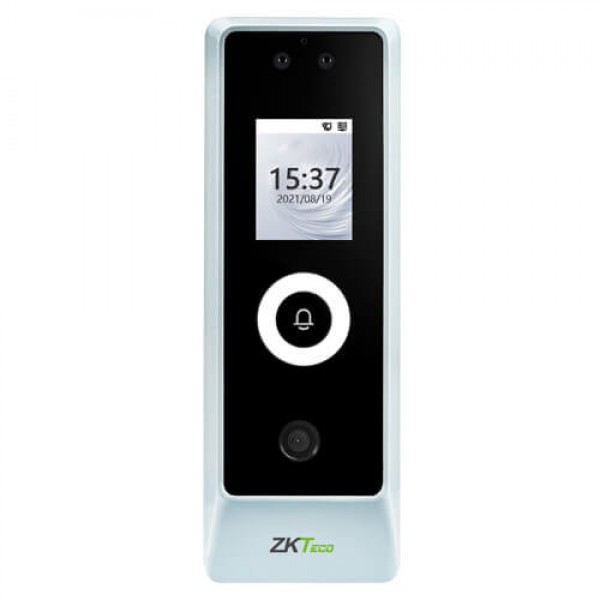

ProMA is a high-end outdoor multi-biometric access control standalone terminal built with ultra-robust aluminum alloy casted casing.

ProMA series enhance its protection level to reach water and dust proof standard (IP66) and vandal proof standard (IK07). There are three models under ProMA series, which have equipped with different authentication combinations, facial recognition, fingerprint recognition and multi-tech RFID recognition, named as ProMA-QR (Face+QR code+RFID), ProMA-RF (Face+RFID), ProMA (Face+Fingerprint+RFID). Additionally, the latest touchless palm recognition is also available in this terminal as a customized feature.

Despite its compact size, these terminal’s authentication template capacity is top notch in the industry, which supports up to 10,000 fingerprint / 30,000 face / 5,000 palm / 50,000 RFID. Besides, the authentication speed of these terminals is stunning, facial recognition speed of less than 0.3 sec per face, touchless palm recognition performed in 0.35 per hand, and completed RFID recognition in 0.2 sec, all these incredible features making them a perfect choice for most application scenes. The series supports the ZKTeco PUSH communication protocol and fully integrates with ZKBio CVSecurity and the latest hybrid biometric technology.

Specifications

General

Access Control Interface

1* Lock Relay Output 1* Alarm Output / Auxiliary Input 1* Exit Button / Door Sensor 1* Doorbell Output

Additional Info

Capacity

Fingerprint: 10,000 (Only ProMA)Face: 30,000 (Optional: 50,000 only ProMA-QR & ProMA-RF)Palm: 5,000(Customized)Cards: (Optional: 100,000 only ProMA-QR & ProMA-RF)Transactions: 500,000

Communication

1* TCP/IP ( TLS1.2, AES-256 end to end secured communication channel) 1* Wiegand input/Output1*Standard RS485 / OSDP V2.1.7 over RS485 (AES-128, OSDP V2.1.7 Secured Channel)

Hardware

Optional Functions

Palm recognitionPoE IEEE 802.3af/ at(external)HID Proxy / iClass / multi-tech Card module Scramble QR code recognition (Supports: PDF417, Data Matrix, MicroPDF417, Aztec, available on ProMA-QR only)

Power

Operating Voltage: 12V DC Current Draw: < 550mA

RFID Module

ID: EM05IC: IC08ID&IC: B133ID&IC&HID Prox / HID iclass: MTR30BLE / NFC(coming soon)

Special Functions

IP66 (water & dust proof) IK07 (vandal proof) ≤0.3s High Speed Facial RecognitionFully complied with ZKCSBL (ZKTeco Cyber Security Base Line)Video intercomONVIF Protocol (Compatible with Pro le S, Pro le T, Pro le G, Pro le C, Pro le Q & Pro le A)

Standard Function

On-board Web server functionAccess Levels / Groups / HolidaysDST / Bell Schedule /14-digit User IDDuress Mode / Tamper Switch Alarm, Multiple Anti-Passback

COMPATIBILITY

Security Relay Box: DM10Wiegand / OSDP/ RS485 / RS232 Slave Reader with FP / RFID / QR-codeSoftware: ZKBio CVSecurity /ZKBioTalkMobile App: ZSmartSIP Protocol: VT07-B01
