Product Code: 9556
Brand: ZKTeco

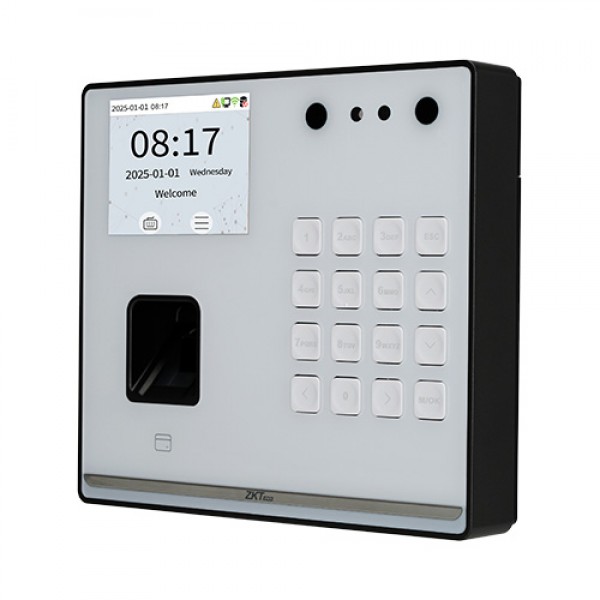

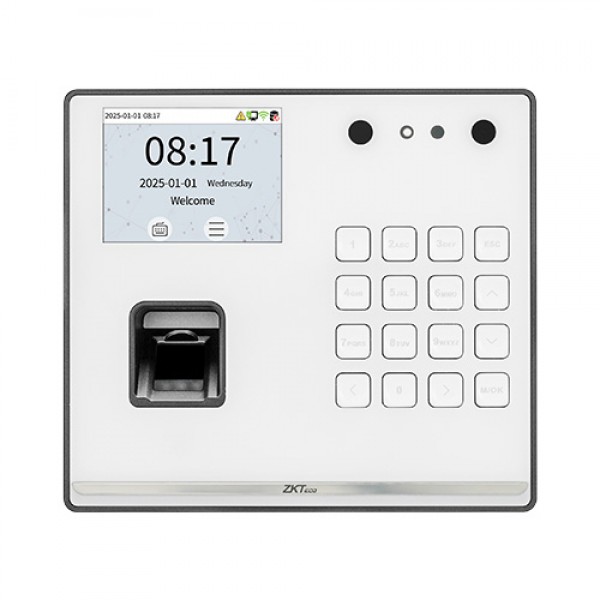

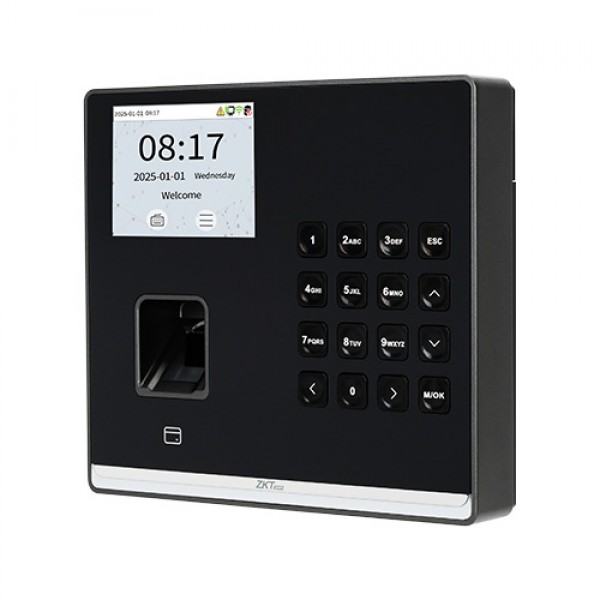

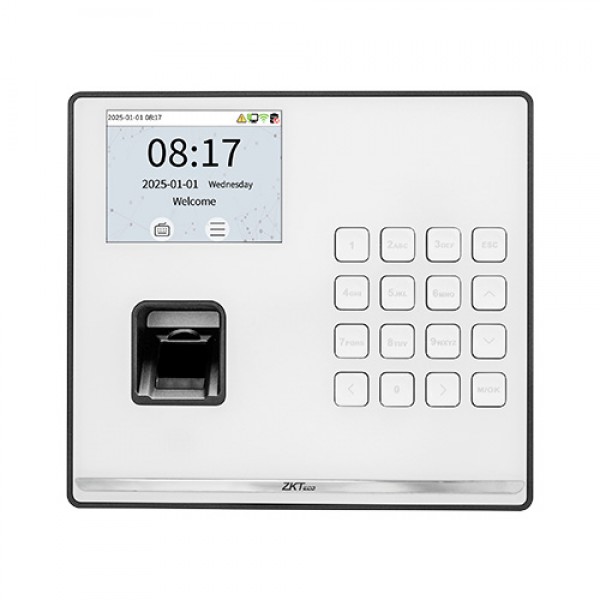

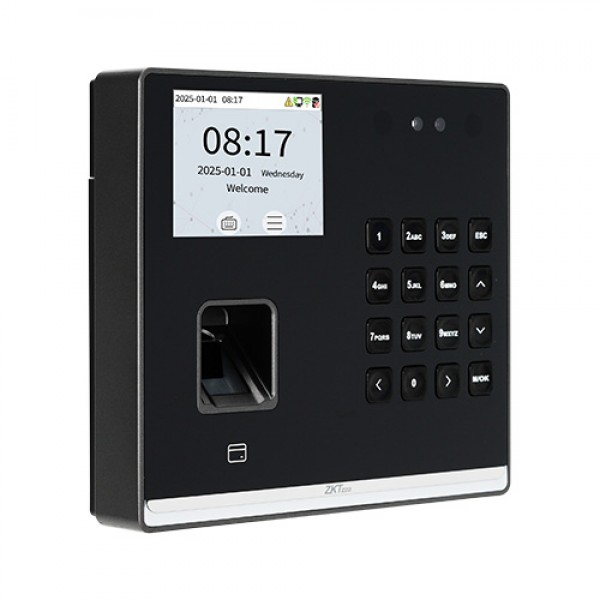

SenseFP M2 and SenseFace M2F-LR
Specifications:
(See all)
Authentication Method
SenseFP M2: Fingerprint / Card / Password (Physical Keypad)SenseFace M2F-LR: Fingerprint / Face / Card / Password (Physical Keypad)
Backup Battery (Optional)
2,000 mAh (Lithium Battery)Max. Operating Hours: 4 Hours Max. Standby Hours: 7 Hours Estimated Charging Time: 5 Hours
Biometric Algorithm
SenseFP M2: ZKFingerprint V13.0 (Standard) / V10.0 (Optional)SenseFace M2F-LR: ZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
Biometric Authentication Speed
SenseFP M2: less than 1 sec (Fingerprint)SenseFace M2F-LR: less than 1 sec (Fingerprint); less than 1.2 sec (Facial Authentication)
Camera
SenseFP M2: N/ASenseFace M2F-LR: Binocular Camera @ 1MP
Card Capacity
SenseFP M2: 3,000 (1:N) (Standard)SenseFace M2F-LR: 1,000 (1:N) (Standard)
SenseFP M2 and SenseFace M2F-LR are time and attendance terminals which simplifies attendance solutions and support access control functions. It is aimed at small and medium-sized businesses (SMEs) that want to manage their workforce reliably and cost-effectively.
SenseFP M2 and SenseFace M2F-LR provide multiple authentication options, such as fingerprint verification and card entry. The SenseFace M2F-LR extends its capability with facial authentication with anti-spoofing function.
Also, the SenseFP M2 and SenseFace M2F-LR are equipped with TCP/IP and Wi-Fi interfaces for seamless network integration and secure communication. The terminal can transmit data quickly across wired and wireless environments. The SenseFP M2 and SenseFace M2F-LR have a 2,000mAh backup battery (optional). This provides a minimum of 4 hours of continuous operational power.
General
Authentication Method
SenseFP M2: Fingerprint / Card / Password (Physical Keypad)SenseFace M2F-LR: Fingerprint / Face / Card / Password (Physical Keypad)
Backup Battery (Optional)
2,000 mAh (Lithium Battery)Max. Operating Hours: 4 Hours Max. Standby Hours: 7 Hours Estimated Charging Time: 5 Hours
Biometric Algorithm
SenseFP M2: ZKFingerprint V13.0 (Standard) / V10.0 (Optional)SenseFace M2F-LR: ZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
Biometric Authentication Speed
SenseFP M2: less than 1 sec (Fingerprint)SenseFace M2F-LR: less than 1 sec (Fingerprint); less than 1.2 sec (Facial Authentication)
Camera
SenseFP M2: N/ASenseFace M2F-LR: Binocular Camera @ 1MP
Card Capacity
SenseFP M2: 3,000 (1:N) (Standard)SenseFace M2F-LR: 1,000 (1:N) (Standard)
Card Type
ID Card@125 kHz (Standard) IC Card@13.56 MHz (Optional)
Certifications
ISO14001, ISO9001,CE, FCC, RoHS
Face Capacity
SenseFP M2: N/ASenseFace M2F-LR: 500 (1:N) (Standard)
False Acceptance Rate (FAR) %
SenseFP M2: FAR ≤ 0.0001% (Fingerprint )SenseFace M2F-LR: FAR ≤0.02% (Visible Light Facial Authentication) ; FAR ≤ 0.0001% ( Fingerprint )
False Rejection Rate (FRR) %
SenseFP M2: FRR ≤ 0.1% (Fingerprint )SenseFace M2F-LR: FRR ≤ 0.05% (Visible Light Facial Authentication); FRR ≤ 0.1% (Fingerprint )
Fingerprint Capacity
SenseFP M2: 3,000 (1:N) (Standard)SenseFace M2F-LR: 1,000 (1:N) (Standard)
Gross Weight
SenseFP M2: 0.99 kgSenseFace M2F-LR: 1.03 kg
Hardware
SenseFP M2: CPU: Dual Core@1GHz; RAM: 512MB; ROM: 8GB; Speaker: 8ohm @1W; Physical Keypad: 16 Keys; Fingerprint Sensor: ZK Optical Sensor; Casing color: Black and WhiteSenseFace M2F-LR: CPU: Dual Core@1GHz; RAM: 512MB; ROM: 8GB; Speaker: 8ohm @1W; Supplement Light: Yes; Physical Keypad: 16 Keys; Fingerprint Sensor: ZK Optical Sensor; Casing Color: Black and White
Installation
Wall-mount (Compatible with Asian Gang Box / Single Gang Box)
Max. User Password Length
8 Digits
Operating Humidity
10% to 90% RH (Non-condensing)
Operation System
Linux
Optional Functions
IC Card, Wi-Fi, Backup Battery
Standard Functions
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, HTTPs / SSH Backend Access, T9 Keyboard (Input)
Supported Software
Mobile App: ZKBio ZlinkCloud-based Software: ZKBio ZlinkOn-Premise Software: ZKBio Time
Touchless Biometric Recognition Distance
SenseFP M2: / SenseFace M2F-LR: 50cm to 180cm (Facial Authentication)
Transaction Capacity
150,000 (1:N)
User Capacity
SenseFP M2: 3,000 (1:N) (Standard)SenseFace M2F-LR: 1,000 (1:N) (Standard)
MODEL
SenseFP M2SenseFace M2F-LR
Display
2.8"@ TFT Color LCD Screen (320*240)
POWER SUPPLY
DC 12V 3A
Operating temperature
-5°C to 45°C
Dimensions
154 mm*138 mm*34 mm (L*W*H)
