Product Code: 9534
Brand: ZKTeco

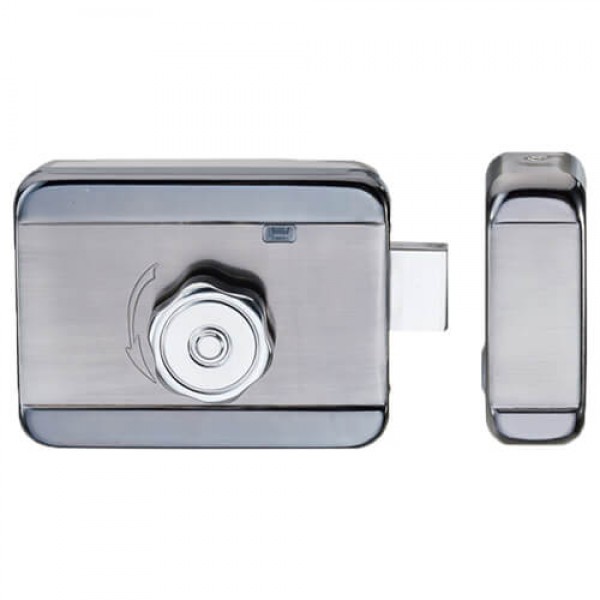

LL Series Electric Motor Lock
Specifications:
(See all)
Access Control Interface
LL-01: 2 white wire; regardless + or -LL-02: V+: positive electrode for power GND: negative electrode for power L-: negative electrode for unlock trigger L+: positive electrode for unlock triggerLL-03: V+: positive electrode for power GND: negative electrode for power L-: negative electrode for unlock trigger L+: positive electrode for unlock trigger ARM+: alarm
Dimension
LL-01: 129.8 * 105.8 * 39.2 (mm) (L*W*H)LL-02: 128 * 96 * 43(mm) (L*W*H)LL-03: 128 * 96 * 43 (mm) (L*W*H)
Electrical Impulse
OFF: lockWhen the power is off, it will lock the door. Users in the locked area can unlock the door, then the lock will stay unlocked.
Gross Weight
LL-01: 1.46kgLL-02: 1.5kgLL-03: 1.6kg
MCBF
500,000 times
Operating Current
LL-01: 2.5A ±20%LL-02: Stand-by: < 25mA Working: 450mA ±5%LL-03: Stand-by: < 25mA Working: 450mA ±5%
The electric motor lock is a new product effectively combining the advantages of traditional electric locks and electromagnetic locks and solving the problem of excessive noise of electric locks and a large amount of power consumption of electromagnetic locks.
General
Access Control Interface
LL-01: 2 white wire; regardless + or -LL-02: V+: positive electrode for power GND: negative electrode for power L-: negative electrode for unlock trigger L+: positive electrode for unlock triggerLL-03: V+: positive electrode for power GND: negative electrode for power L-: negative electrode for unlock trigger L+: positive electrode for unlock trigger ARM+: alarm
Dimension
LL-01: 129.8 * 105.8 * 39.2 (mm) (L*W*H)LL-02: 128 * 96 * 43(mm) (L*W*H)LL-03: 128 * 96 * 43 (mm) (L*W*H)
Electrical Impulse
OFF: lockWhen the power is off, it will lock the door. Users in the locked area can unlock the door, then the lock will stay unlocked.
Gross Weight
LL-01: 1.46kgLL-02: 1.5kgLL-03: 1.6kg
MCBF
500,000 times
Operating Current
LL-01: 2.5A ±20%LL-02: Stand-by: < 25mA Working: 450mA ±5%LL-03: Stand-by: < 25mA Working: 450mA ±5%
Package List
LL-01: Lock: 1 Iron key: 3LL-02: Lock: 1 Iron key: 3LL-03: Lock: 1 Iron key: 3 Digital remote control: 1(add or delete users) EM Card:1
RFID
LL-01: N/ALL-02: N/ALL-03: 125kHz EM Card
MODEL
LL-01LL-02LL-03
Door sensor
LL-01: N/ALL-02: Built-inLL-03: Built-in
POWER SUPPLY
LL-01: DC 12VLL-02: DC 12V to 18V (please select a voltage jumper of 18V, otherwise the circuit board may be damaged)LL-03: DC 12V
Operating temperature
-20°C to 60°C
