Product Code: 9574
Brand: ZKTeco

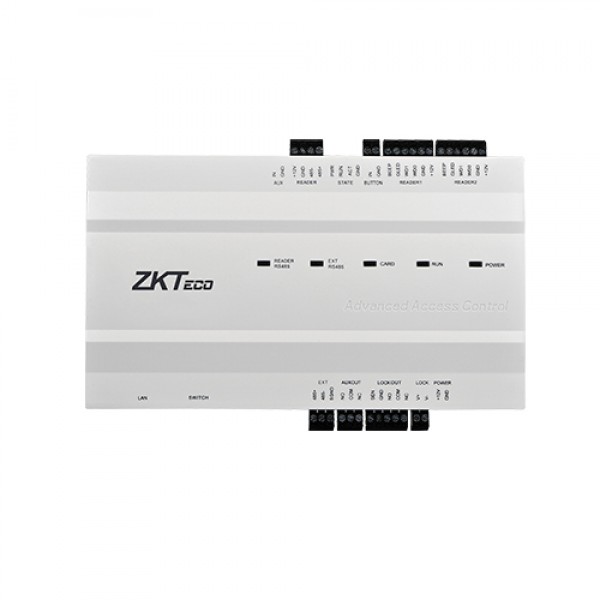

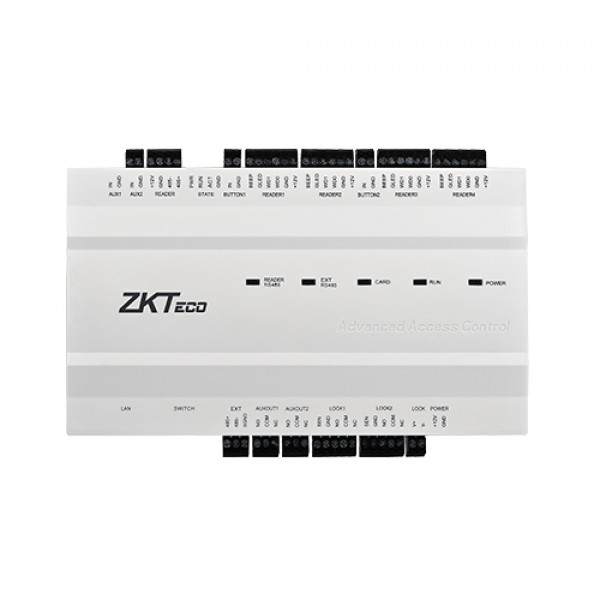

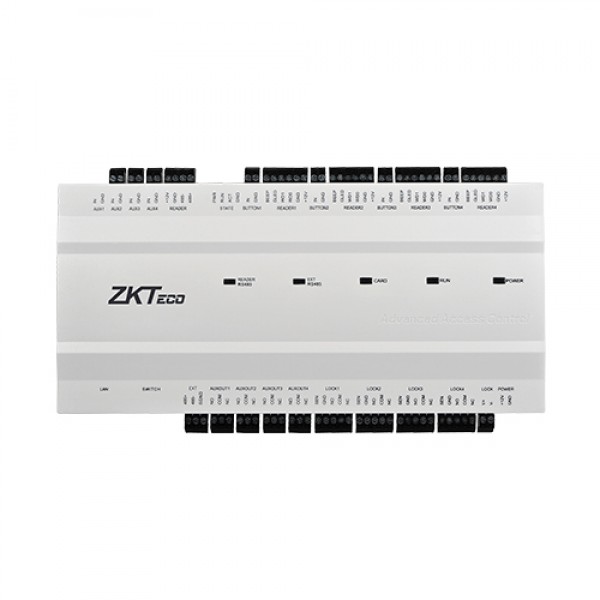

InBio Pro Plus Series
Specifications:
(See all)
Access Control Interface
Wiegand (Card Reader), RS-485(RS-485 Card Reader / Fingerprint Reader / Facial Recognition Reader / QR code Reader)
Access Point Capacity
InBio160 Pro Plus: 1 Access PointInBio260 Pro Plus: 2 Access PointsInBio460 Pro Plus: 4 Access Points
Authentication Method
Card / Password / Fingerprint / Face / QR Code
Biometric Algorithm
ZKFingerprint V10.0 / V13.0(Default)ZKLiveface 3.5 / 4
Biometric Authentication Speed
<0.3s @ Fingerprint<0.3s @ Facial
Card Capacity
100,000 (1:N) (Standard)
InBio Pro Plus Series is a project oriented, high-end product line with distinctive features, including embedded facial and fingerprint authentication, as well as advanced access control functions. Equipped with TCP/IP, it enables robust remote management and connectivity over local (LAN) and wide area networks (WAN), enhancing deployment flexibility and scalability.
Comprising the InBio160 Pro Plus, InBio260 Pro Plus, and InBio460 Pro Plus models, the system supports up to 3,000 face templates and 20,000 fingerprint templates, a maximum of 100,000 card users, and 100,000 dynamic QR code capacity.
General
Access Control Interface
Wiegand (Card Reader), RS-485(RS-485 Card Reader / Fingerprint Reader / Facial Recognition Reader / QR code Reader)
Access Point Capacity
InBio160 Pro Plus: 1 Access PointInBio260 Pro Plus: 2 Access PointsInBio460 Pro Plus: 4 Access Points
Authentication Method
Card / Password / Fingerprint / Face / QR Code
Biometric Algorithm
ZKFingerprint V10.0 / V13.0(Default)ZKLiveface 3.5 / 4
Biometric Authentication Speed
<0.3s @ Fingerprint<0.3s @ Facial
Card Capacity
100,000 (1:N) (Standard)
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
Communication
InBio160 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 2; USB: Type A (USB Drive Only) * 1; Aux Inputs * 1, Aux Outputs * 1; Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm *1 InBio260 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 2, Aux Outputs * 2; Electric Lock * 2, Door Sensor * 2, Exit Button * 2, Alarm * 2InBio460 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4, Aux Outputs * 4 ; Electric Lock * 4, Door Sensor * 4, Exit Button * 4, Alarm * 4
Dimensions (L * W * H)
InBio160 Pro Plus: 185.12 mm * 106 mm * 36.07 mmInBio260 Pro Plus: 185.12 mm * 106 mm * 36.07 mmInBio460 Pro Plus: 226 mm * 106 mm * 36.07mm

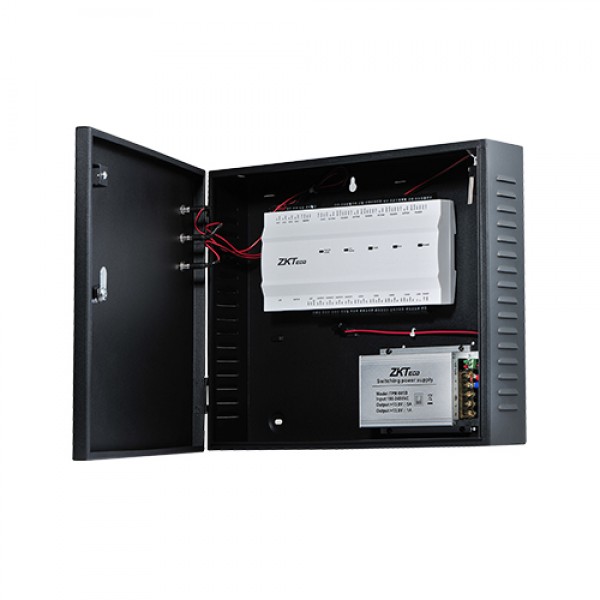

Enclosure (Optional)
InBio160 Pro Plus: Size: 350 mm * 90 mm *300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 2A;1A DC; Backup Battery: Space reserved [Backup Battery Recommended size: (L*W*H):151 x 94 x 65 mm)]; Gross Weight: 3.57 KgInBio260 Pro Plus: Size: 350 mm * 90 mm * 300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 4A+1A DC; Backup Battery: Space reserved [Backup Battery Recommended size: 151 x 94 x 65 mm(L*W*H)]; Gross Weight: 3.57 KgInBio460 Pro Plus: Size: 350 mm * 90 mm * 300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 4A+1A DC; Backup Battery: Space reserved [Backup Battery Recommended size:151 x 94 x 65 mm(L*W*H)]; Gross Weight: 3.77 Kg
Face Template Capacity
3,000 (1:N) (Standard)
Factory ID
InBio160 Pro Plus: AC02-CB11H-U10InBio260 Pro Plus: AC02-CB12H-U10InBio460 Pro Plus: AC02-CB14H-U10
False Acceptance Rate (FAR) %
FAR ≤ 0.0001% @ FingerprintFAR ≤ 0.01% @ Facial
False Rejection Rate (FRR) %
FRR ≤ 0.01% @ FingerprintFRR ≤ 0.02% @ Facial
Fingerprint Template Capacity
20,000 (1:N) (Standard)
Gross Weight
InBio160 Pro Plus: 1.004 KgInBio260 Pro Plus: 1.037 KgInBio460 Pro Plus: 1.098 Kg
Hardware
CPU: Single Core@1.0GHzRAM: 128MB; ROM: 256MB;
Installation
Supported DIN Rail mount / Wall-mount / Metal Enclosure (Optional)
IO Expansion Board Capacity
8pcs EX0808 (RS-485 connection)
Max. Card Length
Supports up to 66 bits Card Length
Model Name
InBio160 Pro PlusInBio260 Pro PlusInBio460 Pro Plus
Net Weight
InBio160 Pro Plus: 0.390 KgInBio260 Pro Plus: 0.422 KgInBio460 Pro Plus: 0.494 Kg
Number of Inputs
InBio160 Pro Plus: 1 * Exit Button, 1 * Door Status, 1 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)InBio260 Pro Plus: 2 * Exit Button, 2 * Door Status, 2 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)InBio460 Pro Plus: 4 * Exit Button, 4 * Door Status, 4 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
Number of Outputs
InBio160 Pro Plus: 1 * Form C Relay for Lock, 1* Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)InBio260 Pro Plus: 2 * Form C Relay for Lock, 2 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)InBio460 Pro Plus: 4 * Form C Relay for Lock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)
Operating Humidity
20% to 80% RH (Non-condensing)
Operation System
Linux OS
QR Code Capacity
100,000 (Static QR Code / Dynamic QR Code)
Reader Capacity
InBio160 Pro Plus: 2 * RS-485 Readers (ZKTecoRS-485 / OSDP), 2 * 26 / 34 / 66 bit Wiegand ReadersInBio260 Pro Plus: 4 * RS-485 Readers (ZKTecoRS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand ReadersInBio460 Pro Plus: 8 * RS-485 Readers (ZKTecoRS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers
Standard Functions
Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Linkage, Global Linkage, Multiple Verification Methods
Supported Software
ZKBio CVSecurity
Transaction Capacity
500,000 (Standard)
User Capacity
100,000
QR CODE
PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.Dynamic QR codes on the ZKBio CVSecurity mobile application
POWER SUPPLY
9.6V- 14.4V DC
Operating temperature
0℃ to 45℃
