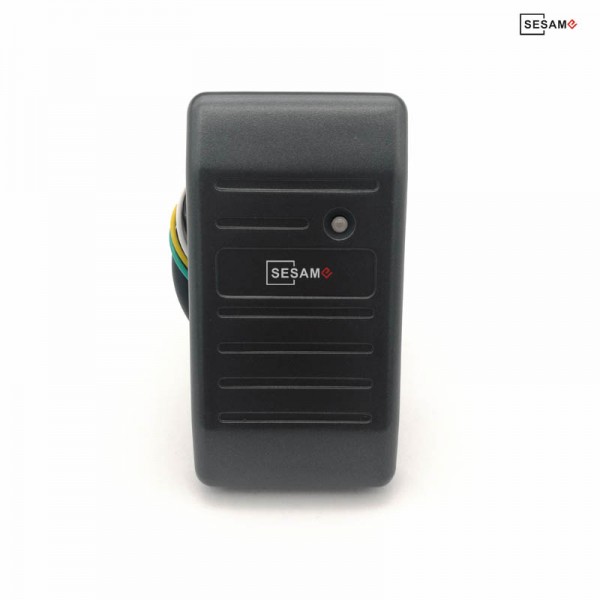

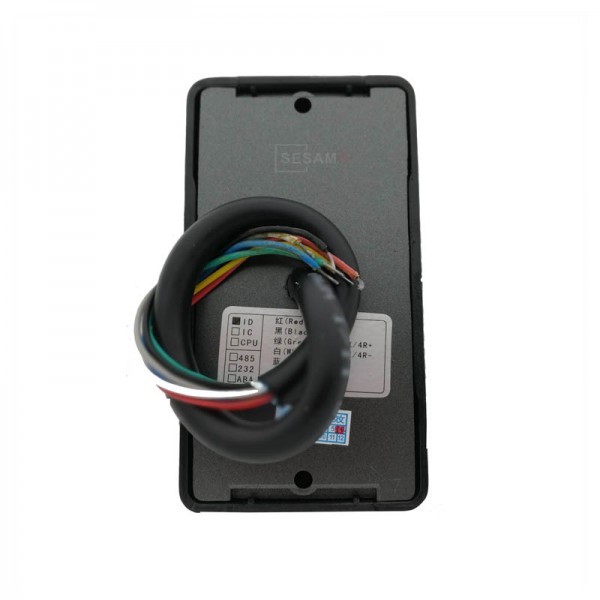

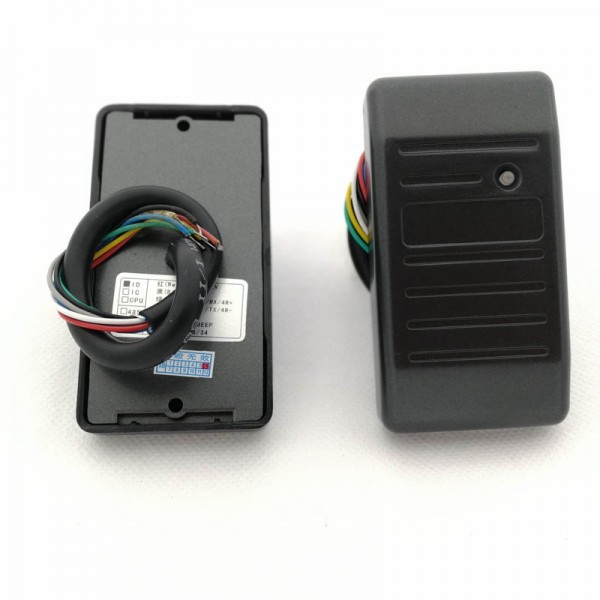

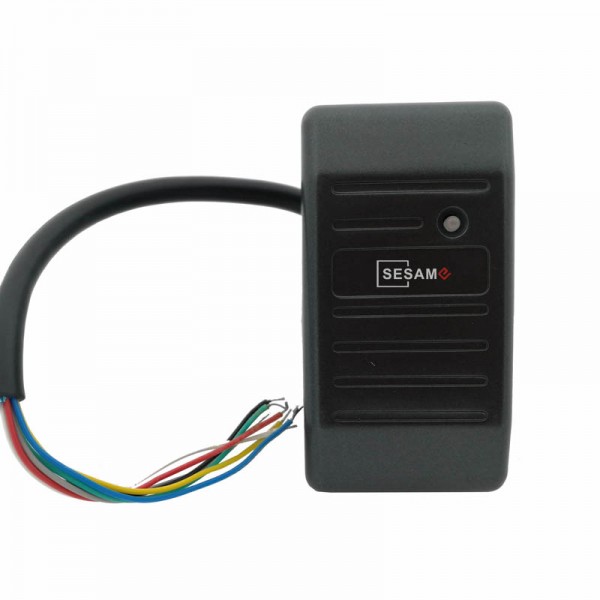

S6005BD/S6005BC

EM / IC Reader Wiegand 26,

Weatherproof (ABA Optional)

Supporting Card：EM4100 card serial number ,ISO/IEC14443A/B, ISO15693 & ISO18092

Read Distance ：> 8cm(Depending on label sizeand surroundings)

Interface ：Wiegand26/34,RS232,RS485,ABA (TVS transient pulse protection)

Power Supply：DC9V ~ 12V

Current ： <50mA

Operating Temperature ：-10ºC ~ 70ºC

Humidity ：0 ~ 95%

48mm*12.5mm*80mm

Mini Card Reader: RFID type ID access control card reader, Reading Distance is about 3-15CM; Support Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output. It's widely use for Access control, Parking lot, Campus ID, Time attendance, Hotel Management,

Features:
- Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) or Mifare 1 Card (13.56 MHz Frequency)
- Built-in Antenna
- Built-in LED (Double Color LED)
- Built-in Loud Speaker (Buzzer)
