Product Code: 8336
Brand: FingerTec
Q2i
Specifications:
(See all)
MODEL
Q2i
SURFACE FINISHING
Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER
Non-coated optical scanner
MEMORY
256 MB flash memory & 64 MB SDRAM
ALGORITHM
BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm
200 x 56 x 160
FingerTec Q2i is a premium biometrics security device with advanced time attendance and access control features suitable for medium to large organizations. Q2i can provide your company with accurate and reliable data at all times providing convenience and effectiveness all at once from one system, and it is has been made versatile with many customizable features. Connect Q2i to FCC data storage and cloud-based attendance system subscriptions, TimeTec TA to totally eliminate manual data download process for effective operation.

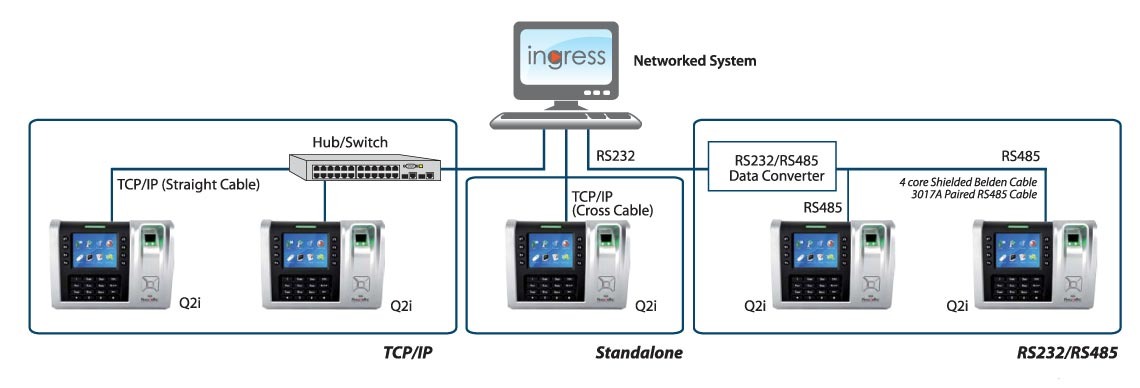

Layout Plan
System Communication
For illustration only
For illustration only

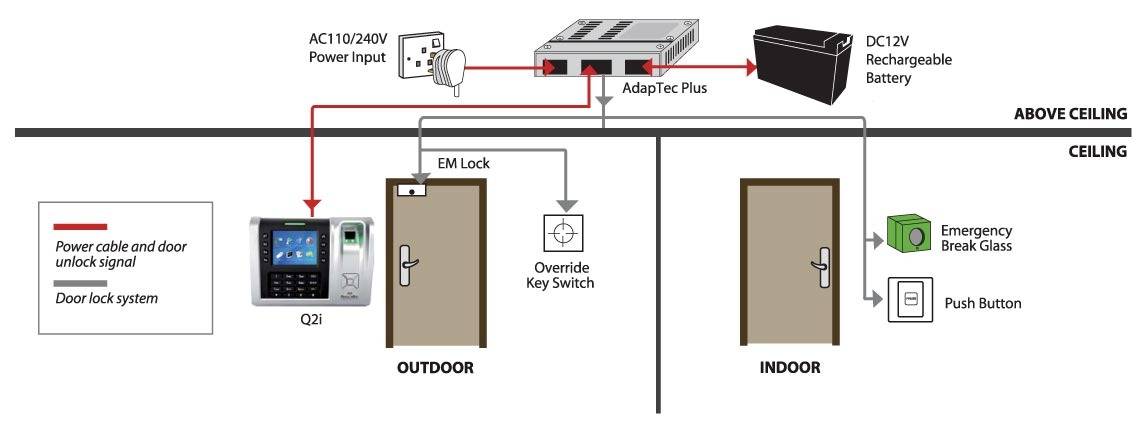

Installation Diagram
General
MODEL
Q2i
SURFACE FINISHING
Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER
Non-coated optical scanner
MEMORY
256 MB flash memory & 64 MB SDRAM
ALGORITHM
BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm
200 x 56 x 160
Methods
Fingerprint (1:1, 1:N), password
Verification time (sec)
< 1
Wiegand
26-bit input/output
Temperature (°C)
0 ~ 45
Humidity (%)
20 ~ 80
Power input
DC 12V 3A
Display
3.5” 65k colour TFT screen
Photo-ID
Yes
Fingerprint templates
10,000
PUSH TECHNOLOGY
Yes
Transaction logs
200,000
FAR (%)
< 0.0001
FRR (%)
< 1
Baud rates
9600, 19200, 38400, 57600, 115200
Siren
Built-in (Optional-External)
Work codes
Yes
Short messaging
Yes
PROCESSOR
800 MHz
Recommended fingerprint per user ID
2
Fingerprint placement
Any angle
EM lock driving output
DC12V3A/ Relay output
Alarm output
NO/NC
Anti-passback
Yes
Communications Method
TCP/IP, RS232, RS485, USB Disk
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal)and Spanish.
Other languages are available upon request.
Voice
Yes
