R2

All about product
Specification
New
Pre-Order
Product Code: 8317
Brand: FingerTec

R2

Specifications: (See all)
MODEL
R2
SURFACE FINISHING
Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER
Non coated optical scanner
MEMORY
128 MB flash memory & 32 MB SDRAM
ALGORITHM
BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm
94 x 50 x 189
Description

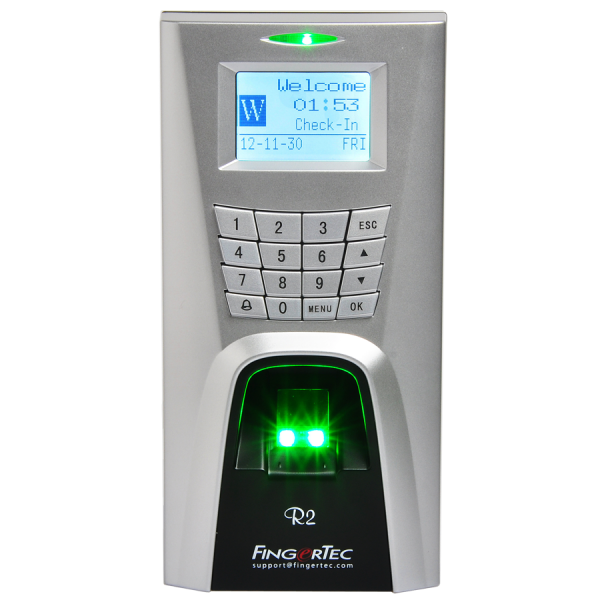

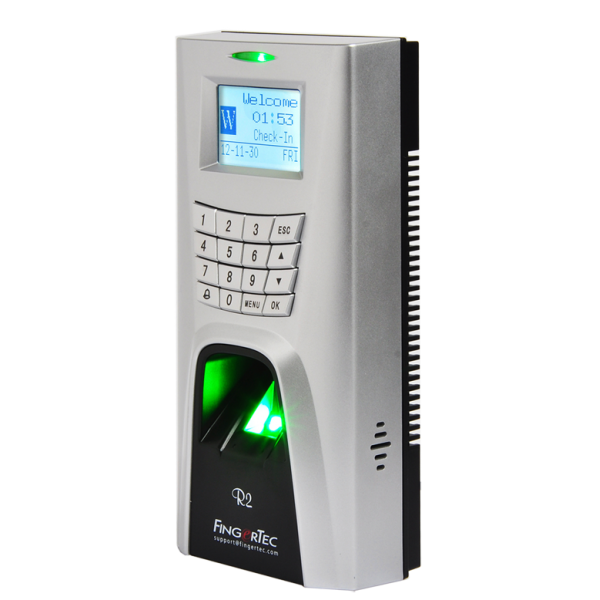

FingerTec R2 is an access control and time attendance machine, designed to manage door access security at your office premise. This biometrics verification machine flexibly supports variety of identity authentication including fingerprint and password before granting access to your restricted areas. Sleek yet user-friendly, R2 does not only provide users with aesthetic value but it also offers them convenience with the hi-tech one-fingerprint-one-second verification speed. Having R2 system in place, it heightens the level of security and automates access activities data collection simultaneously. Each activity at the machines will be instantly recorded for monitoring and audit purpose, providing you with a safer environment and intact accurate records at all times. FingerTec R2 comes with the powerful complementary software for door access and time attendance, Ingress, and its firmware is using Linux, which offers a more flexible operating system to customize features and it is more responsive in handling daily operations and data flow. Data portability in R2 has been made simple with several communication options available including TCP/IP, RS232, RS485 Cable, and USB.

Layout Plan
System Communication
For illustration only
Installation Diagram
Specifications
General
MODEL
R2
SURFACE FINISHING
Acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER
Non coated optical scanner
MEMORY
128 MB flash memory & 32 MB SDRAM
ALGORITHM
BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm
94 x 50 x 189
Methods
Fingerprint (1:1, 1:N), password
Verification time (sec)
< 1
Method
TCP/IP, RS232, RS485, USB Disk
Wiegand
26-bit input/output
Temperature (°C)
0 ~ 45
Humidity (%)
20 ~ 80
Power input
DC 12V 3A
Fingerprint templates
3,000
PUSH TECHNOLOGY
Yes
Transaction logs
120,000
FAR (%)
< 0.0001
FRR (%)
< 1
Baud rates
9600, 19200, 38400, 57600, 115200
Work codes
Yes
Greeting voice
Yes
Short messaging
Yes
PROCESSOR
400 MHz
Recommended fingerprint per user ID
2
Fingerprint placement
Any angle
EM lock driving output
DC 12V 3A / relay output
Alarm output
NO/NC
Anti-passback
Yes
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Indonesian, Traditional (Cantonese), Simplified Chinese, Vietnamese, Spanish, Portuguese (Portugal), Turkish and Persian. Other languages are available upon request.
