Product Code: 9490
Brand: ZKTeco

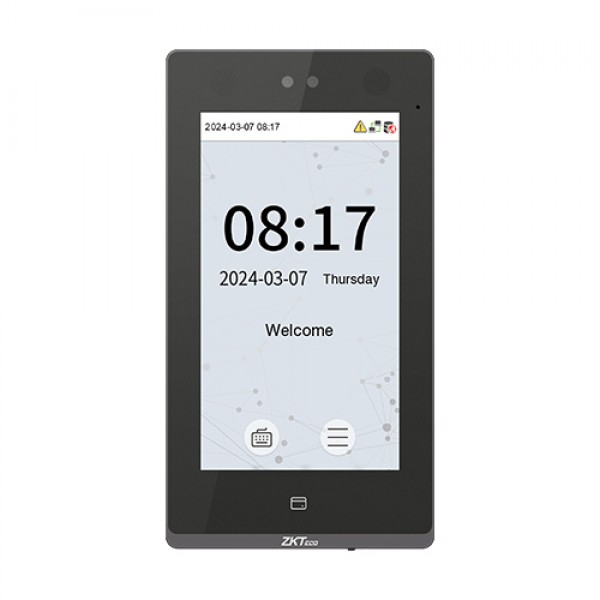

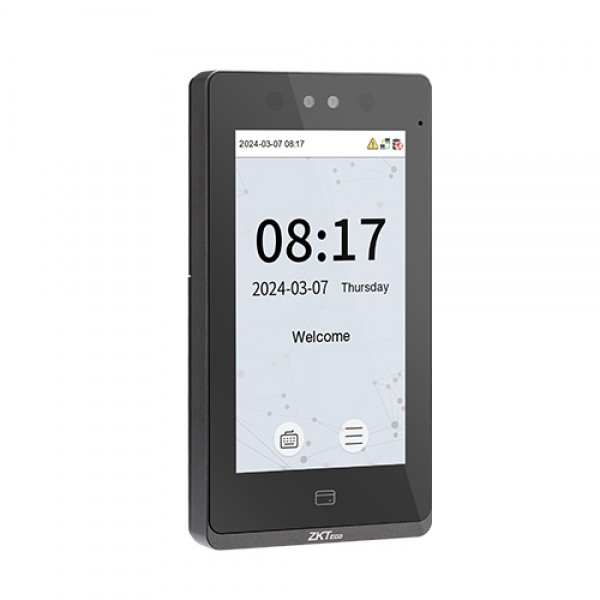

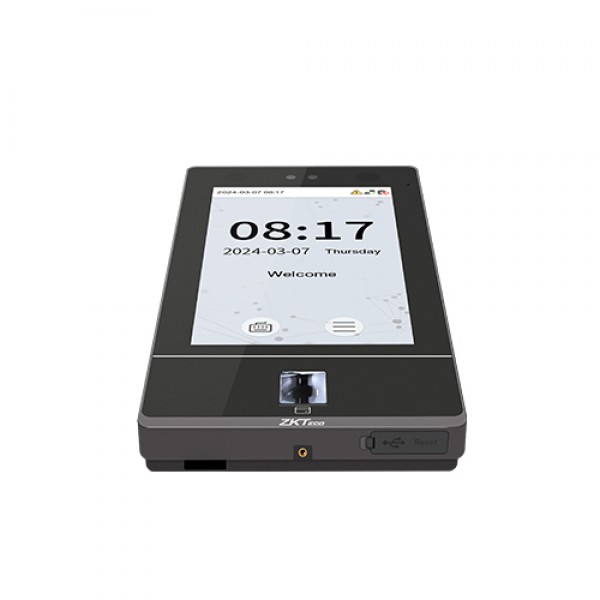

SenseFace 7 Series
Specifications:
(See all)
Access Control Interface
RS485 (RS485 Card Reader / Biometric Reader)
Authentication Method
SenseFace 7A: Fingerprint / Face / Card / Password (Virtual Keypad)SenseFace 7B: Face / Card / Password (Virtual Keypad)SenseFace 7A (Big Capacity Version) : Fingerprint / Face / Card / Password (Virtual Keypad)SenseFace 7B (Big Capacity Version) : Face / Card / Password (Virtual Keypad)
Biometric Algorithm
SenseFace 7A: ZKFace V4.0 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)SenseFace 7B: ZKFace V4.0SenseFace 7A (Big Capacity Version) : ZKFace V3.7 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)SenseFace 7B (Big Capacity Version) : ZKFace V3.7
Biometric Verification Speed
SenseFace 7A / SenseFace 7A (Big Capacity Version) : less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial Authentication)SenseFace 7B / SenseFace 7B (Big Capacity Version): less than 0.35 sec (Facial Authentication)
Camera
WDR Binocular Camera @ 1MP
Card Capacity
SenseFace 7A / 7B: 50,000 (1:N) (Standard)SenseFace 7A / 7B (Big Capacity Version) : 50,000 (1:N) (Standard)
SenseFace 7 Series adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and video attacks which offering secure biometric authentication. SenseFace 7 Series is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, SenseFace 7 Series supports multiple communication protocols, Its firmware has AC push and can convert to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink (AC module).
General
Access Control Interface
RS485 (RS485 Card Reader / Biometric Reader)
Authentication Method
SenseFace 7A: Fingerprint / Face / Card / Password (Virtual Keypad)SenseFace 7B: Face / Card / Password (Virtual Keypad)SenseFace 7A (Big Capacity Version) : Fingerprint / Face / Card / Password (Virtual Keypad)SenseFace 7B (Big Capacity Version) : Face / Card / Password (Virtual Keypad)
Biometric Algorithm
SenseFace 7A: ZKFace V4.0 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)SenseFace 7B: ZKFace V4.0SenseFace 7A (Big Capacity Version) : ZKFace V3.7 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)SenseFace 7B (Big Capacity Version) : ZKFace V3.7
Biometric Verification Speed
SenseFace 7A / SenseFace 7A (Big Capacity Version) : less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial Authentication)SenseFace 7B / SenseFace 7B (Big Capacity Version): less than 0.35 sec (Facial Authentication)
Camera
WDR Binocular Camera @ 1MP
Card Capacity
SenseFace 7A / 7B: 50,000 (1:N) (Standard)SenseFace 7A / 7B (Big Capacity Version) : 50,000 (1:N) (Standard)
Card Type
ID Card @ 125 kHz (Standard) IC Card @ 13.56 MHz (Optional)
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
Communication
TCP/IP*1Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)Wiegand (Input or Output)*1RS485: ZKTeco RS485*1USB: Type A (USB Drive Only)*1Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1
Face Template Capacity
SenseFace 7A / 7B: 10,000 (1:N)SenseFace 7A / 7B (Big Capacity Version) : 50,000 (1:N)
False Acceptance Rate (FAR) %
SenseFace 7A / SenseFace 7A (Big Capacity Version): FAR ≤ 0.01% (Visible Light Facial Authentication); FAR ≤ 0.0001% (Fingerprint)SenseFace 7B / SenseFace 7B (Big Capacity Version): FAR ≤ 0.01% (Visible Light Facial Authentication)
False Rejection Rate (FRR) %
SenseFace 7A / SenseFace 7A (Big Capacity Version): FRR ≤ 0.02% (Visible Light Facial Authentication); FRR ≤ 0.01% (Fingerprint)SenseFace 7B / SenseFace 7B (Big Capacity Version): FRR ≤ 0.02% (Visible Light Facial Authentication)
Fingerprint Template Capacity
SenseFace 7A: 10,000 (1:N) (Standard)SenseFace 7B: /SenseFace 7A (Big Capacity Version) : 50,000 (1:N) (Standard)SenseFace 7B (Big Capacity Version) : /
Hardware
CPU: Dual Core@1GHzRAM: 512MB; ROM: 8GBSpeaker: 8 ohm@1 W Microphone: *1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: -32dB / Impedance: 2.2kΩ)Supplement Light: NoFingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 7A / SenseFace 7A (Big Capacity Version))
Ingress Protection Rating
IP65 (waterproof and dustproof )
Installation
Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
Max. User Password Length
8 Digits
Net Weight
0.622 Kg
Operating Humidity
10% to 90% RH (Non-condensing)
Operation System
Linux
Optional Functions
IC Card, Wi-Fi, Wireless Doorbell
Output Contact
2
Standard Functions
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
Supported Software
On-Premise Software: ZKBio CVSecurity (AC PUSH) & ZKBio Time (TA PUSH)Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App)
Touchless Biometric Recognition Distance
30cm to 200cm (Facial Authentication)
Transaction Capacity
SenseFace 7A / 7B: 300,000SenseFace 7A / 7B (Big Capacity Version) : 300,000
User Capacity
SenseFace 7A / 7B: 50,000 (1:N) (Standard)SenseFace 7A / 7B (Big Capacity Version) : 50,000 (1:N) (Standard)
Video Intercom
Video Intercom(ZKTeco Private Protocol via TCP/lP)Support Devices:Standalone Terminal: SenseFace Series;Indoor Monitor: VT07-B01, VT07-B01-WVideo Intercom (Standard SIP Protocol)Support Devices:Standalone Terminal: SenseFace series;Indoor Monitor: VT07-B22L, VT07-B26L-W;Software: ZKBio CVSecurity, BioTalk Pro;Mobile App: ZKBio Zlink, ZKBio Zexus
MODEL
SenseFace 7ASenseFace 7B
Display
7"@ TFT Color Touch LED Screen (600*1024)
POWER SUPPLY
DC 12V 3A (Optional)
Operating temperature
-5°C to 45°C
Dimensions
SenseFace 7A / SenseFace 7A (Big Capacity Version) : 238mm * 115mm * 22.3mm (L*W*H)SenseFace 7B / SenseFace 7B (Big Capacity Version) : 214mm * 115mm * 22.3mm (L*W*H)
