SpeedFace-V3L Series

Name: SpeedFace-V3L Series
Brand: ZKTeco
Availability: InStock

All about product

Specification

New

Pre-Order

Product Code: 9483

Brand: ZKTeco

SpeedFace-V3L Series

Specifications: (See all)

Authentication Method

SpeedFace-V3L: Fingerprint / Face / Card / Password (Virtual Keypad)SpeedFace-V3L[QR]: Face / Card / Password (Virtual Keypad)SpeedFace-V3L[RFID]: Face / Card / Password (Virtual Keypad)

Biometric Algorithm

ZKFace 3.5ZKFingerprint V10.0

Biometric Verification Speed

less than 1 sec (Facial Recognition)less than 0.3 sec (Fingerprint Recognition)

Camera

Binocular Camera@ 1MP

Card Capacity

3,000 (1:N) (Optional: 10,000)3,000 (1:1) (Optional: 10,000)

Card Type

ID Card@125 kHz (Optional) IC Card@13.56 MHz (Optional)

Description

SpeedFace-V3L is an efficient Linux-based access control terminal, utilizing visible light technology for a comprehensive security management. This terminal provides dual authentication methods, including facial recognition and fingerprint verification. Also, SpeedFace-V3L is equipped with an ultimate anti-spoofing algorithm for facial recognition against all types of fake photos and videos attack.

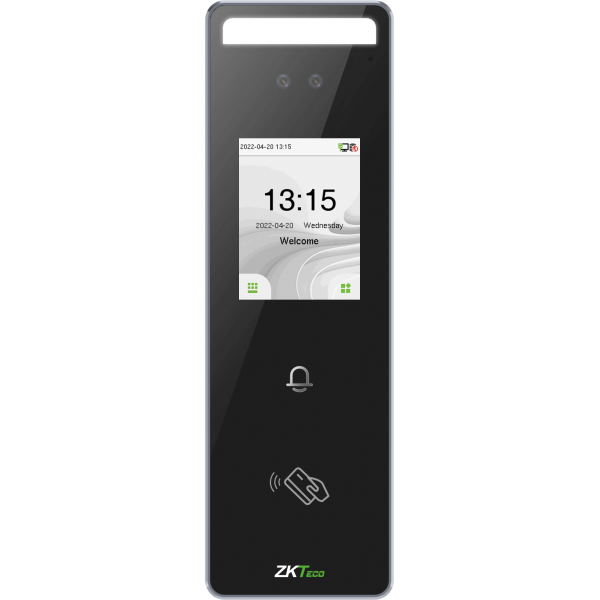

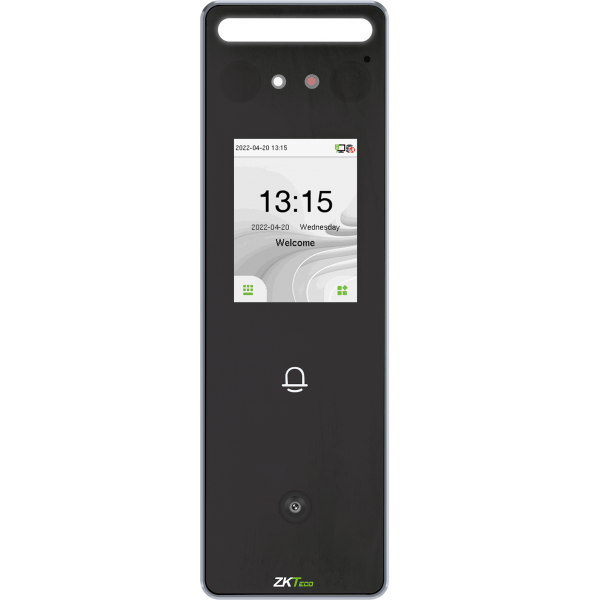

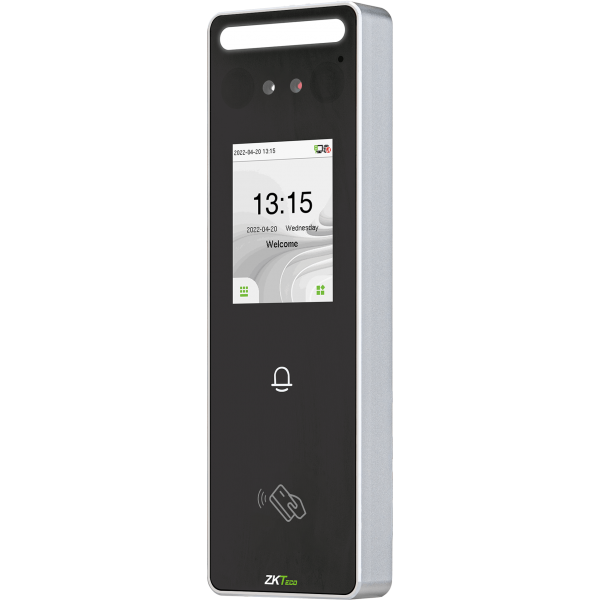

Additionally, there are different versions of SpeedFace-V3L to satisfy your needs. SpeedFace-V3L [QR] comes with a QR code module, while the SpeedFace-V3L [RFID] supports RFID cards verification function. SpeedFace-V3L series is also compatible with ZKBio CVAccess software and ZKBio Zlink Mobile APP & ZKBio Zlink-Web when switching to BEST protocol.

Specifications

General

Authentication Method

SpeedFace-V3L: Fingerprint / Face / Card / Password (Virtual Keypad)SpeedFace-V3L[QR]: Face / Card / Password (Virtual Keypad)SpeedFace-V3L[RFID]: Face / Card / Password (Virtual Keypad)

Biometric Algorithm

ZKFace 3.5ZKFingerprint V10.0

Biometric Verification Speed

less than 1 sec (Facial Recognition)less than 0.3 sec (Fingerprint Recognition)

Camera

Binocular Camera@ 1MP

Card Capacity

3,000 (1:N) (Optional: 10,000)3,000 (1:1) (Optional: 10,000)

Card Type

ID Card@125 kHz (Optional) IC Card@13.56 MHz (Optional)

Certifications

ISO14001, ISO9001, CE, FCC

Communication

TCP/IP * 1, Wi-Fi (Optional) , Wiegand Input * 1, Wiegand Output * 1, RS485*: ZKTeco RS485 * 1, Auxiliary Input, Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm * 1, Doorbell * 1

Face Template Capacity

500 (1:N) (Optional: 1,500)500 (1:1) (Optional: 1,500)

False Acceptance Rate (FAR) %

FAR ≤ 0.01% (Visible Light Facial Recognition) FAR ≤ 0.0001% (Fingerprint; ZKFingerprint V10.0)

False Rejection Rate (FRR) %

FRR ≤ 0.02% (Visible Light Facial Recognition)FRR ≤ 0.01% (Fingerprint: ZKFingerprint V10.0)

Fingerprint Template Capacity

SpeedFace-V3L: 3,000 (1:N) (Optional: 5,000), 3,000 (1:1) (Optional: 5,000)SpeedFace-V3L[QR]: /SpeedFace-V3L[RFID]: /

Gross Weight

0.8 kg

Hardware

1.2GHz Dual Core CPU, 256MB RAM/512MB ROM, 1MP monocular Camera; Adjustable LED Supplement Light

Ingress Protection Rating

IP65

Installation

Wall-mount (Compatible with Single Gang-Box)

Net Weight

0.3 kg

Operating Humidity

10% to 90% RH (Non-condensing)

Operation System

Linux

Product Mode

SpeedFace-V3L;SpeedFace-V3L[QR];SpeedFace-V3L[RFID]

Standard Functions

ADMS, DST, 14 digit User ID , Access Levels, Groups, Holidays, Anti passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods

Supported Softwares

Software: ZKBio CVAccessMobile App: ZSmartCloud Service: ZKBio Zlink

Touchless Biometric Recognition Distance

0.5m to 2m (Facial Recognition)

Transaction Capacity

200,000

Display

2.4-inch ISP LCD touch Screen (240*320)

QR CODE

SpeedFace-V3L: /SpeedFace-V3L[QR]: QR code, Bar code, PDF417 (Optional), Data matrix (Optional), MicroPDF417 (Optional), Aztec (Optional)SpeedFace-V3L[RFID]: /

POWER SUPPLY

12V 3A

Operating temperature

-5°C to 45°C

Dimensions

185*58.5*20mm (L*W*H)
