Product Code: 9485
Brand: ZKTeco

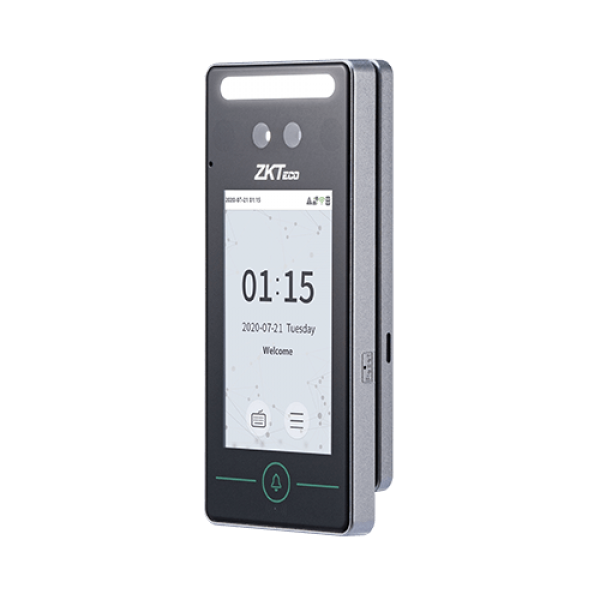

SpeedFace-V4L
Specifications:
(See all)
Authentication Method
Face / Palm (Customized) / Card / Password (Virtual Keypad)
Biometric Algorithm
ZKFace V3.9ArmaturaPalm
Biometric Verification Speed
less than 1 sec (Facial Recognition)less than 0.35 Sec (Palm Recognition)
Camera
Binocular Camera@ 2MP
Card Capacity
1,000 (Optional:2,000)
Card Type
ID Card@125 kHz (Standard)13.56MHz IC Card (Optional)HID card (Optional)Felica card (Optional)
Linux-Based Hybrid-Biometric Access Control &Time and Attendance Terminal with Visible Light Facial Recognition & Palm Recognition (Customized)
· Visible Light Facial Recognition
· Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
· Multiple verification methods: Face / Palm (Customized) / Card / Password
· Available card modules: 125kHz ID card / 13.56MHz IC card / HID card / Felica card
· Supplement light with adjustable brightness
· 1000 face templates capacity, 1000 palm templates capacity (Customized)
General
Authentication Method
Face / Palm (Customized) / Card / Password (Virtual Keypad)
Biometric Algorithm
ZKFace V3.9ArmaturaPalm
Biometric Verification Speed
less than 1 sec (Facial Recognition)less than 0.35 Sec (Palm Recognition)
Camera
Binocular Camera@ 2MP
Card Capacity
1,000 (Optional:2,000)
Card Type
ID Card@125 kHz (Standard)13.56MHz IC Card (Optional)HID card (Optional)Felica card (Optional)
Certifications
ISO14001, ISO9001, CE, FCC
Communication
TCP/IP*1, USB Host*1, Wi-Fi (Optional), Wiegand Input*1, Wiegand Output*1, RS485 *1*, 3rd-party Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm Output*1, Aux Input*1
Dimension
157.94*72.94*23 mm (L*W*H)
Face Template Capacity
1,000 (1:N) (Optional:2,000)1,000 (1:1) (Optional:2,000)
False Acceptance Rate (FAR) %
FAR ≤ 0.01% (Visible Light Facial Recognition) FAR ≤ 0.05% (ZKPalm V12.0)
False Rejection Rate (FRR) %
FRR ≤ 0.02% (Visible Light Facial Recognition)FRR ≤ 1.8% (ZKPalm V12.0)
Fingerprint Template Capacity
/
Gross Weight
0.26 kg
Hardware
900MHz Dual Core CPU; 512MB RAM / 512 MB ROM; 2MP Binocular Camera; Adjustable LED Supplement Lighting
Installation
Wall-mount
Net Weight
0.85 kg
Operating Humidity
10% to 90% RH (Non-condensing)
Operation System
Linux
Palm Template Capacity
1000 (1:N) (Customized)
Standard Functions
ID Card, ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods
Supported Software
Software: ZKBio CVAccessMobile App: ZSmartCloud Service: ZKBio Zlink
Touchless Biometric Recognition Distance
1cm to 100cm (Facial Recognition)Up to 50cm (Palm Recognition) (Customized)
Transaction Capacity
150,000
MODEL
SpeedFace-V4L
Display
4" ISP LCD Touch Screen (480*800)
QR CODE
Dynamic or Static QR codes on the ZKBio CVAccess mobile application QR code
POWER SUPPLY
DC 12V 3A
Operating temperature
0°C ~ 45°C (32°F ~ 113°F)
