Product Code: 9495
Brand: ZKTeco

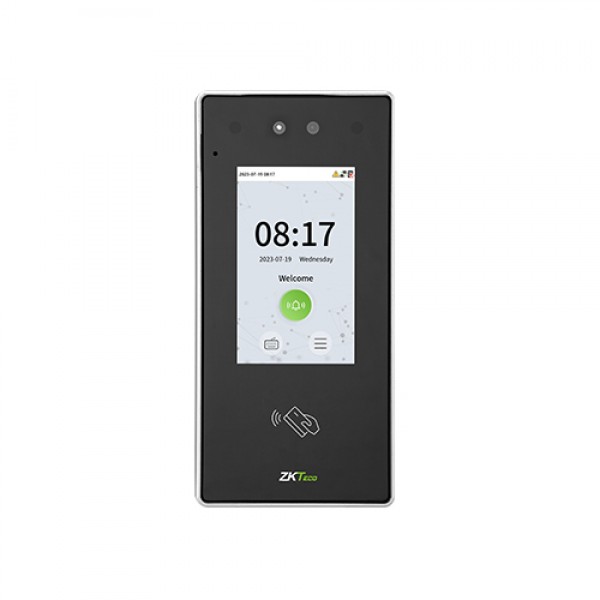

SpeedFace-V4L Pro Series
Specifications:
(See all)
Authentication Method
SpeedFace-V4L Pro: Face / Fingerprint / Card / Password (Virtual Keypad)SpeedFace-V4L Pro-QR: Face / Scramble QR Code / Card / Password (Virtual Keypad)SpeedFace-V4L Pro-RFID: Face / Card / Password (Virtual Keypad)
Biometric Algorithm
SpeedFace-V4L Pro: ZKFace V3.9 & ZKFinger V10.0SpeedFace-V4L Pro-QR: ZKFace V3.9SpeedFace-V4L Pro-RFID: ZKFace V3.9
Biometric Verification Speed
less than 0.35 second (Facial Recognition)less than 0.5 second (Fingerprint Recognition)
Camera
Binocular Camera @ 2MP
Card Capacity
3,000 (1:N) (Standard) / 10,000(1:N) (Optional)
Card Type
ID Card@125 kHz (Optional) HID Prox@125 kHz (Optional) IC Card@13.56 MHz (Optional)Felica Card@13.56 MHz (Optional)Optional Multi-Tech Module: Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency)
The SpeedFace-V4L Pro series uses intelligent engineering facial recognition algorithms and the latest computer vision technology, featuring a video intercom function. What sets the SpeedFace V4L Pro apart is its 4-inch color LED touch screen, a 2MP binocular camera, a built-in microphone, and a speaker for two-way video communication. There are two ways to use video intercom functions. Firstly, users can have a video phone through the ZSmart app when connected to the internet. Secondly, the terminal can connect the indoor station via SIP protocol.
The SpeedFace V4L Pro series can also integrate with the ZKBio CVAccess Mobile App to support Dynamic QR codes for access control or time and attendance protocols. Furthermore, the SpeedFace-V4L Pro series incorporates the ultimate anti-spoofing algorithm for facial recognition, protecting most fake photos and video attacks. The terminal also supports specialized QR modules such as QR code, PDF417, Data Matrix, MicroPDF417, and Aztec.
General
Authentication Method
SpeedFace-V4L Pro: Face / Fingerprint / Card / Password (Virtual Keypad)SpeedFace-V4L Pro-QR: Face / Scramble QR Code / Card / Password (Virtual Keypad)SpeedFace-V4L Pro-RFID: Face / Card / Password (Virtual Keypad)
Biometric Algorithm
SpeedFace-V4L Pro: ZKFace V3.9 & ZKFinger V10.0SpeedFace-V4L Pro-QR: ZKFace V3.9SpeedFace-V4L Pro-RFID: ZKFace V3.9
Biometric Verification Speed
less than 0.35 second (Facial Recognition)less than 0.5 second (Fingerprint Recognition)
Camera
Binocular Camera @ 2MP
Card Capacity
3,000 (1:N) (Standard) / 10,000(1:N) (Optional)
Card Type
ID Card@125 kHz (Optional) HID Prox@125 kHz (Optional) IC Card@13.56 MHz (Optional)Felica Card@13.56 MHz (Optional)Optional Multi-Tech Module: Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency)
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
Communication
TCP/IP*1Wi-Fi (IEEE802.1a/b/g/n/ac) @ 2.4 GHz / 5G GHzBluetooth: BLE5.0Wiegand (Input & Output)*1RS485: ZKTeco RS485*1USB: Type A (USB Drive Only)*1Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm output*1, Wired Doorbell*1
Face Template Capacity
3,000 (1:N) (Standard) / 6,000 (1:N) (Optional)
False Acceptance Rate (FAR) %
SpeedFace-V4L Pro: ≤0.01% (Facial Recognition);≤0.0001% (Fingerprint)SpeedFace-V4L Pro-QR: ≤0.01% (Facial Recognition)SpeedFace-V4L Pro-RFID: ≤0.01% (Facial Recognition)
False Rejection Rate (FRR) %
SpeedFace-V4L Pro: ≤0.02% (Facial Recognition); 0.01% (Fingerprint)SpeedFace-V4L Pro-QR: ≤0.02% (Facial Recognition)SpeedFace-V4L Pro-RFID: ≤0.02% (Facial Recognition)
Fingerprint Capacity
SpeedFace-V4L Pro: 3,000 (1:N) (Standard) / 6,000 (1:N) (Optional)SpeedFace-V4L Pro-QR: /SpeedFace-V4L Pro-RFID: /
Gross Weight
0.503 kg
Hardware
CPU: Dual Core@1GHzRAM: 1GB; ROM: 8GBSpeaker: 8 ohm@1 W Microphone: *1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: 58dB / Impedance: 2.2kΩ)Fingerprint Sensor: In-Glass Fingerprint
Ingress Protection Rating
IP65 (waterproof and dustproof)
Installation
Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
Max. User Password Length
8 Digits
Net Weight
0.453 Kg
Operating Humidity
10% to 90% RH (Non-condensing)
Operation System
Linux
Optional Functions
Wi-Fi, SRB, WorkCode, Video Door Phone, SIP Protocol, Wireless Doorbell
Standard Functions
ADMS, DST, 14-digit User ID, T9 Keyboard (Input), Photo Capture, Event Photo Capture, Record Query, Tamper Switch Alarm, Automatic Status Switch, Multiple Verification Methods, Anti-Passback, Wired Doorbell, Schedule Bell, HTTPs / SSH Backend Access, AC Push and TA Push Protocol Switch
Supported Software
Software: ZKBio CVAccessMobile App: ZKBio Zlink / ZSmartCloud Service: ZKBio Zlink
Touchless Biometric Recognition Distance
30 cm to 170 cm @Face
Transaction Capacity
200,000 (1:N)
User Capacity
3,000(1:N) (Standard) / 10,000 (1:N) (Optional)
MODEL
SpeedFace-V4L ProSpeedFace-V4L Pro-QRSpeedFace-V4L Pro-RFID
Display
4"@ TFT Color Touch LED Screen (480*800)
QR CODE
SpeedFace-V4L Pro: /SpeedFace-V4L Pro-QR: Dynamic QR codes on the ZKBioAccess Mobile Page, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projectsSpeedFace-V4L Pro-RFID: /
POWER SUPPLY
DC 12V 3A (Optional)
Operating temperature
-5°c to 45°c
Dimensions
183 mm * 88 mm * 20.5 mm (L*W*H)
