All about product
Specification
New
Pre-Order
Product Code: 8334
Brand: FingerTec
i-Kadex
Specifications:
(See all)
MODEL
i-Kadex
SURFACE FINISHING
Polycarbonate
MICROPROCESSOR
Managed by primary
MEMORY
Managed by primary
ALGORITHM
Managed by primary
PRODUCT DIMENSION (L X W X H), mm
55 x 15 x 100

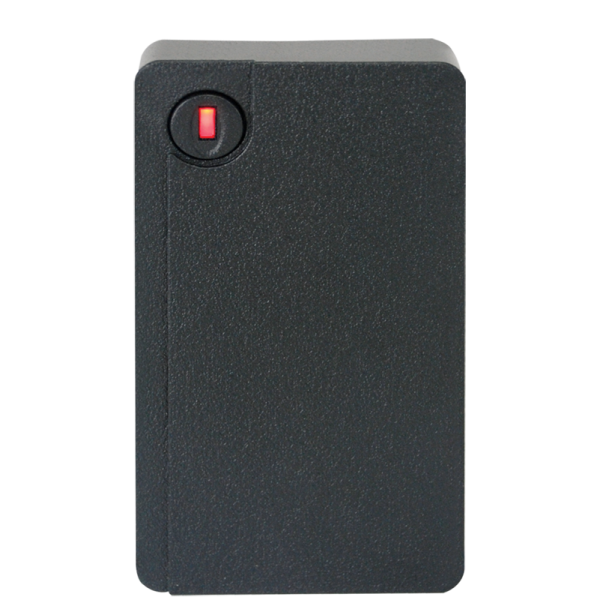

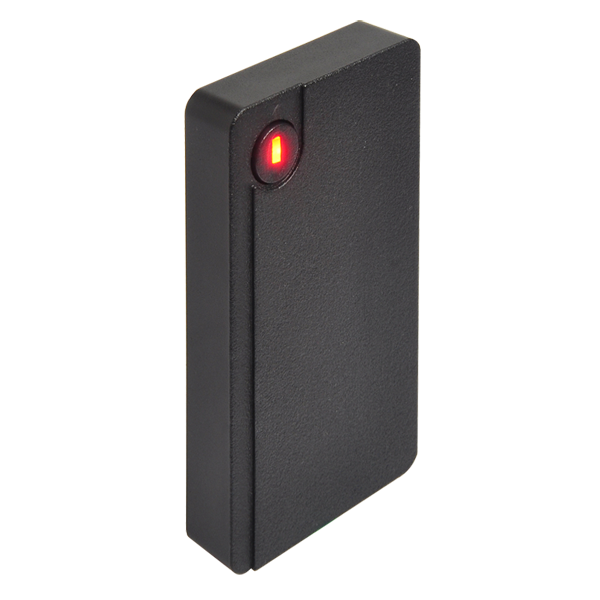

The i-Kadex is a slave reader in the Kadex series that works with a master terminal to create a complete IN-OUT access system with card functionality. Designed to be stylishly in sync with the Kadex series, the i-Kadex can be mixed and matched with any master terminal in the series, providing a more cost-effective option for an exit terminal. The i-Kadex is easy to install and manage, offering a simple yet advanced access control system for your premises.
Layout Plan

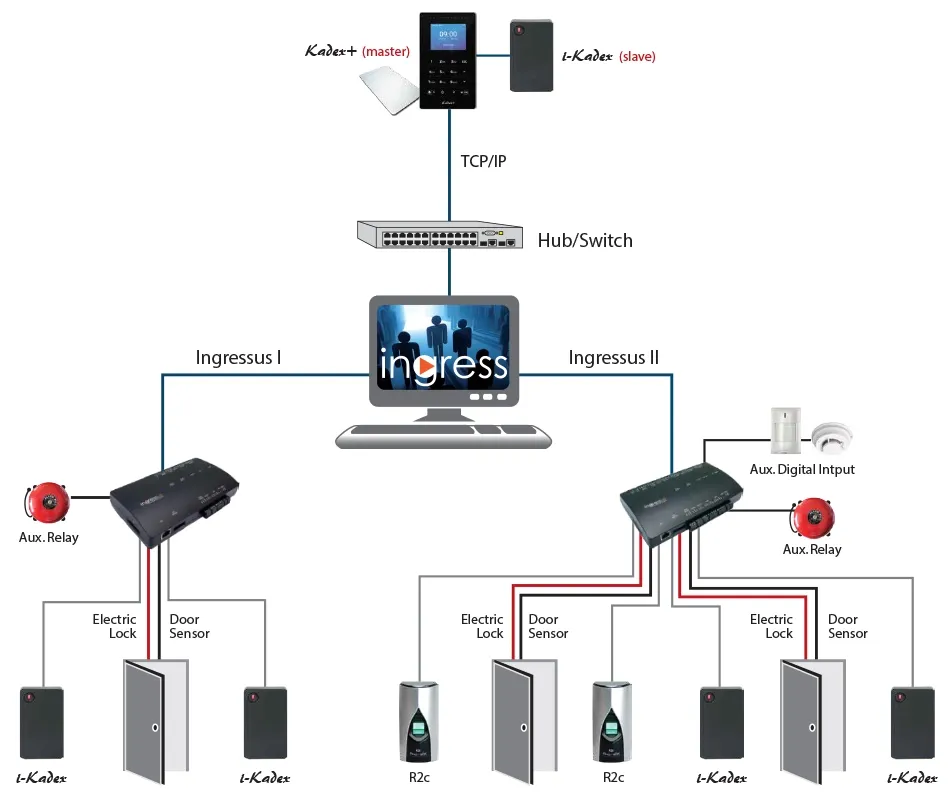

System Communication
For illustration only
For illustration only
General
MODEL
i-Kadex
SURFACE FINISHING
Polycarbonate
MICROPROCESSOR
Managed by primary
MEMORY
Managed by primary
ALGORITHM
Managed by primary
PRODUCT DIMENSION (L X W X H), mm
55 x 15 x 100
Methods
Card
Verification time (sec)
Managed by primary
Wiegand
26 bit output
Temperature (°C)
-10 ~ 70
Humidity (%)
20 ~ 80
Power input
DC 12V 1A
Transaction logs
Storage in primary
EM lock driving output
Managed by primary
Alarm output
Managed by primary
Anti-passback
Managed by primary
Communications Method
Wiegand
TYPE OF ANTENNA
RFID
Card
Storage in primary
Card per user ID
Managed by primary
Reading distance, mm
40 ~ 80 (RFID), 30 ~ 50 (Mifare)
RFID: 64-bit, 125kHz
Yes
MIFARE: MFIS50/S70, 13.56MHz
Made to order
