Ingressus IV

All about product
Specification
New
Pre-Order
Product Code: 8322
Brand: FingerTec

Ingressus IV

Specifications: (See all)
MODEL
Ingressus IV
Transactions
100,000
Power input
12V DC
Passwords
30,000
Dimension (L X W X H), mm
226 x 106 x 36
Operating temperature (°C)
0 - 55
Description

The Ingressus series controller supports access control for a 1-door (Ingressus I), 2-doors (Ingressus II) and 4-doors (Ingressus IV) environment. Users verify their identities at the relevant Wiegand or RS485 terminals readers by fingerprint, password or any combination during entry and exit. The Ingressus controllers verify users’ identities before granting them access. Transaction records are saved into its inbuilt memory and the records are sent to the software immediately for further processing. Once multiple Ingressus controllers are set up, they can be centralized via IP connection in a computer installed with the bundled Ingress software. Each Ingressus controller works independently at its access point; however the data is centralized from all Ingressus controllers to give a better and complete picture of the environment’s security level.

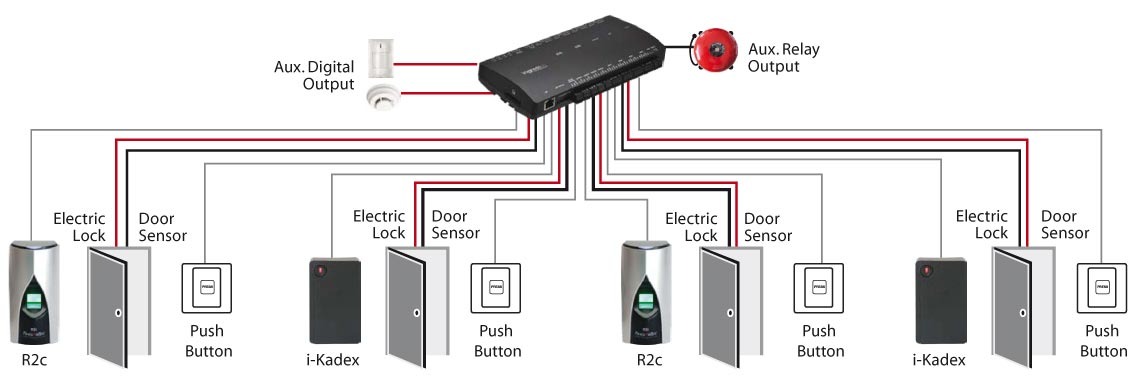

INSTALLATION DIAGRAM

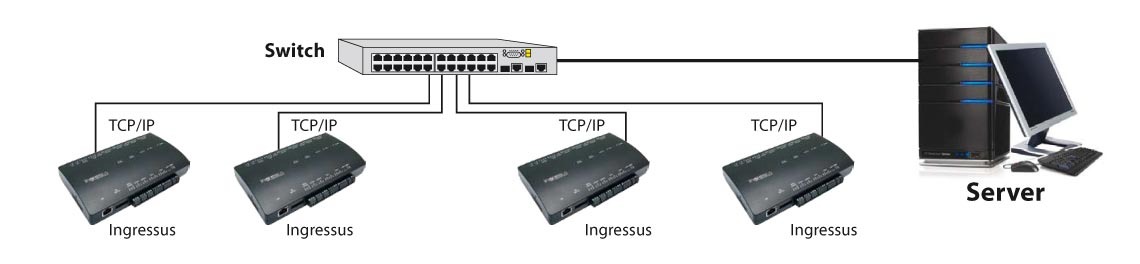

TCP/IP - Requires a switch/network hub
Specifications
General
MODEL
Ingressus IV
Transactions
100,000
Power input
12V DC
Passwords
30,000
Dimension (L X W X H), mm
226 x 106 x 36
Operating temperature (°C)
0 - 55
Operating humidity (%)
10 - 80
CPU
32-bit, 400MHz
Flash memory (MB)
128
SDRAM (MB)
32
Polarity protection
Yes
Fingerprints
3,000
Communications with server
TCP/IP
Quantity of terminal
4
Communication with terminals
4 x 26-bit Wiegand input. Each for 1 slave terminal (1 x RS485 input to support RS 485 network) (max 8 units)
Push release button
4
Door sensor
4
AUX
4
Types of AUX input supported
Motion detector, passive DIR detector, curtain passive infrared detector, pet immunity PIR detector, two beams digital active infrared detector, heat detector
Door lock (12VDC 10A form C relay)
4
AUX output (30VDC 2A form C relay)
4
Types of AUX output supported
Gas detector and compatible sensors, Piezo strobe siren, electronic siren
Main Features
Door opening time (0-999s), inter-locking (lngressus II & IV only), anti-passback (Local only), time zone (50), holiday time zone, permanent door release/ lock time zone, daylight saving time zone, continuous verification of users
Security Features
Door forced open alarm, door open time out alarm, fire linkage, duress alarm, door status and event (51 types)
