Product Code: 8323
Brand: FingerTec
Kadex+
Specifications:
(See all)
MODEL
Kadex+
SURFACE FINISHING
Glass with metal frame
MICROPROCESSOR
1GHz Dual Core CPU
MEMORY
DDR2 64M, Flash 256M
PRODUCT DIMENSION (L X W X H), mm
85 x 19.8 x 143
Methods
Card & password

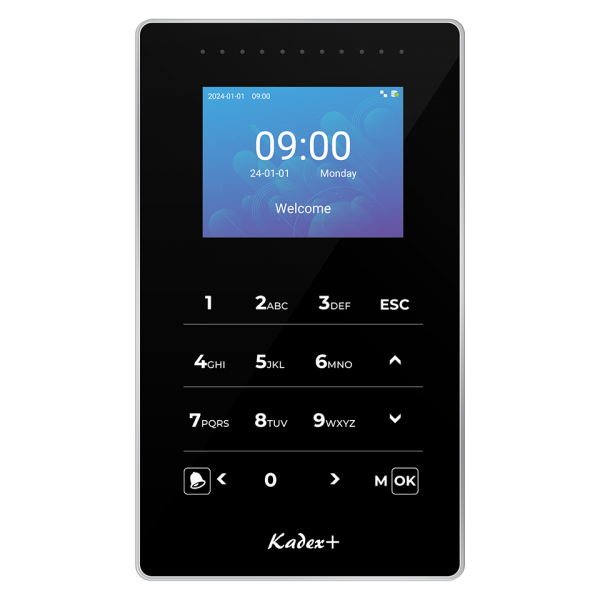

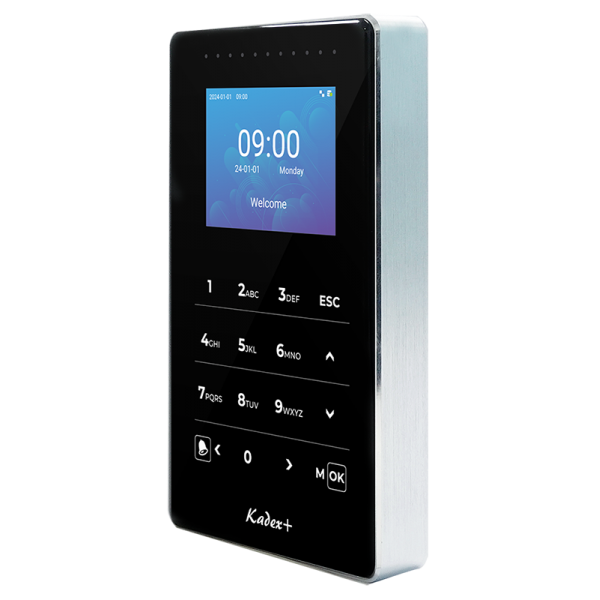

Kadex+ is a robust and reliable RFID Access Control device based on Linux, it is designed to be both IP65 waterproof and IK04 vandal-proof. Kadex+ showcases a sleek design with a metal midframe housing and a 2.4-inch LCD color screen.
Layout Plan

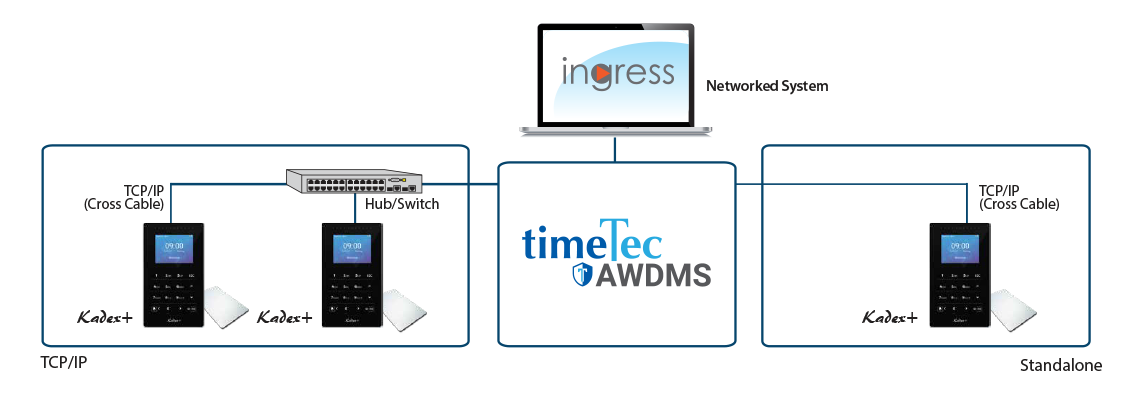

System Communication
For illustration only
For illustration only

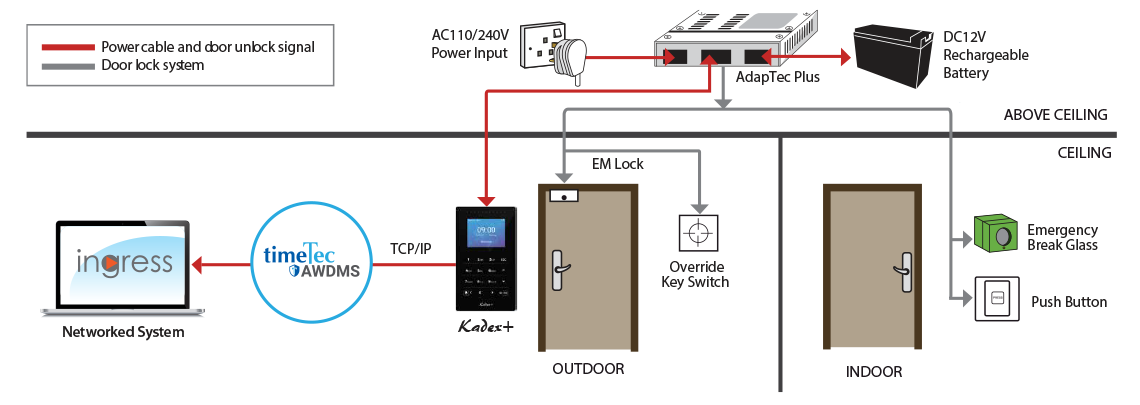

Installation Diagram
General
MODEL
Kadex+
SURFACE FINISHING
Glass with metal frame
MICROPROCESSOR
1GHz Dual Core CPU
MEMORY
DDR2 64M, Flash 256M
PRODUCT DIMENSION (L X W X H), mm
85 x 19.8 x 143
Methods
Card & password
Verification time (sec)
< 1s
Wiegand
26 to 34 bit
Temperature (°C)
-10 ~ 55
Humidity (%)
10 ~ 90
Power input
DC 12V 2A
Display
2.4” touch keypad
Alarm output/auxiliary input
Yes
PUSH TECHNOLOGY
Yes
Transaction logs
200,000
Baud rates
9600, 19200, 38400, 57600, 115200
EM lock driving output
Yes
Communications Method
TCP/IP, Wiegand (secondary reader), RS485 (secondary reader), RS232 (for printer only)
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Indonesian, Persian, Portuguese, Spanish, Traditional Chinese, Vietnamese.
Other languages are available upon request.
Voice
Yes
TYPE OF ANTENNA
RFID
Card
50,000
Card per user ID
1
Reading distance, mm
30 (RFID)
RFID: ISO 7816, 64-bit, 125kHz
Yes
MIFARE: ISO 14443-A, MFIS50/S70, 13.56MHz
Made to order
HID: HID 1326, 26-bit, 125kHz
Made to order
Exit button/door sensor
Yes
