Product Code: 9468
Brand: ZKTeco
SC405
Specifications:
(See all)
Auxiliary Interface
1ea for linkage function
Communication
TCP/IP, RS485*, USB-Host
Dimension
143 x 96 x 42mm (L*W*H)
ID Card Capacity
30,000
Interfaces for Access Control
3rd party electric lock, door sensor, exit button, alarm, doorbell
Operating Humidity
20% ~ 80%

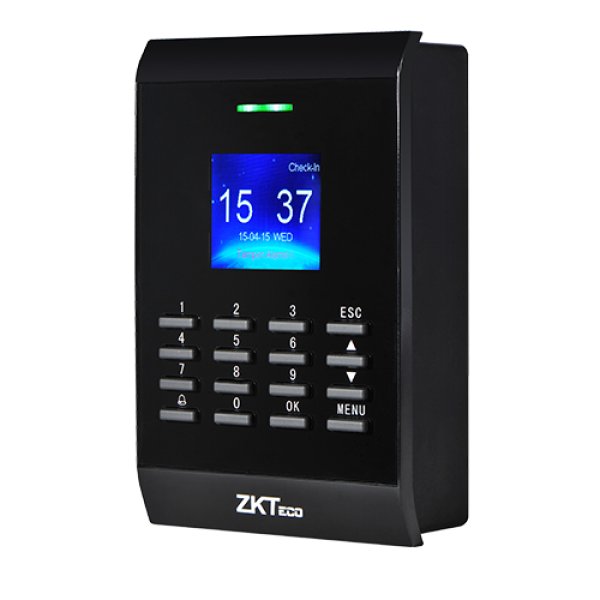

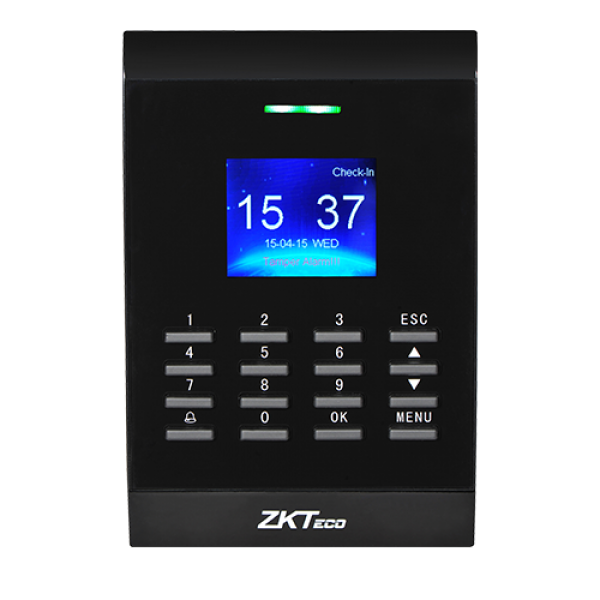

SC405 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in residential housing, offices and any other public facilities.
General
Auxiliary Interface
1ea for linkage function
Communication
TCP/IP, RS485*, USB-Host
Dimension
143 x 96 x 42mm (L*W*H)
ID Card Capacity
30,000
Interfaces for Access Control
3rd party electric lock, door sensor, exit button, alarm, doorbell
Operating Humidity
20% ~ 80%
Optional Functions
IC Card, Print Function
SDK
Standalone SDK
Standard Functions
ID Card, Automatic Status Switch, Self-Service Query, DST, 9 Digit User ID, Scheduled Bell, Anti-passback
Transaction Capacity
80,000/100,000 (For 64M)
Wiegand Signal
Output & Input, SRB
Display
TFT LCD Color Screen
POWER SUPPLY
DC 12V
SOFTWARE
ZKBio CVAccess
Operating temperature
0°C ~ 45°C
