SC800

Name: SC800
Brand: ZKTeco
Availability: OutOfStock

All about product

Specification

New

Pre-Order

Product Code: 9467

Brand: ZKTeco

SC800

Specifications: (See all)

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell

Auxiliary Interface

1 AUX input

Card Capacity

50,000 (Optional: 100,000)

Communication

TCP / IP, Wiegand, RS485 (for RS485 readers), OSDP (Ver2.1.7), RS232 (only for printer), Wi-FI (Optional)

Data Protection

AES-256 Encryption

Dimensions (L*W*D)

143*85*19.8 mm

Description

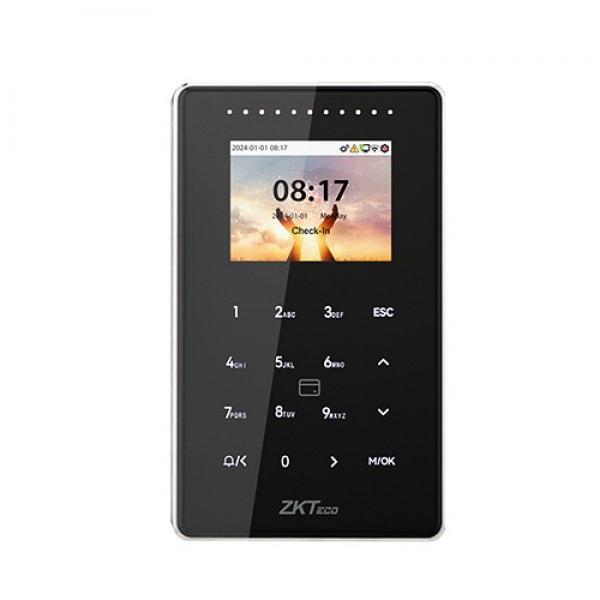

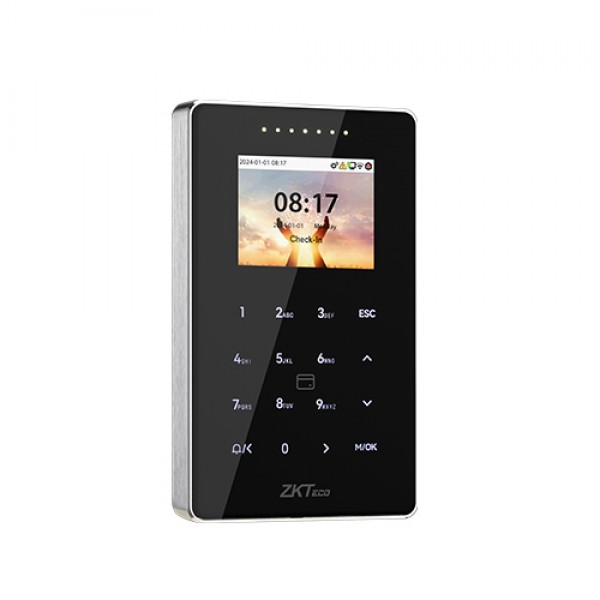

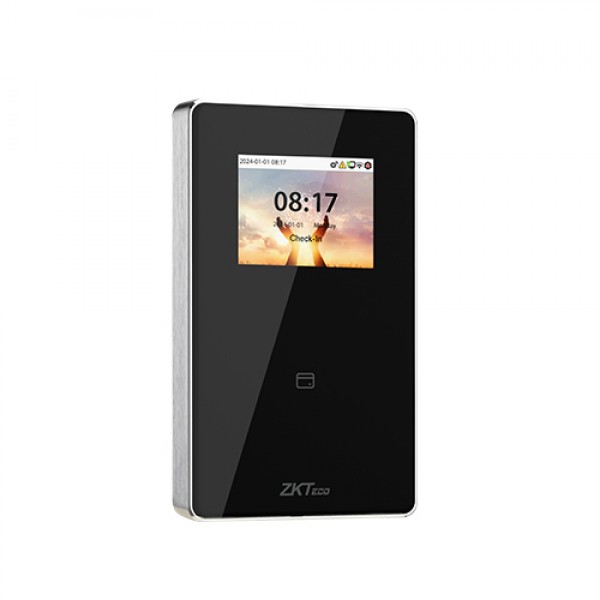

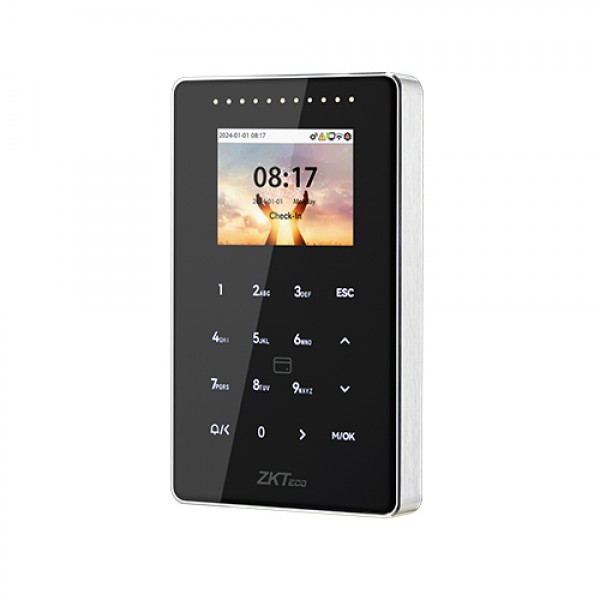

SC800 is a Linux-based and waterproof RFID Access Control terminal that is designed for outdoor application. This terminal adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof. Besides, SC800 has a 2.4 inch color screen and a hidden touch keypad to enhance the touchless unlocking experience.

SC800 offers the Multi-tech RFID module that supports 125kHz and 13.56MHz card, support HID Prox and HID iclass Multi-Tech RFID Module. In addition, SC800 supports Access Control push communication protocol and it is compatible with ZKBio CVAccess software. This terminal also includes a Wiegand Input port to connect the external proximity reader and can be act as controller's external reader using a Wiegand Output port.

Specifications

General

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell

Auxiliary Interface

1 AUX input

Card Capacity

50,000 (Optional: 100,000)

Communication

TCP / IP, Wiegand, RS485 (for RS485 readers), OSDP (Ver2.1.7), RS232 (only for printer), Wi-FI (Optional)

Data Protection

AES-256 Encryption

Dimensions (L*W*D)

143*85*19.8 mm

Hardware

1GHz Dual Core CPU, DDR2 64M, Flash 256M

Indication Light

Breathing light: White, Status light: Red / Green

Keypad

Hidden Touch Keypad

Logs Capacity

200,000 (Optional: 1,000,000)

Operating Humidity

10% to 90% RH

Operation System

Linux

Optional Functions

Wi-Fi, Multi-tech Card Module, Printer

Protocol

A & C Push (default) / T&A Push

RFID

Standard Module: ID Optional Multi-Tech Card Module: Module 1 Support ID&IC& DESFire EV1/EV2;Module 2 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox;Module 3 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox&HID iclass;

Standard Functions

ID card, Web sever, Automatic Status Switch, Self-Service Query, DST, 14 Digit User ID, Scheduled Bell, Anti-passback, HTTPS, Protocol convert (AC push to TA push)

Storage Temperature

-20°C to 60°C ( -4°F to 140°F)

Supported Software

ZKBio CVAccess

User Password

6 Digits

Wiegand Signal

Wiegand In / Out

Wired Network

10 / 100 Mbps, Auto MDI / MDI-X

Display

2.4 inch TFT LCD Color Screen

POWER SUPPLY

DC 12V 3A

Operating temperature

-10°C to 55°C (14°F to 131°F)
