All about product

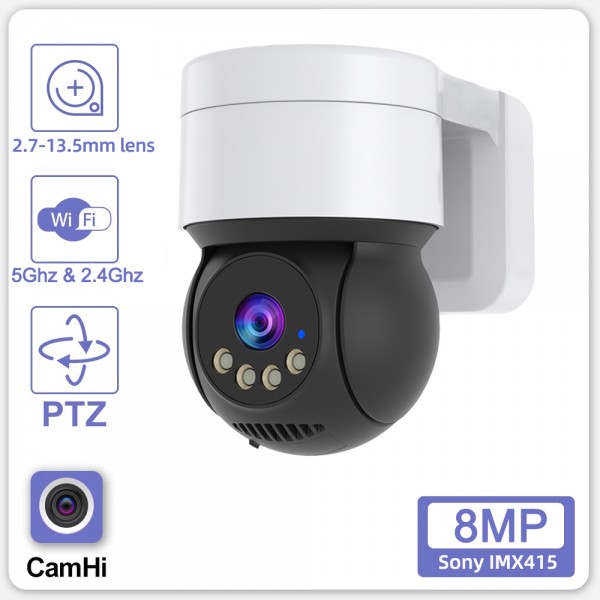

WIFI and Wired PTZ IP Camera
WIFI & Wired PTZ IP Camera（2MP/5MP/8MP）Optional
Private mold, 2 inch professional design for HD network camera, beautiful and delicate, Most
suitable for safety monitoring
Material: aluminum alloy, IP66 waterproof
H.265 compression, 4K (3840x2160), 5 megapixel (2560x1920), 2 megapixel (1920x1080);
Camera with 8pcs dual lights, 4pcs IR lights+4pcs white lights ;
PTZ camera rotate :horizontal 355 degree ,vertical 120 degree;
Support for factory dynamic domain name and third-party dynamic domain name resolution;
IR-CUT auto switch in day and night, 4mm megapixel lens or 2.7- 13.5mm auto focus zoom lens;
Preset position, cruise, limit scan, home position functions;
Horizontal 355°rotation, rotate speed 50°/ second, vertical 120°rotate, speed 40°/ second;
Will not lose internal data when power off, can manual control IR LED turn on / off;
Support 3D DNR, digital WDR, auto white balance, auto electronic shutter, auto electronic gain,
real color reproduction, high resolution image;
Support ONVIF protocol;
Support FTP server;
Support IE ,Google, Firefox browser ;
Functions: WIFI / Audio / TF Card slot (Max 128GB) ;
Support playback and download videos;

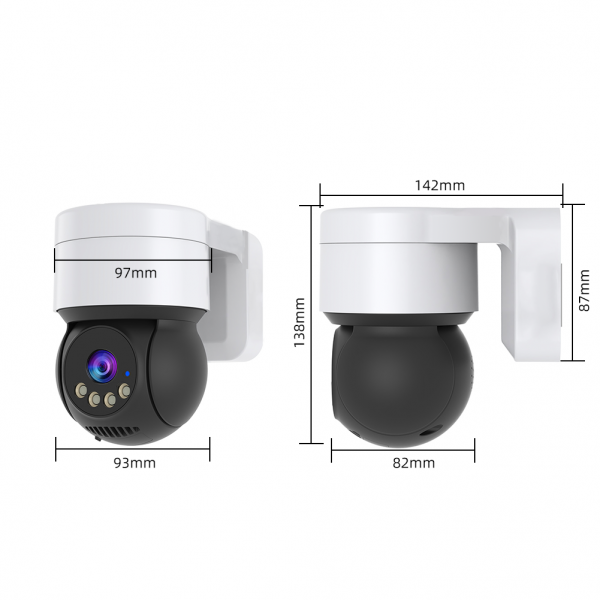

Size : 142mm×138mm×93mm ;
Model: | MU-QS2108-8MP | MU-QS2108-5MP | MU-QS2108-2MP | |
Camera | Imaging sensor | 1/2.8”Sony IMX415 | 1/2.8" Sony IMX335 | 1/2.8" SC200AI |
Chip | SSC338Q | GK7205V300 | GK7205V200 | |
Signal system | PAL / NTSC adjustable | |||
Scanning Mode | Progressive scanning | |||
Illumination | IR ON 0 lux | |||
Lens | 4mm megapixel lens or 2.7-13.5mm megapixel lens | |||
Electronic shutter | 1/25s~1/10000s; automatic | |||
Day and night switch | IR-CUT dual optical filters auto switch in day and night | |||
SNR | ≥50dB(AGC OFF) | |||
Privacy masking | Support | |||
IR source | 4pcs IR lights + 4pcs white lights | |||
Standard
compression | Image compression | H.265 | ||
Video bit rate | 32Kbps~6Mbps | |||
Audio compression | G.711 | |||
Image | Max image size | 3840x2160 (8MP) | 2560x1920 (5MP) | 1920*1080 (2MP) |
Frame rate | 1-25 fps | |||
Image adjustment | Can adjust Saturation, brightness, contrast, sharpness | |||
Image mirroring | Horizontal mirroring, vertical mirroring | |||
Scene | Auto | |||
Function | Storage | Support TF card storage (max 128GB) | ||
Audio | Microphone, speaker | |||
WIFI | Support WIFI function | |||
Alarm | Support sent pictures to email or FTP | |||
Horizontal rotation | 355 degree rotation | |||
Vertical rotation | 120 degree rotation | |||
Protocol | ONVIF 2.4 | |||
Network protocol | TCP/IP 、UDP/IP 、HTTP 、ICMP 、FTP 、EMAIL 、TELNET … … | |||
Mobile App | Support IPhone 、Android | |||
Basic parameter | Power input | DC12V | ||
Work environment | -10C ~ 50C, humidity is less than 80% (no condensation) | |||
Waterproof | IP66 | |||
