All about product
Specification
New
Pre-Order
Product Code: 8318
Brand: FingerTec
R3
Specifications:
(See all)
MODEL
R3
SURFACE FINISHING
In-mould labelling (IML), polycarbonate (PC) & acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER
Non-coated optical scanner
MEMORY
256 MB flash memory & 32MB SDRAM
ALGORITHM
Biobridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm
78 x 32 x 190

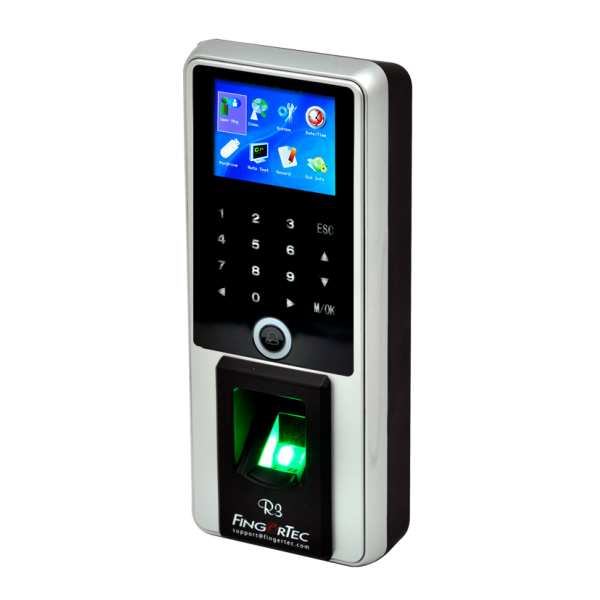

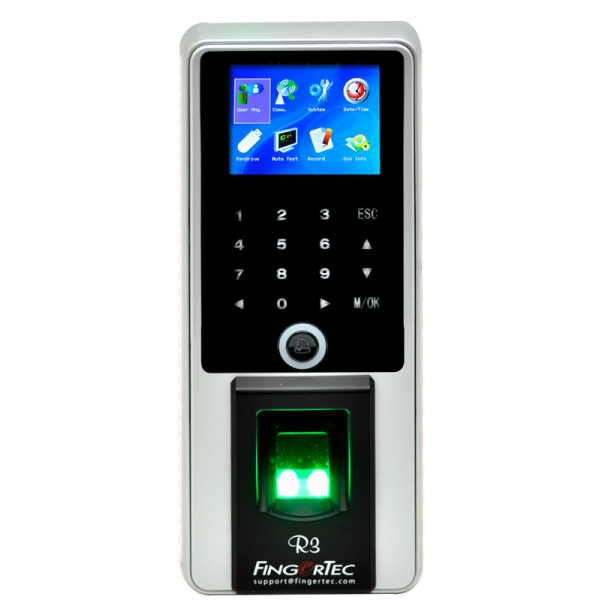

R3 is the latest biometrics door access and time attendance product from FingerTec, which combines modern technologies, great design and amazing functions in one. This machine features an eye-catching 2.4” color LCD and intuitive touch-panel; made robust to stand the wear and tear of everyday use. Multiple methods of verification which include fingerprint and password are available in R3, providing convenience at its best to busy users. The product comes bundled with Ingress, the perfect door access solution that is loaded with great door access features and comprehensive time attendance features, all without additional charges. With R3, life gets more exciting and secured with keyless door access solution for your life’s convenience.
Layout Plan
System Communication
For illustration only
For illustration only
Installation Diagram
General
MODEL
R3
SURFACE FINISHING
In-mould labelling (IML), polycarbonate (PC) & acrylonitrile butadiene styrene (ABS)
TYPE OF SCANNER
Non-coated optical scanner
MEMORY
256 MB flash memory & 32MB SDRAM
ALGORITHM
Biobridge VX 10.0
PRODUCT DIMENSION (L X W X H), mm
78 x 32 x 190
Methods
Fingerprint (1:1, 1:N), password
Verification time (sec)
< 1
Wiegand
26-bit input / output
Temperature (°C)
0 ~ 45
Humidity (%)
20 ~ 80
Power input
DC 12V 3A
Display
2.4” 3k colour LCD
Photo-ID
Yes
Fingerprint templates
3,000
PUSH TECHNOLOGY
Yes
Transaction logs
100,000
FAR (%)
< 0.001
FRR (%)
< 1
Baud rates
9600, 19200, 38400, 57600, 115200
Work codes
Yes
Greeting voice
Yes
Short messaging
Yes
PROCESSOR
400 MHz
Recommended fingerprint per user ID
2
Fingerprint placement
Any angle
EM lock driving output
DC12V 3A / relay output
Alarm output
NO/NC
Anti-passback
Yes
Passwords
10,000
Communications Method
TCP/IP, RS232, RS485, USB Disk
VOICE / DISPLAY LANGUAGE (TERMINAL)
English (Standard), Arabic, Chinese (Simplified/Traditional), Indonesian, Portuguese (Portugal) and Spanish.
Other languages are available upon request.
