All about product

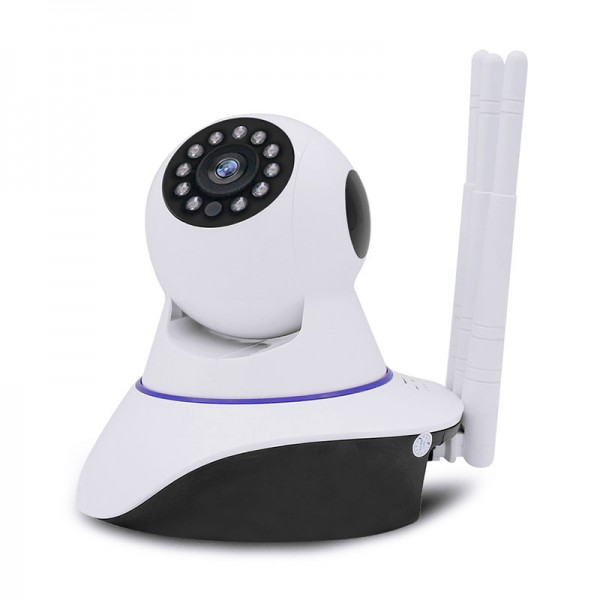

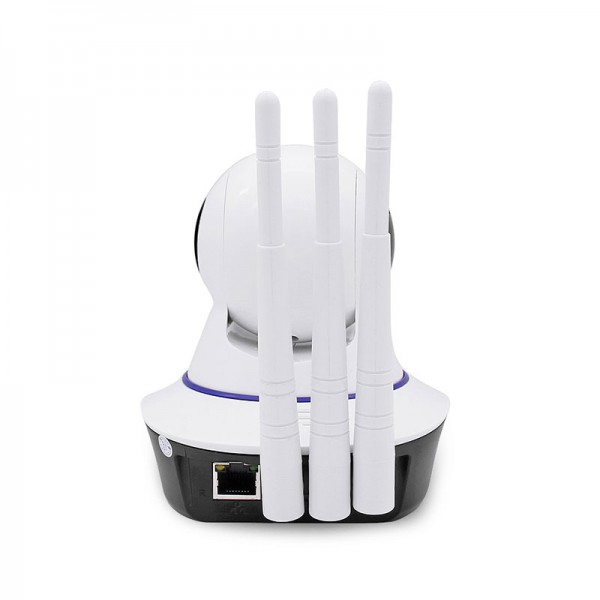

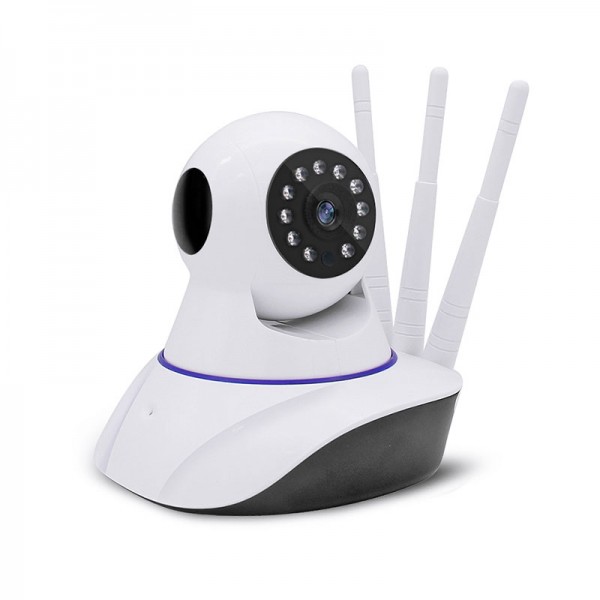

MV-P311
Product function
◆Support P2P cloud technology, Remote monitor without the need for complex settings.
◆The device has a ID number, no application and binding free DDNS domain name！
◆Support mobile phones and computers at the same time remote monitoring, Can realize two-way voice intercom.
◆Support wireless control, with PTZ control, 355 degrees and 120 degrees vertical, no blind area monitoring
◆Mobile phone support IOS / Android, system language support: Chinese, English, traditional, Russian, Spanish, French, Korean and other kinds of.
◆Low illumination 0.3 LUX, 11 pcs LED lights, IR distance of 15 meters
◆Support for mobile detection alarm: can be set to send alarm pictures and video to the designated mailbox and FTP server
◆PC client CMS software, you can management and monitoring of multiple devices.
◆Support TF memory card storage, maximum capacity support: 64G
◆Built in microphone and speaker, super perfect listening
◆Multiple users simultaneously watch online, the maximum number of up to 10 people at the same time online watch
Application range
The product is widely used in the family, shops, warehouses, operating room, office and other places. The product is exquisite, simple installation, convenient, can remote monitoring and intercom, let love whenever and wherever possible!
Model | MV-P311S | MV-P311H | MV-P311F | |
Main chipset | GM8135+1145 | GM8135+1135 | GM8135+2135 | |
Maximum resolution | 720P | 960P | 1080P | |
operating system | Embedded LINUX operating system | |||
Compression standard | H.264 | |||
Imag sensor | 1/4" 1.3MP OV9712 CMOS 3.6mm/F1.6 | |||
Video mode | Manual recording, alarm recording, time recording | |||
Low illumination | 0.3 LUX | |||
Image Frame Rate | 25FPS ，1.3MP:1280*960 | |||
Wireless Alarm | NO | YES | ||
Wireless function | Built-in wireless WIFI module, support for 802.11b / g / n | |||
Audio input | Built in 45dB microphone | |||
Audio output | Built in 8Ω, 1.5 Wspeakers | |||
Movement Detection | Movement detection can trigger an alarm (external alarm / | |||
PTZ | 355 degrees and 120 degrees vertical | |||
Storage | TF memory card storage, maximum capacity :64G | |||
Night vision | Using IR CUT dual filter, automatic switching day and night,10 Φ5mm LED lights, 11 pcs LED lights, IR distance of 15 meters | |||
Mobile monitoring | IOS、Android | |||
Network protocol | TCP/IP,UDP,P2P,IMCP,SMTP,HTTP,FTP,DNS,DDNS DHCP,PPPoE etc. | |||
Power | 3W | |||
Packing size | 177（L）*157（D）*103(H) MM | |||
Weight | 300g | |||
Power supply | DC 5V/2A | |||
